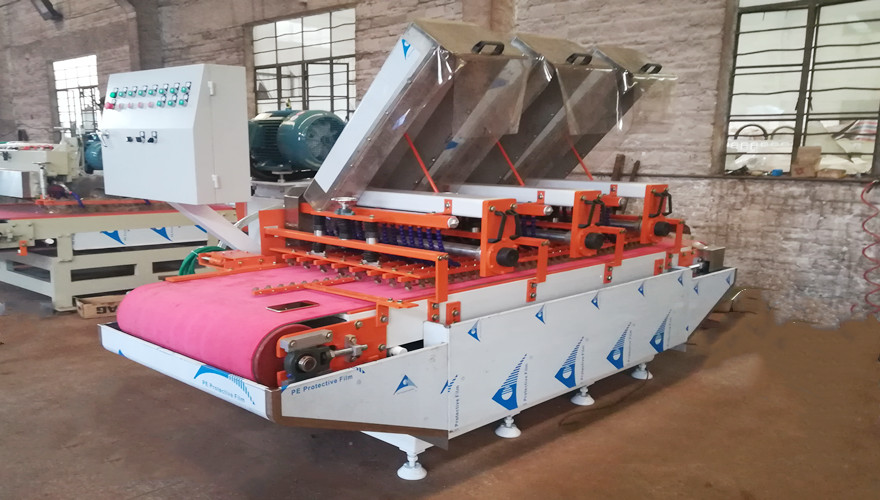

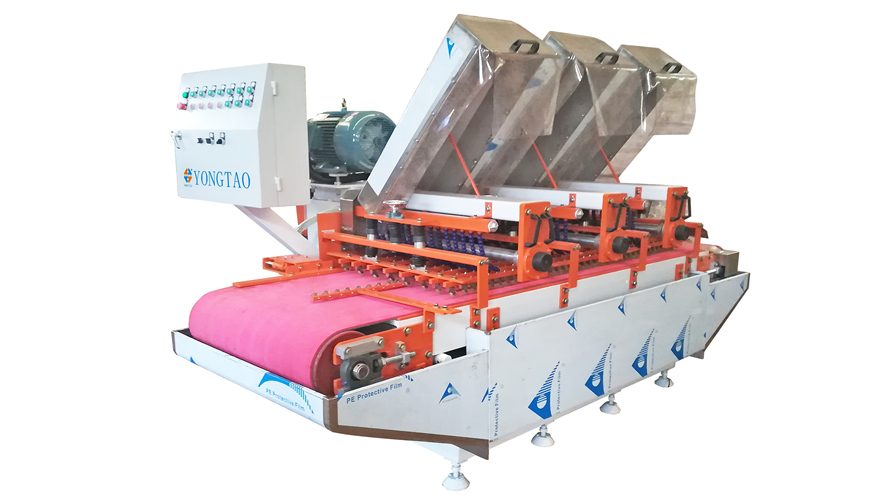

YTQZ-B/3-800 Three Spindle Wet Ceramic Tile Cutter
Description of YTQZ-B/3-800 Three Spindle Wet Ceramic Tile Cutter

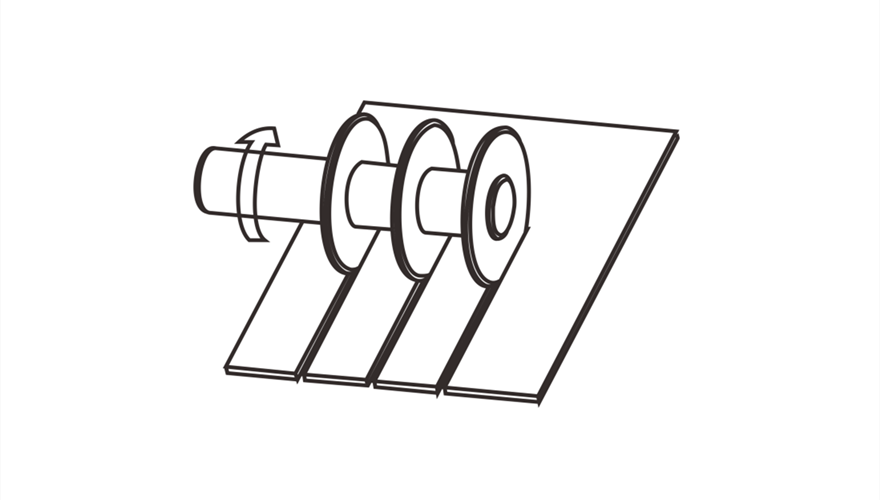

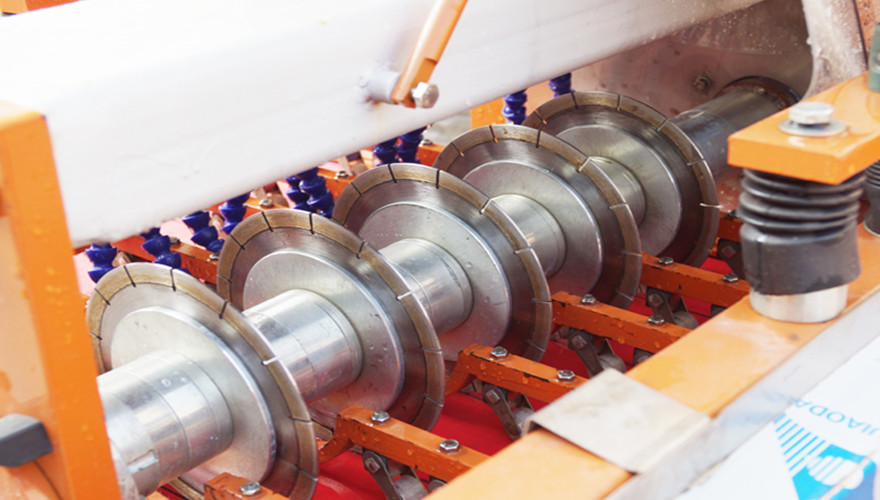

YTQZ-B/3-800 Three Spindle Wet Ceramic Tile Cutter. This is three spindle Ceramic Cutting Machine,it is specialized to cut tile strips.It can install 7-8 blades on each spindle,which can cut the tile into several strips in one time. For example,cut 800x800mm tiles,it can install 7pcs of blades,and cut into 10pcs of 98x100 strips.It is suit for producing ceramic tile skirting.For this machine, it also can install chamfer wheels in the first spindle,and install blades on the last two spindles,in this way,the tiles can be chamfer edge and cutting at the same time,to improve the cutting effect.
Automatic Wet Tile Cutting Machine:
Features of YTQZ-B/3-800 Three Spindle Wet Ceramic Tile Cutter
(2) Three times cutting can assure high speed and less edge-crack.

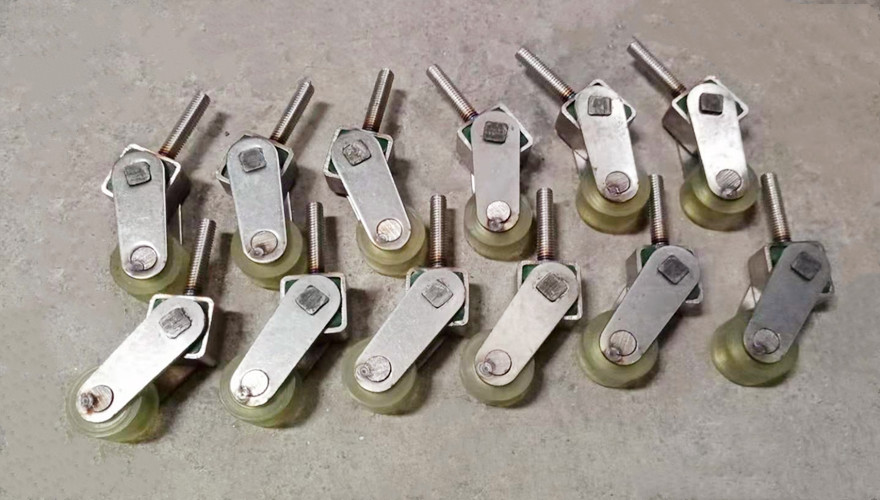

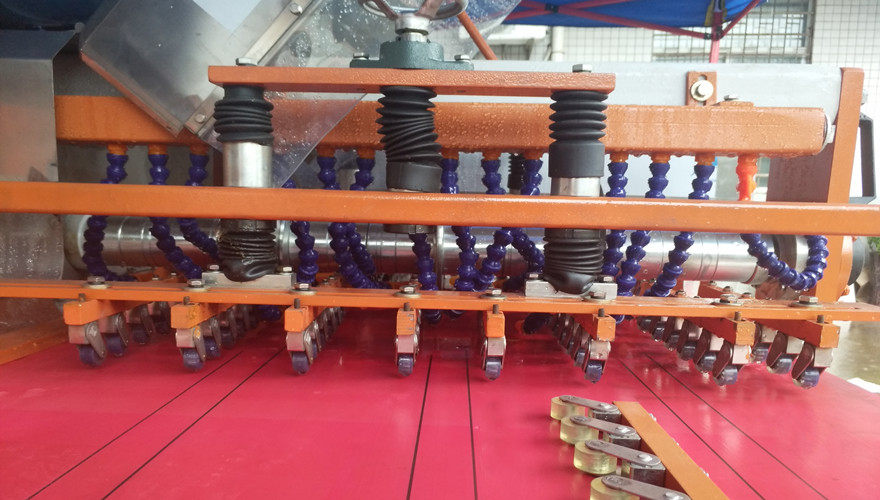

(3) V-guide of the conveyor belt keeps the belt running with high precision.
(4) Spindle bearing block cooled by water-cooling equipment assures long time continuous cutting without being overheated.
Parameter of YTQZ-B/3-800 Three Spindle Wet Ceramic Tile Cutter
No. | Name | Parameter |
1 | Nos. Of cutting head | 3pc |
2 | Width of conveyor belt | 820mm |
3 | Dia. Of blade | Φ150-300mm*60mm |
4 | Main motor power | 15kw |
5 | Conveyor motor | 0.75kw |
6 | Speed of conveyor | 0.8-4.0m/min |
7 | Lifter motor | 0.75kw |
8 | Cutting width | 20-800mm |
9 | Max. Cutting thickness | 20mm |
10 | Total power | 49kw |
11 | Size of machine | 2.9*1.78*1.63m |
12 | Weight | About 2200kg |
13 | Water consumption | 500L/min |
We have wet tile cutter for sale and we can provide you with professional wet tile cutter and best wet tile cutter.
-
