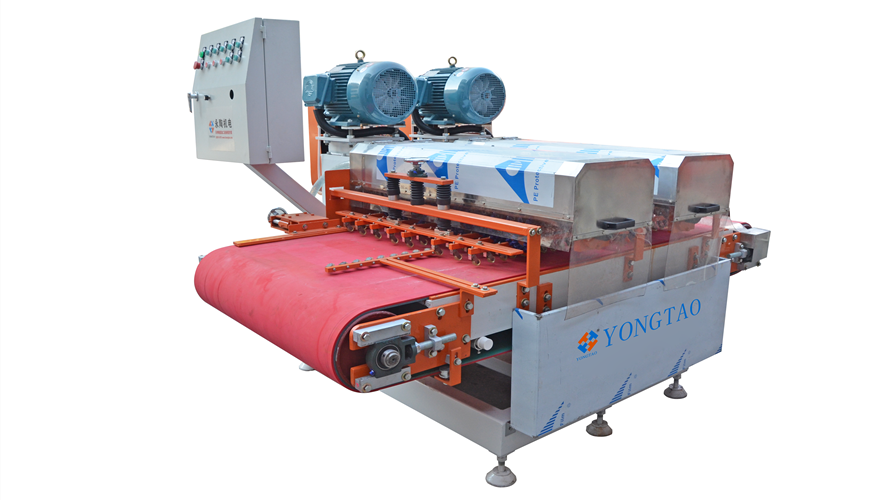

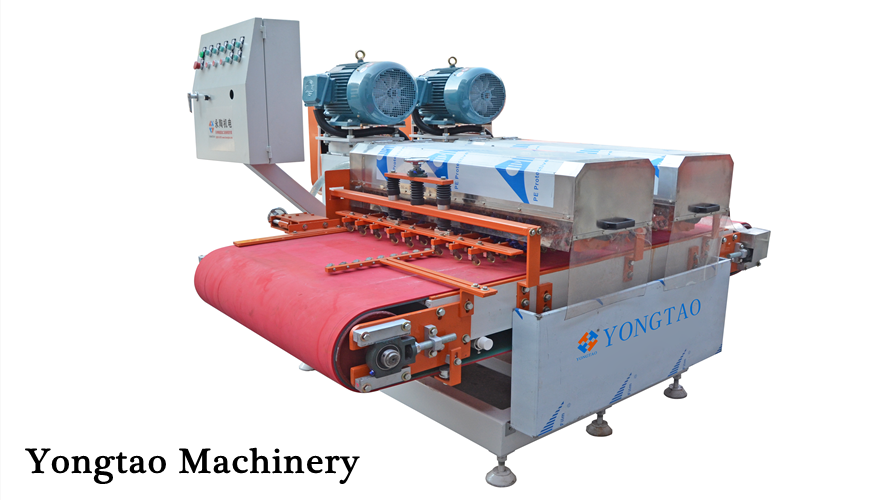

YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter

YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter

ceramic tile cutting machine-YONGTAO Machinery
YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
  • YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
  • YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
  • YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
  • YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
  • YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
  • YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
Description of YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter

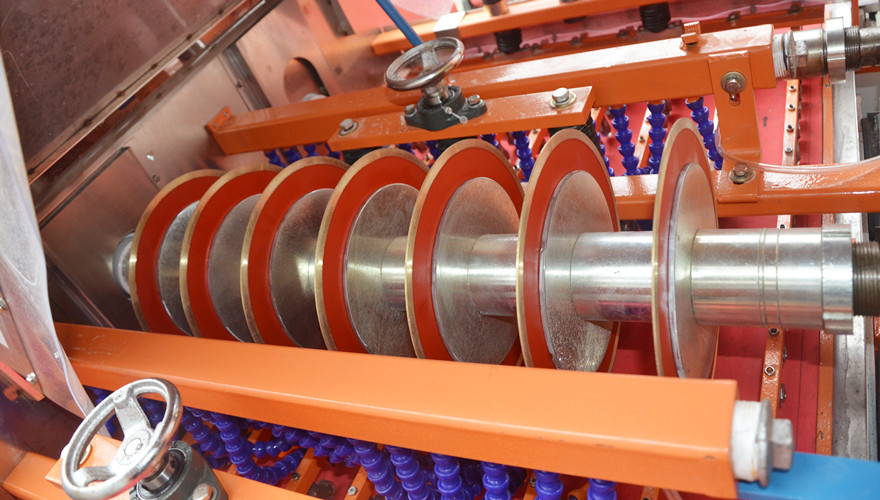

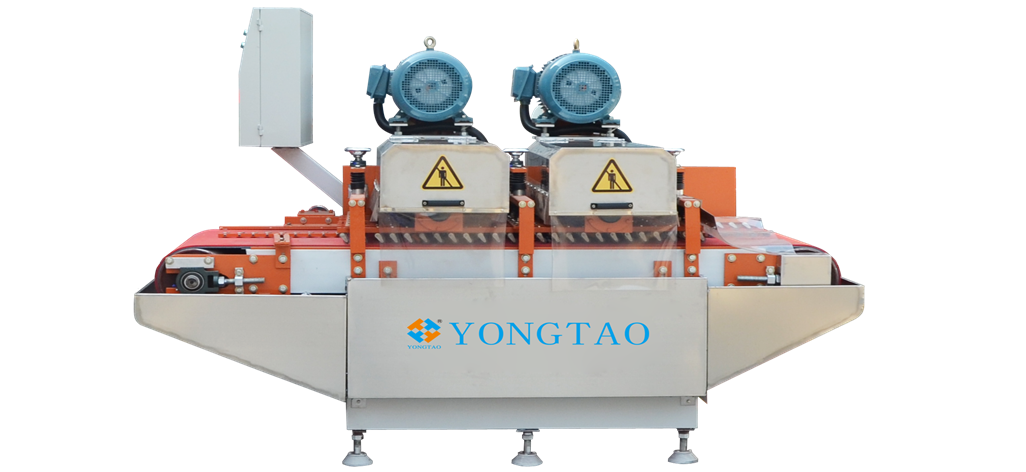

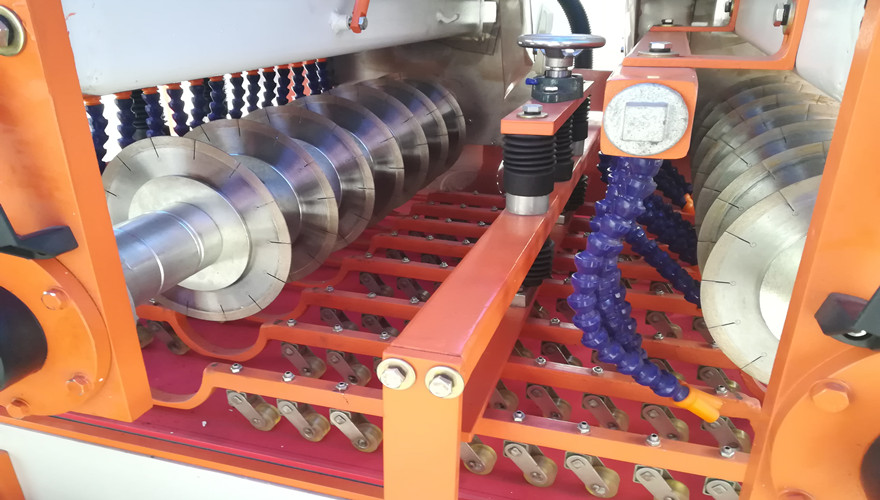

YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter. This is two spindle Ceramic Cutting Machine,it is specialized to cut tile strips.It can install 7-8 blades on each spindle,which can cut the tile into several strips in one time.For example, cut 800x800mm tiles,it can install 7pcs of blades,and cut into 10pcs of 98x100 strips.It is suit for producing ceramic tile skirting.

Features of YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
(1) Well-known brand electric motor and bearing produce high quality.

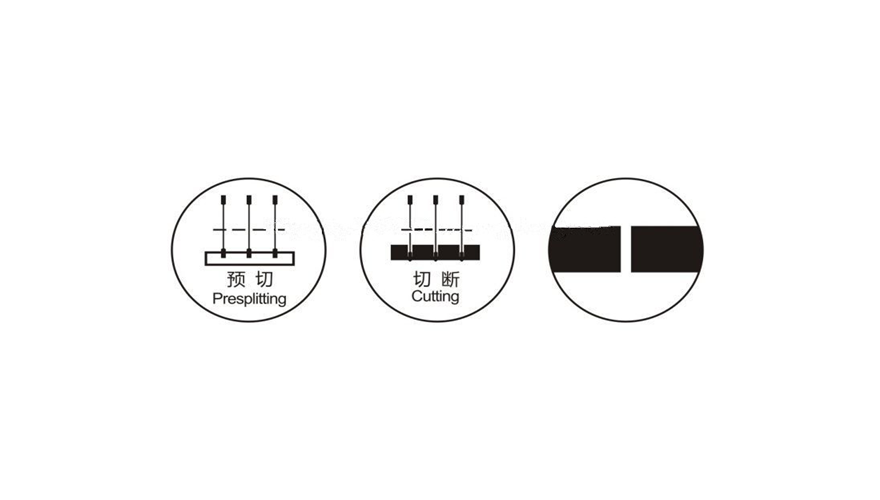

(2) Twice cutting can assure high speed and less edge-crack.
(3) V-guide of the conveyor belt keeps the belt running with high precision.
(4) Spindle bearing block cooled by water-cooling equipment assures long time continuous cutting without being overheated.

Parameter of YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter

No.

Name

Parameter

1

Nos. Of cutting head

2pc

2

Width of conveyor belt

1020mm

3

Dia. Of blade

Φ150-300mm*60mm

4

Main motor power

18.5kw

5

Conveyor motor

2.2kw

6

Speed of conveyor

0.8-4.0m/min

7

Lifter motor

0.75kw

8

Cutting width

20-800mm

9

Max. Cutting thickness

20mm

10

Total power

40.7kw

11

Size of machine

2.5*1.98*1.63m

12

Weight

About 2000kg

13

Water consumption

400L/min




We can provide you with diamond tile cutter, floor and decor tile cutter and best tile cutter for subway tile.
