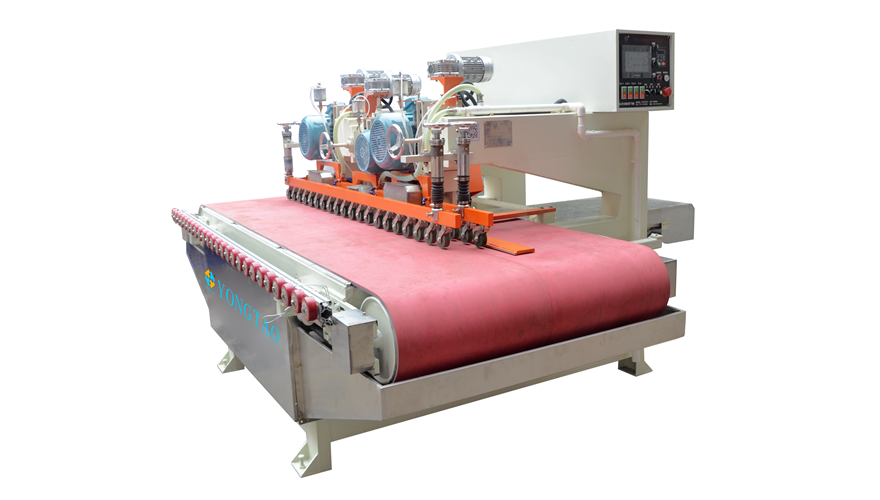

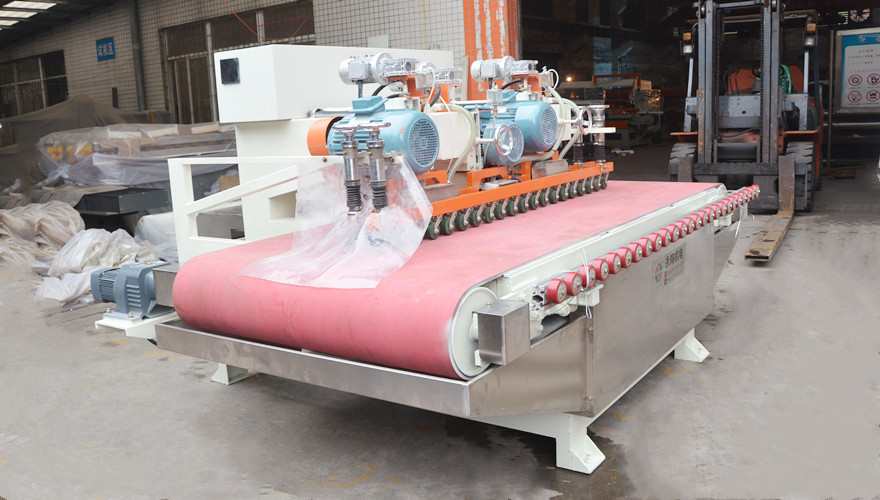

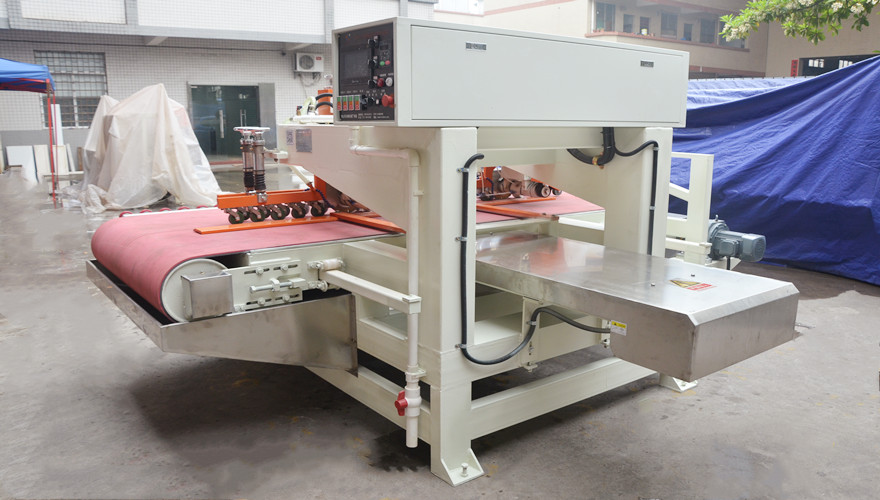

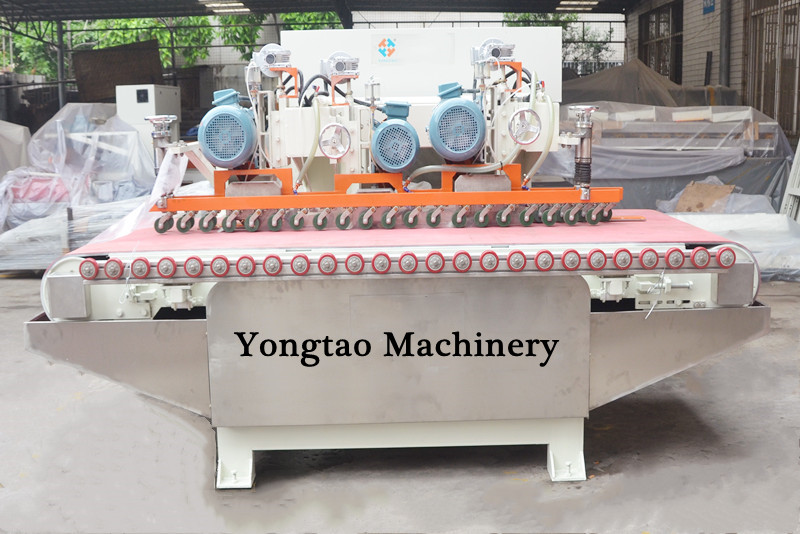

Description of YTQZ-A/3-1800 3 Blade CNC Ceramic Porcelain Tile Cutting Machine
YTQZ-A/3-1800 3 Blade CNC Ceramic Porcelain Tile Cutting Machine is the latest product of Yongtao company which belongs to porcelain tile cutting machine.The machine is upgraded from traditional cnc ceramic cutting machine.It can large size ceramic tile,has the advantage on fast cutting speed,good cutting effect, available continues cutting, stable quality.It is the first CNC ceramic cutting machine for continues cutting large ceramic tiles

Product Introduction: YTQZ-A/3-1800 3 Blade CNC Ceramic Porcelain Tile Cutting Machine
1. Adopt pure digital control system, touch screen control, frequency conversion speed regulation, and the machining accuracy is 0.01mm.

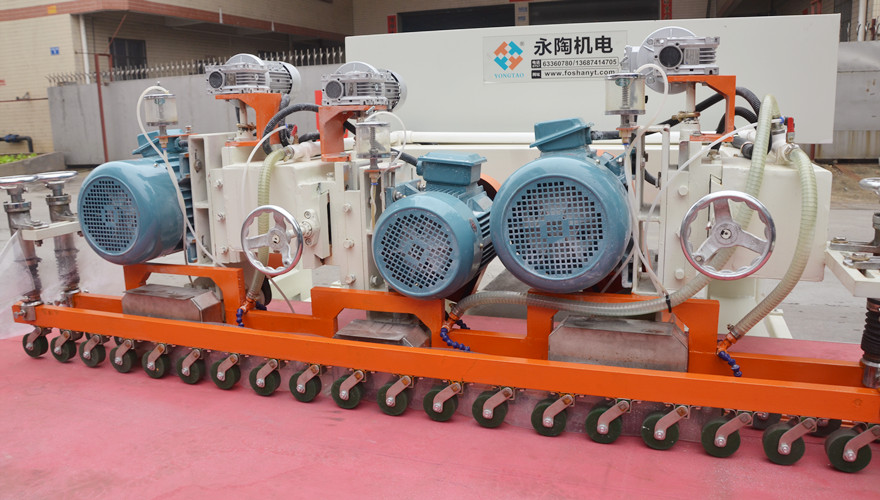

2. The cutting head is controlled by lifting motor, the blade use 20mm inner hole, and the middle cutting head is V shaped trimming wheel.
3. The belt adopts red belt with a width of 1.2 meters. The belt is stuck into the girder to prevent the belt move away.
4. The baffle is supported by the wheel, and the whole baffle can be extended.
5. The maximum machining size is 1800*1800mm, and the cutting in half is 1800*900mm.
6, Using stainless steel water cover, to prevent the cutting of dirty water turbulence.

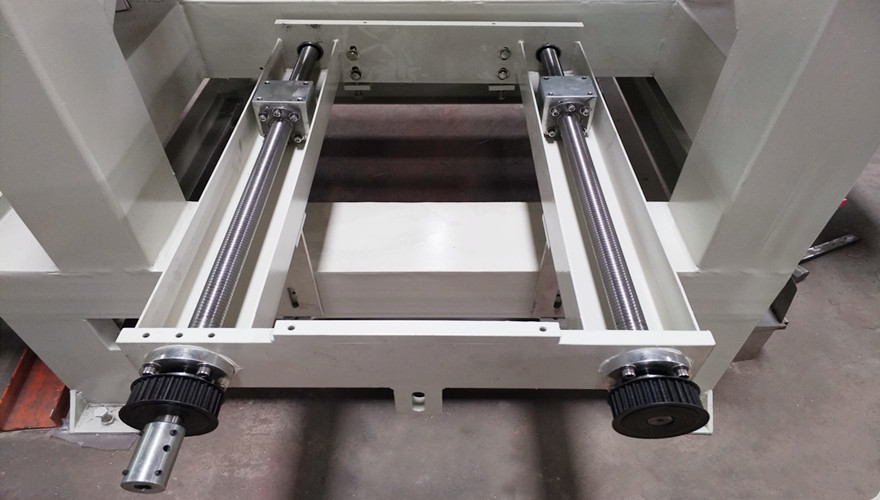

7.The baffle dopts oil dip type precision screw rod to ensure the machining accuracy.

Technical Parameter of YTQZ-A/3-1800 3 Blade CNC Ceramic Porcelain Tile Cutting Machine

No

Name

Parameter

1

Main motor

5.5kw

2

Trimming motor

4kw

3

Cutting heads

3pcs

4

Dia. Of cutting blade

(Ø180-200)*20mm

5

Width of belt

1200mm

6

Lifting motor

3pc

7

Lifting motor power

0.37kw

8

Max processing width

1800mm

9

Pressing speed

4-6m/min

10

Drive method

Stepping motor

11

Voltage

380V

12

Size of machine

3m*2.8m*1.75m

13

Total power

17.61kw

14

Weight

2000kg



We can provide you with best tile cutter for porcelain.
