Description of YSMD 5+3+3 Multifunction Marble Edge Profile Chamfer Polishing Machine

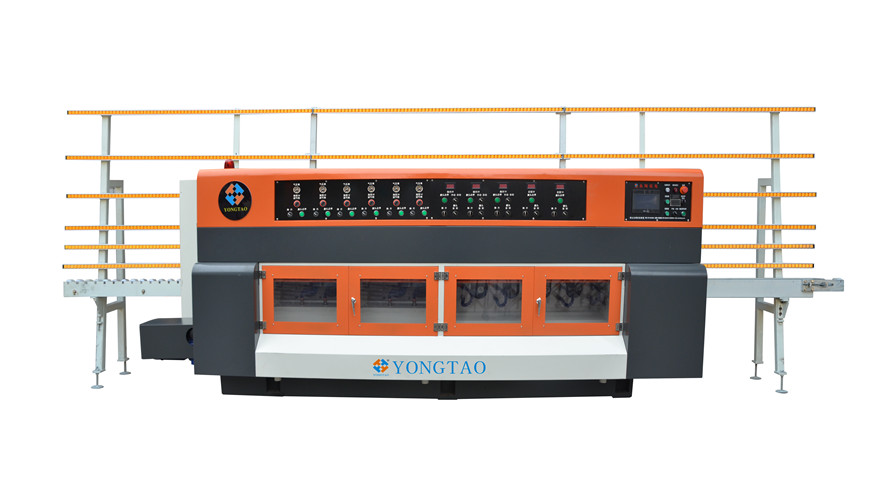

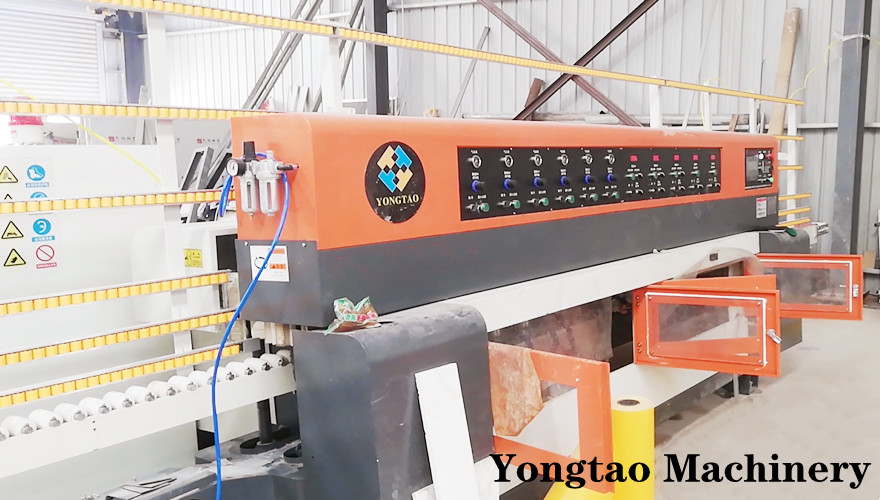

YSMD 5+3+3 Multifunction Marble Edge Profile Chamfer Polishing Machine, this marble edge profiling machine is the new generation product of YONGTAO Machinery. It can process single thick slab and double thick slab for all kinds of edge shapes, such as 180 degree round edge, flat edge, chamfer etc. This machine have 2 heads to profile, and 3 heads to polish. The polishing wheel adopts automatic control system. It great save the labor cost, and improve the stability of product effect.

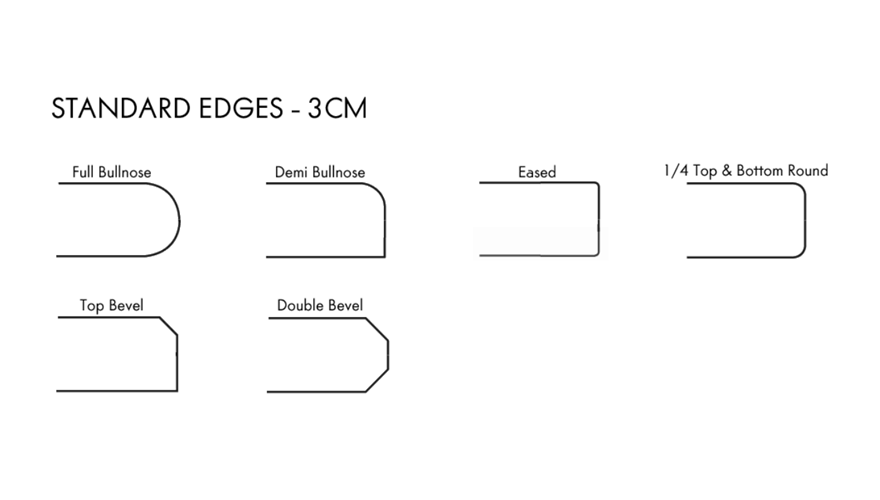

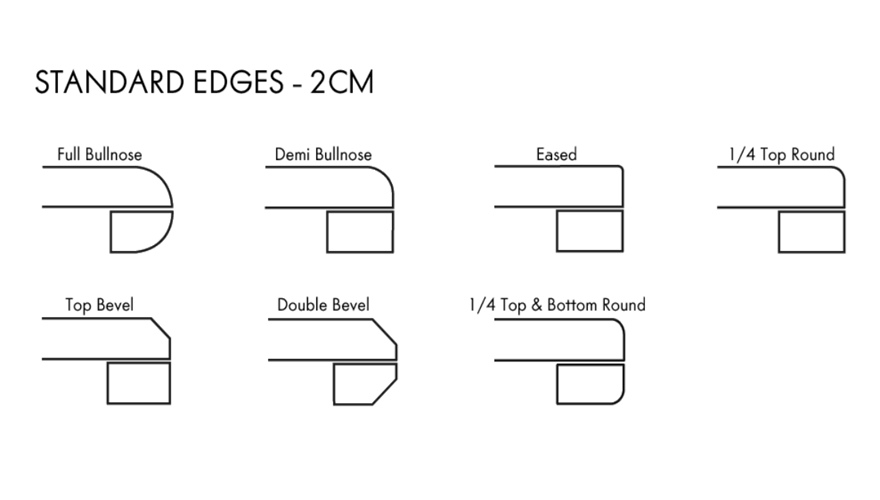

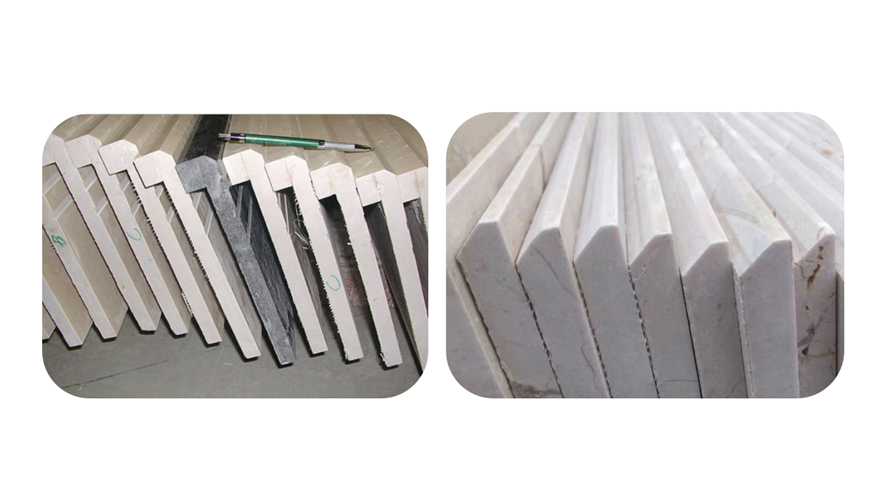

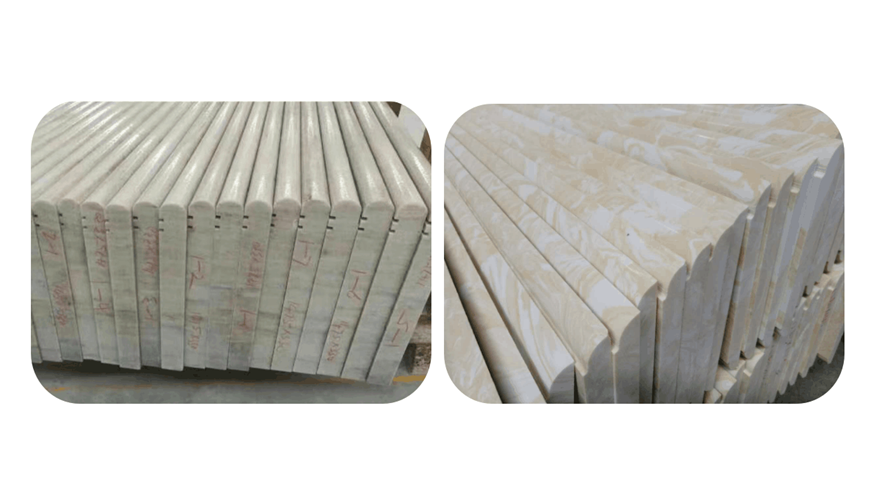

Stone Edge Shape:
1. Straight Edge 2. chamfer 3. bevel 4. bevel edge 5. 1/2" bevel 6. 1/4 bevel 7. 1/8" bevel 8. Half bevel 9. Small Bevel 10. Large Bevel 11. 3/16" bevel 12. 3/8" bevel 13. 3/4" bevel 14. 45 Bevel 1/4" Rad.  15. 1-1/2"Laminated Bevel  16. ogee bevel 17. ogee Edge 18. Waterfall 19. Bevel Top & Bottom 20. Half Bullnose 21. Demi Bullnose 22. Full Bullnose 23. Ogee Bullnose 24. Dupont Bullnose 25. 1-1/2" Laminated Bullnose 26. Double Radius 27. Double Cove 28. 1/4" Radius 29. 1/8" Radius 30. 5/8" Radius 31. Strait Edges 32. 1/4" Round 33. 1/8" Round 34. 3/8" Round 35. 3/16" Round 36. Round Top & Bottom 37. Standard Ogee 38. Dupont Edge 39. Crescent Pencil edges 40. triple pencil edge 41. Ogee Square 42. Offset Ogee 43. Offset Ogee Bullnose 44. Offset Dupont 45. Offset Dupont Bullnose 46. Cove Dupont 47. Cove Ogee 48. Stair Tread 49. Square Eased 50.Lipping

Parameter of YSMD 5+3+3 Multifunction Marble Edge Profile Chamfer Polishing Machine

No.

Name

Parameter

1

Nos. of profile head

2pc

2

Nos. ofpolish head

3pc

3

Diameter of wheel

Φ150mm*30mm

4

Motor power of profile head

5.5kw

5

Nos. Of flat polish head

3pc *0.75kw

6

Nos. Of chamfer polish head

3pc *0.75kw

7

Processing width

100-2800mm

8

Diameter of polishing wheel

95mm

9

Processing speed

0.5-3m/min

10

Max processing thickness

60mm

11

Total power

36.05kw

12

Air consumption

30L/min

13

Water consumption

300L/min

14

Size of machine

7.5m*1.25m*2.3m (with frame)

15

Weight

About4500 kg



We have marble edge poliser for sale and we provide you with marble ogee edge polising machine, marble pencil edge polishing machine and so on.
