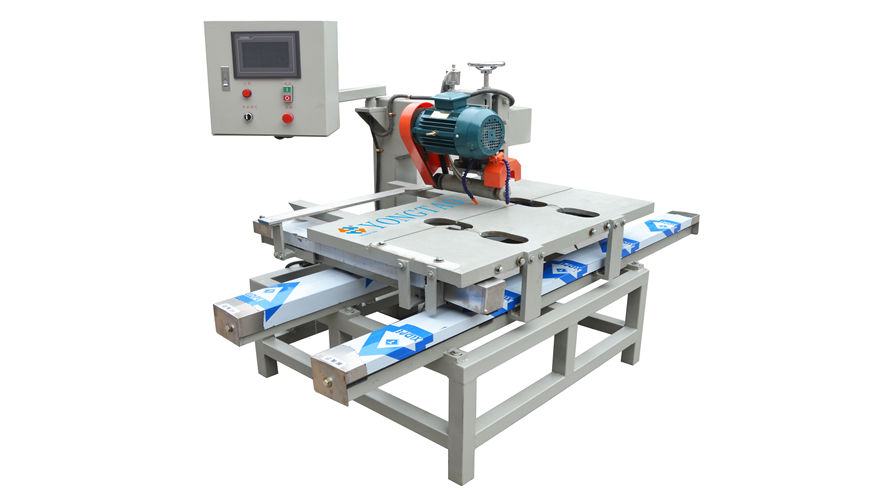

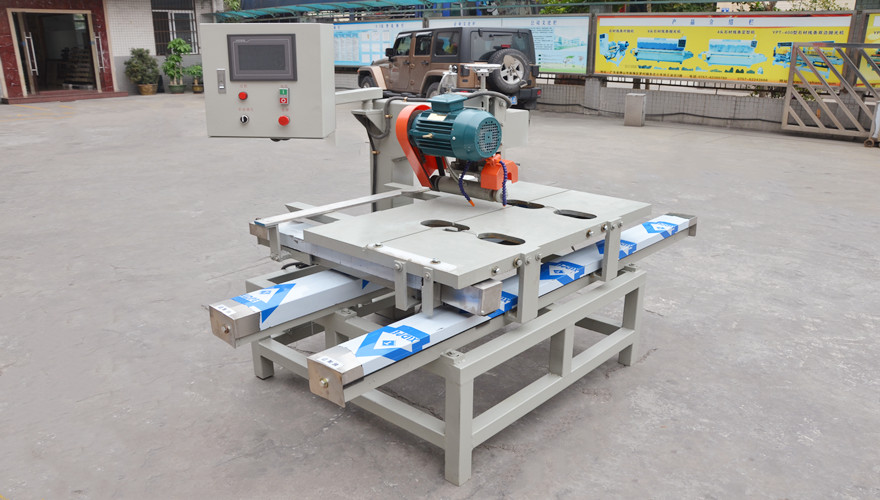

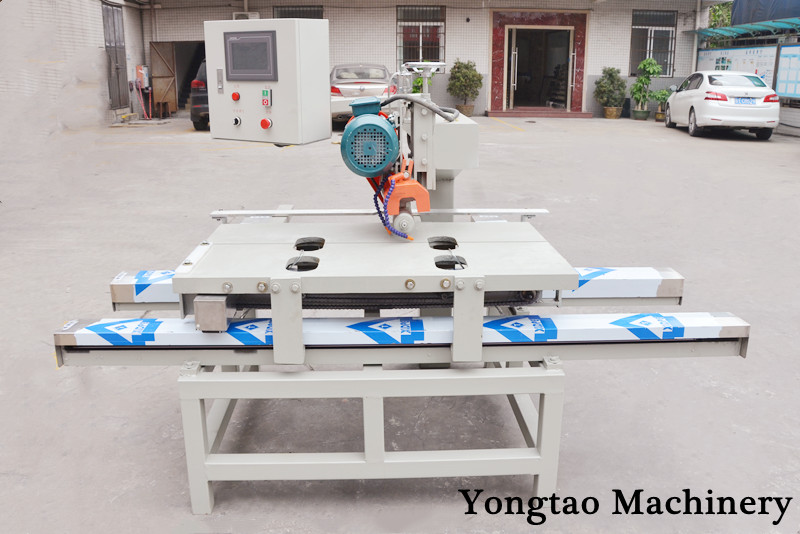

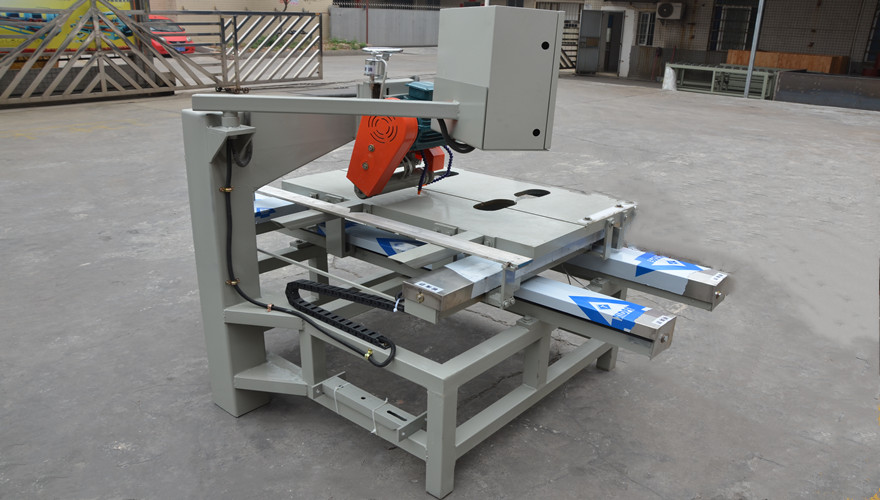

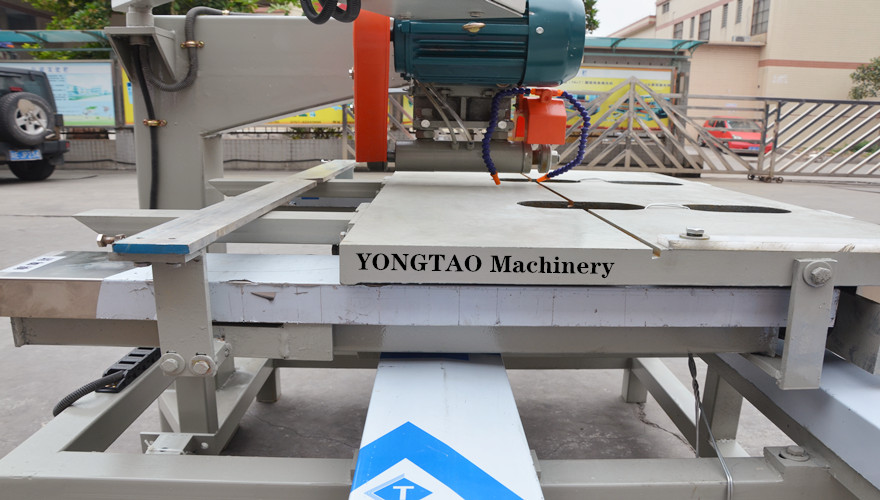

Description of YTQS-3-1200 Manual Type CNC Ceramic Cutting Machine

YTQS-3-1200 Manual Type CNC Ceramic Cutting Machine is the latest manual product researched by Yongtao Machinery in 2016 which is the best manual tile cutter for porcelain.This machine has high precision,reasonable price,the same size of cutting,excellent effect of cutting.This machine adopt oil-immersed guide and slider,stepping motor to drive.It is cheaper than Automatic Continues Cutting Machine,but has the same level of precision.It is the ideal machine for the new ceramic deep process factory.

Parameter of YTQS-3-1200 Manual Type CNC Ceramic Cutting Machine

No.

Name

Parameter

1

Nos. Of cutting head

1pc

2

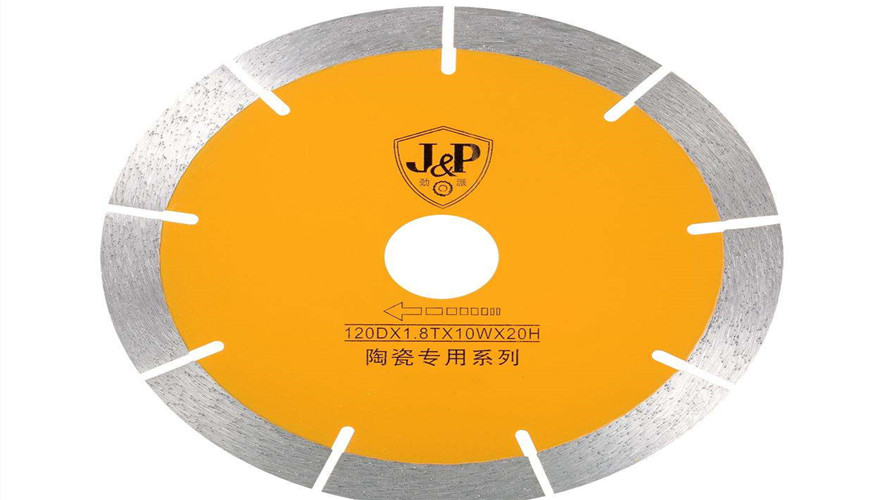

Dia. Of blade

Φ110-150mm*20mm

3

Main motor power

3kw

4

Speed of conveyor

1.5m/min

5

Max. Cutting width

1200mm

6

Max. Cutting thickness

20mm

7

Total power

3.37kw

8

Size of machine

2.2*1.8*1.8m

9

Weight

About 300kg

10

Water consumption

100L/min


We provide you with competitive manual tiles cutting machine price.
