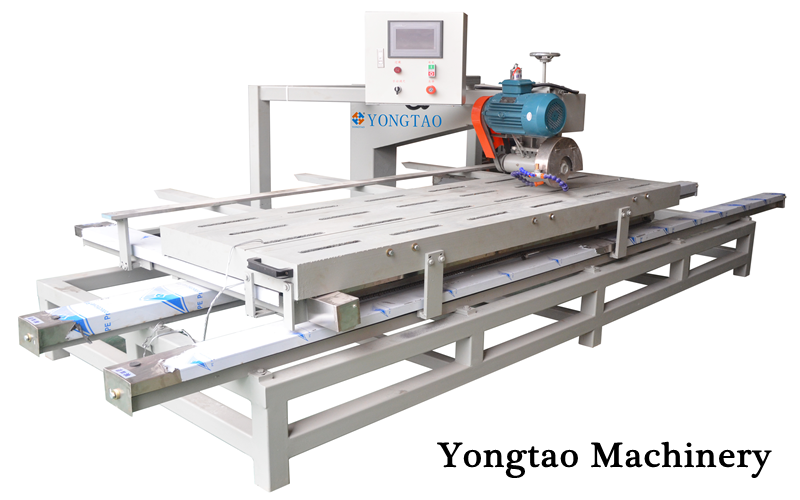

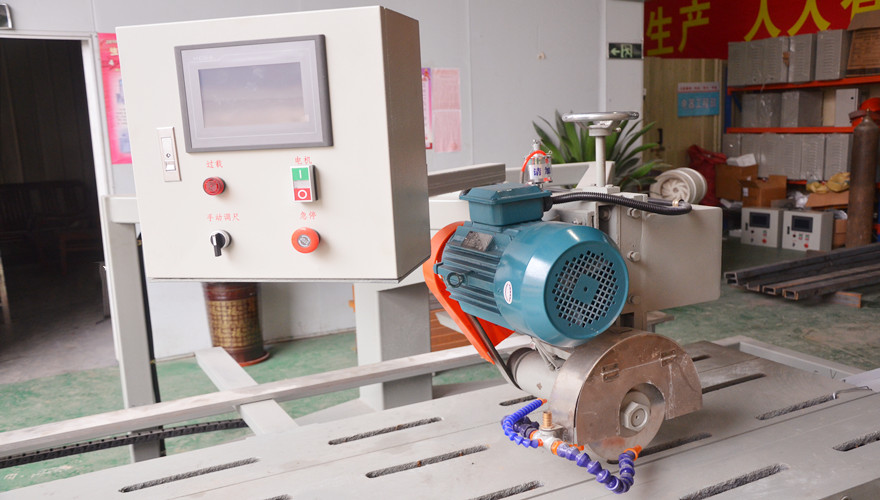

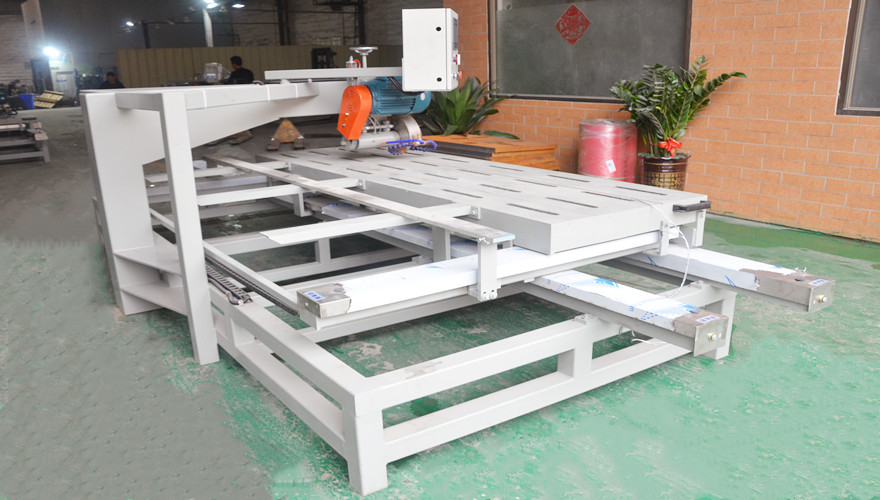

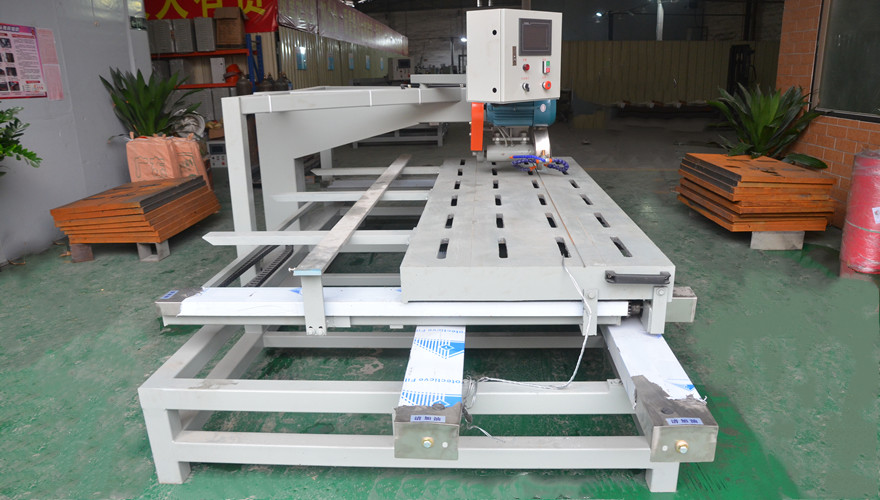

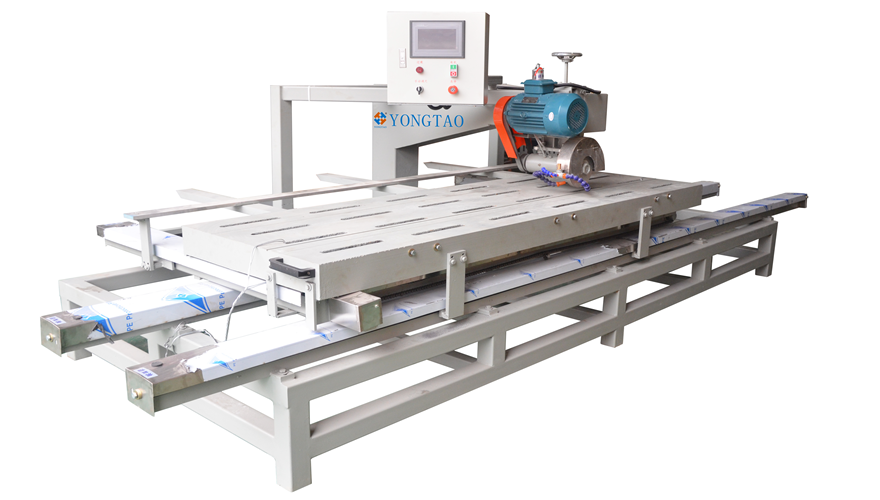

YTQS-4-2400 CNC Manual Type Large Format Tile Cutter
YTQS-4-2400 CNC Manual Type Large Format Tile Cutter is specialized to process big size tile which belongs to large manual tile cutter,the max processing size is 2400mm,for example 2400mm*2400mm ceramic tile cut into 2400mm*1200mm,it use 200~250mm blades,the cutting effect is good.This machine have a advantage on cutting size adjustment,it use the precise screw and stepping motor,processing of high precision,good mechanical stability,simple operation.
Large Format tile cutting machine:

Parameter of YTQS-4-2400 CNC Manual Type Large Format Tile Cutter
|
No. |
Name |
Parameter |
|
1 |
Nos. Of cutting head |
1pc |
|
2 |
Dia. Of blade |
Φ200-250mm*60mm |
|
3 |
Main motor power |
4kw |
|
4 |
Speed of conveyor |
1.5m/min |
|
5 |
Max. Cutting width |
2400mm |
|
6 |
Max. Cutting thickness |
20mm |
|
7 |
Total power |
4.37kw |
|
8 |
Size of machine |
4.5m*2.0m*1.8m |
|
9 |
Weight |
About 1800kg |
|
10 |
Water consumption |
100L/min |
-
