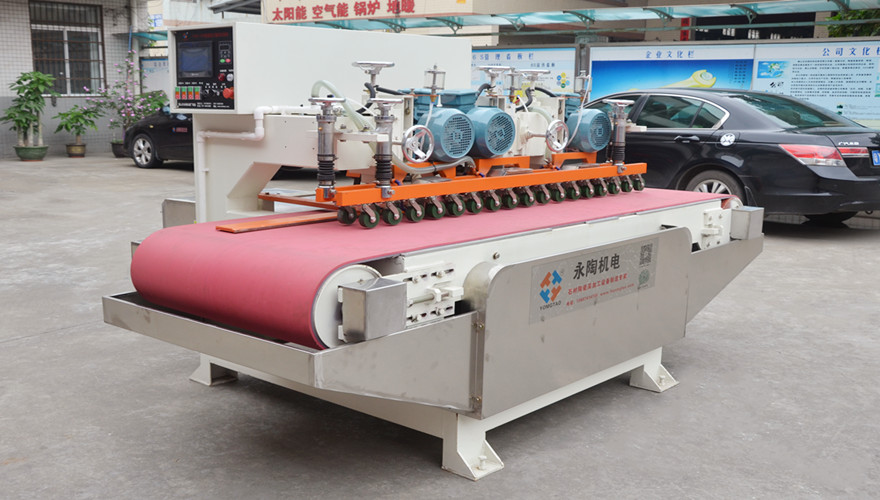

Description of YTQZ-A/3-1200 Three Blade CNC Ceramic Tile Cutter Machine
YTQZ-A/3-1200 Three Blade CNC Ceramic Tile Cutter Machine is an new CNC tile cutting machine,which was researched and developed by our company. It is an outstanding cutting machine in tile processing,which successfully eliminates the cracking. And it is a professional tile cutter. This machine owns the following advantages:

Features of YTQZ-A/3-1200 Three Blade CNC Ceramic Tile Cutter Machine
(1) The cutting size can be numerical controlled, and the accuracy reaches 0.1mm.

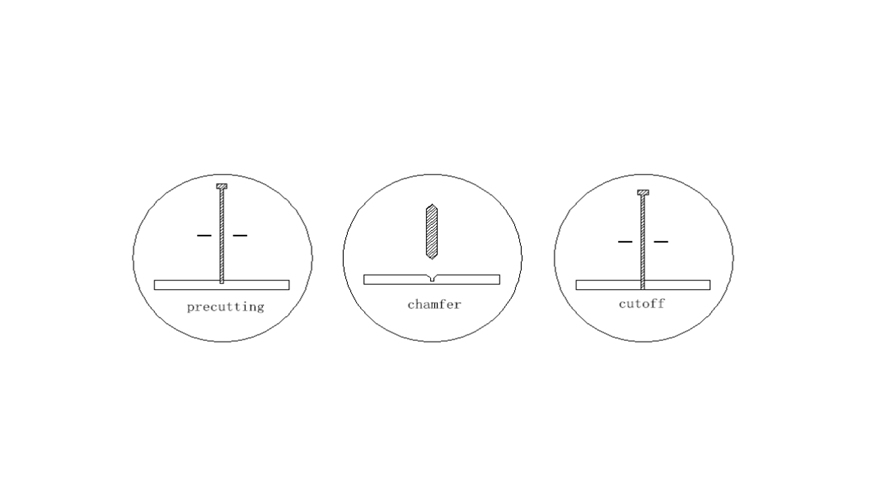

(2) The two cutting discs integrate the pre-cutting and cutting-off. The cracks and unevenness can be reduced much.
(3) Low breakage rate, stable function, saving energy and reducing cost. High speed, and excellent performance.
(4) automatic monitoring of failures, and convenient repair.
YTQZ-A/3-1200 Three Blade CNC Ceramic Tile Cutter Machine will certainly bring you high-class products and perfect economic benefit.

Parameter of YTQZ-A/3-1200 Three Blade CNC Ceramic Tile Cutter Machine

No.

Name

Parameter

1

Nos. Of cutting head

2pc

2

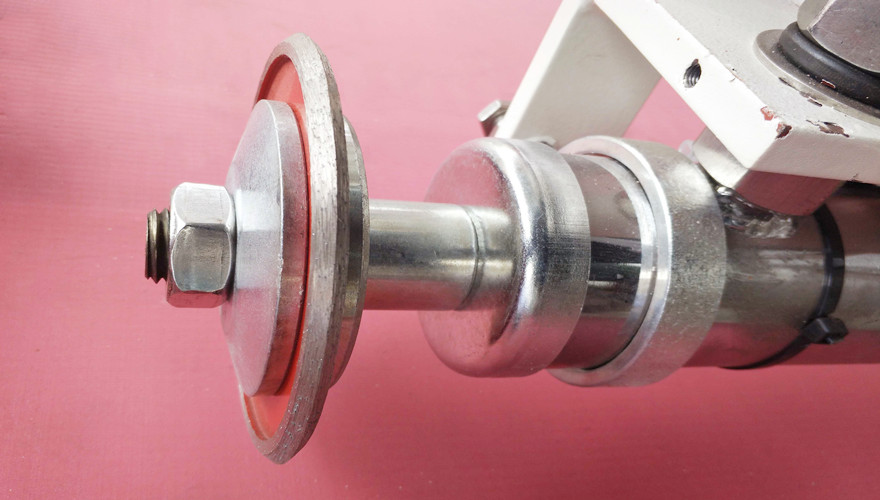

Nos. Of chamer head

1pc

3

Width of conveyor belt

1020mm

4

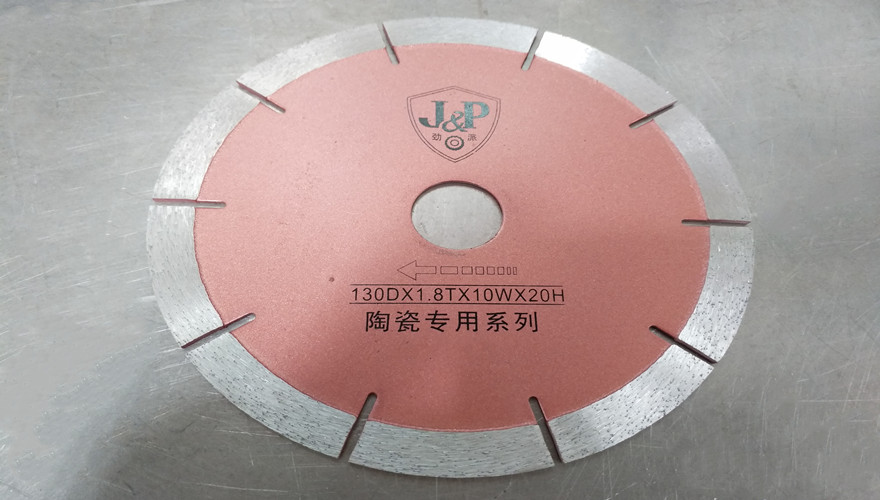

Dia. Of blade

Φ110-150mm*20mm

5

Main motor power

4kw

6

Conveyor motor

1.1kw

7

Speed of conveyor

1-5.0m/min

8

Cutting width

20-1200mm

9

Max half-and-half cutting width

1200x1200mm (two pcs of 600x1200)

10

Max. Cutting thickness

20mm

11

Total power

13.1kw

12

Size of machine

2.7*2.0*1.8m

13

Weight

About 1500kg

14

Water consumption

300L/min



We have professional tile cutter for sale and we provide you with best professional tile cutter for you.
