YSR-1 3+3 Stone Double Flat Edge Polishing Machine
YTYP-1200/7+14 Porcelain Tile Bullnose Machine

YSR-1 3+3 Stone Double Flat Edge Polishing Machine

  Mar 05-2019
YSR-1 3+3 Stone Double Flat Edge Polishing Machine
Working principle:3+3 Stone Double Flat Edge Polishing Machine connect with 8 Head Automatic Marble Moulding Machine , through the thrust by transmission of  Automatic Marble Moulding Machine, push the stone line into the edge polishing machine to make polishing.Workable material: marble, artifical stone, agglomerated stone, graniteCharacteristic: rational design, simple structure, advanced performance, convenience operation, easy maintenance.Main function: polish both side edge of stone line.

YSR-1 3+3 Stone Double Flat Edge Polishing Machine
Stone Double Flat Edge Polishing Machine

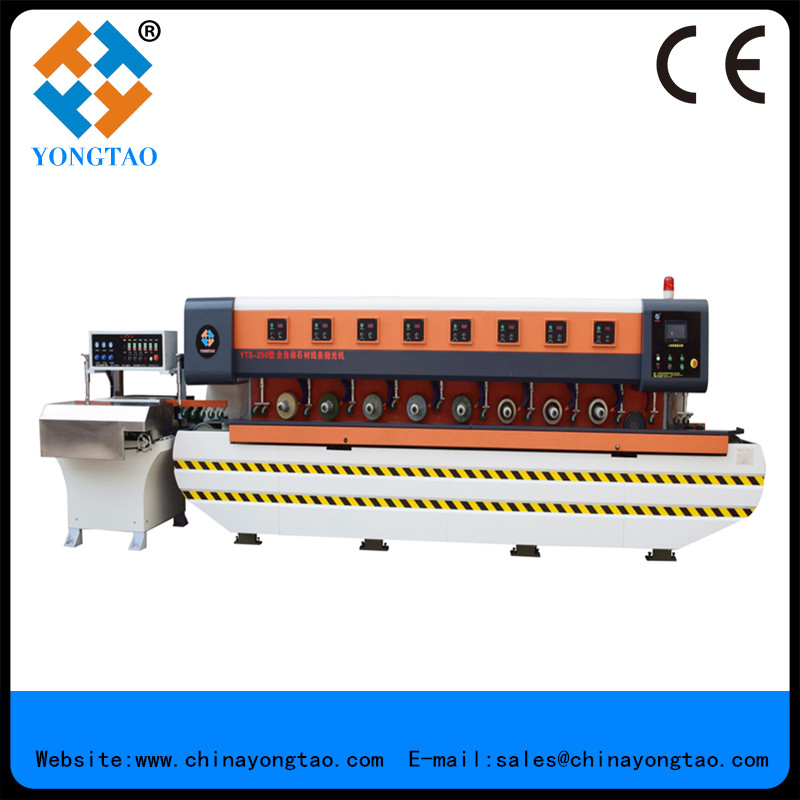

YSXP-250 8 Head Automatic Marble Moulding Machine & 3+3 Stone Double Flat Edge Polishing Machine Automatic Marble Moulding Machine

parameters:
No Name Unit parameters
1 Width of conveyor belt mm --
2 Power of conveyor motor kw --
3 Numbers of polishing wheel pc 6 (3 pair)
4 Diameter of polishing wheel mm 125
5 Power of polishing wheel kw 0.75*6
6 Workable width mm 30-250
7 Workable thickness mm 10-70
8 Workable speed m/min same with stone line polishing machine
9 Total power kw 4.5
10 Power consumption kw/h 4.5
11 Water consumption L/min 60
12 Size of machine L*W*H 1.25*1.65*1.58m
13 weight kgs 1200

Foshan Nanhai Yongtao Machinery and Electrical Equipment Co., Ltd. Is a manufacturer specialized in automatic stone line polishing machine, stone line processing machine production line, stone edge grinding machine, stone edge polishing machine, stone cross cutting machine, stone line both side edge polishing machine, stone line both side edge cross polishing machine, stone chamfering machine, stone grooving machine, L type slot making machine, stone wax-polishing machine, stone straight edge polishing machine, stone 45 degree polishing machine, stone straight edge and 45 degree polishing machine, etc all kinds of stone process machinery.For more detail, please feel free to contact us.

Mobile:0086-18665475362   Web site:www.chinayongtao.com   Email:sales@chinayongtao.com
