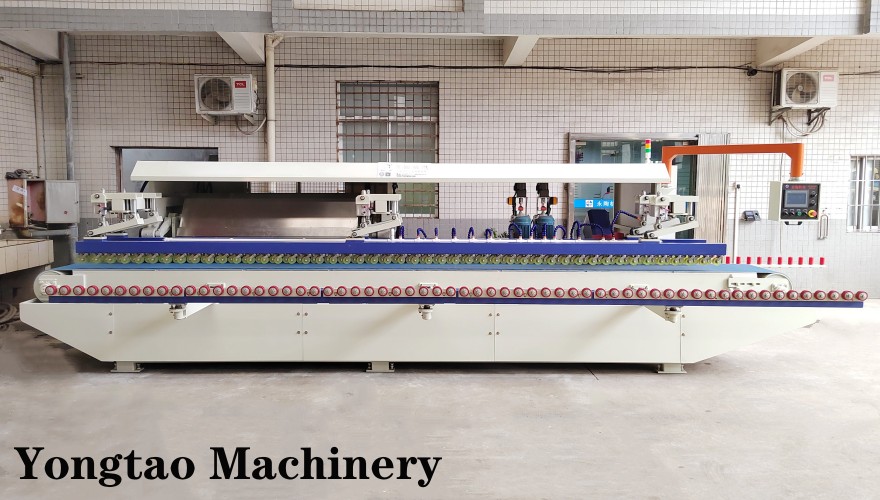

YCMDYP-2500 (5+6)-(6+6) Quartz Stone Countertop Double Round Edge Polisher

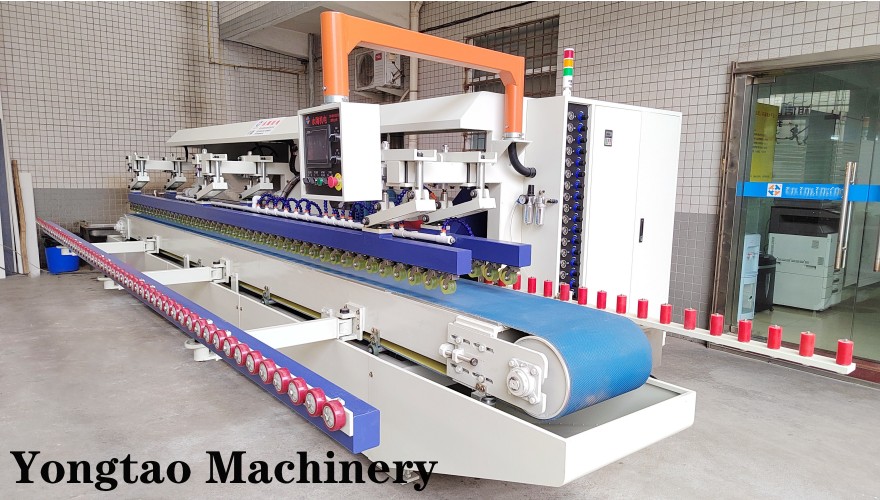

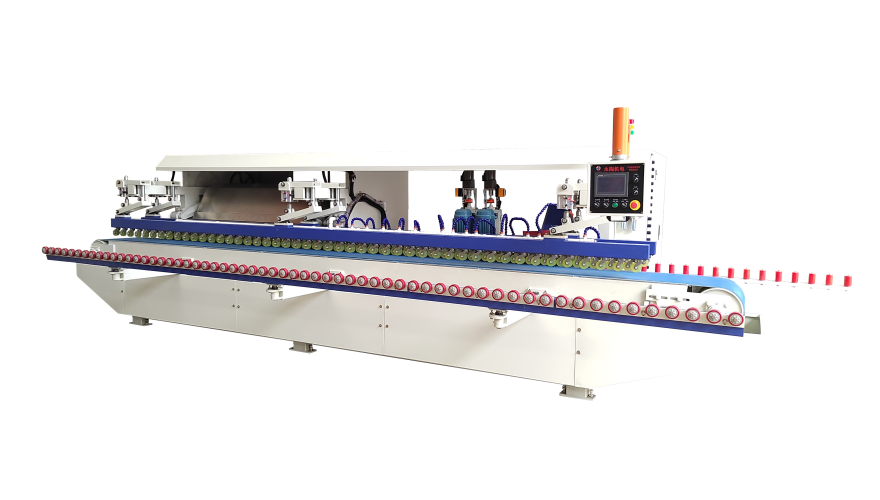

The Quartz Stone Countertop Double Round Edge Polisher is a customized machine for quartz countertop processing, it is the latest upgrade countertop edge polish machine. Only one machine can finish straight edge polish, top and bottom round edge polish for quartz countertop. The front of machine have squaring head, top and bottom chamfer head, and R round profile wheels. It through change the R round profile wheel to realize processing different R round. The end of machine have the swing polishing heads for top and bottom R round polishing. No matter single thick slab or double thick slab, it can be polished by this processing method, and processing of R round standard, good brightness. It is a nice machine for sintered stone countertop, quartz countertop, marble countertop and granite countertop processing. This machine has the advantage of simple operation, convenient maintenance, easy to learn etc, has solved lots of difficulties of quartz countertop processing, so it is a worthful  edge polishing machine for your countertop processing.


Processing materials: sintered stone, marble, quartz stone

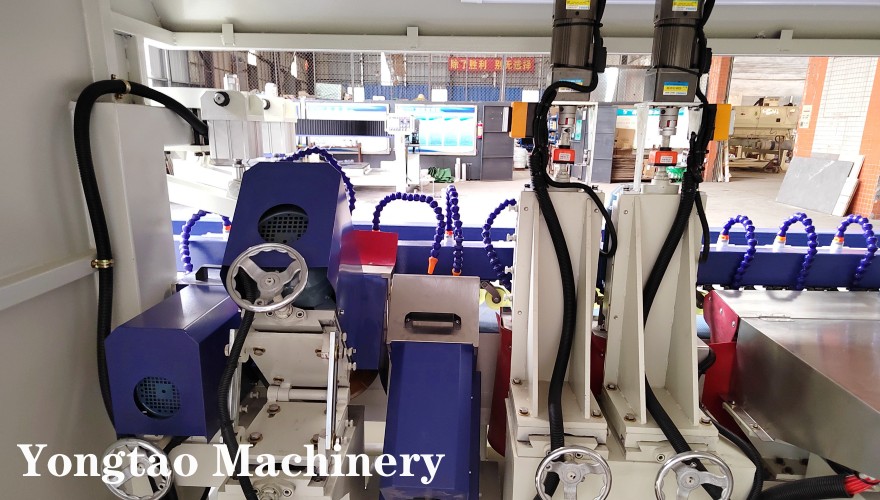

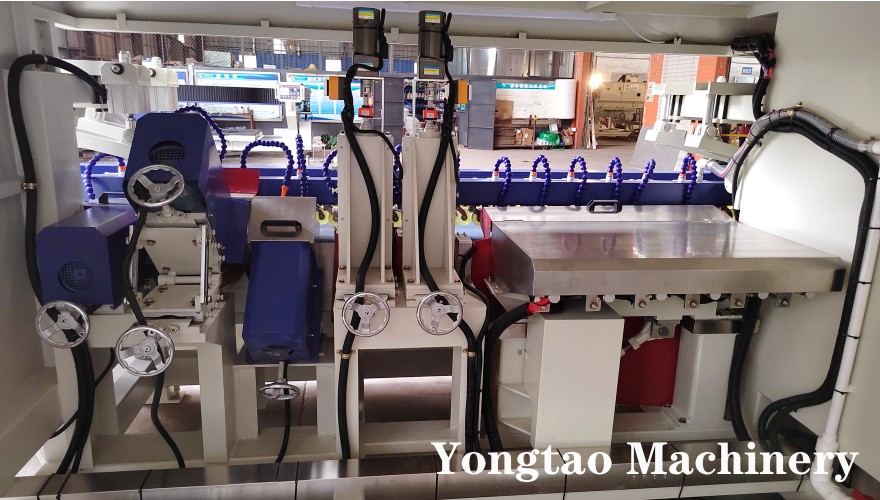

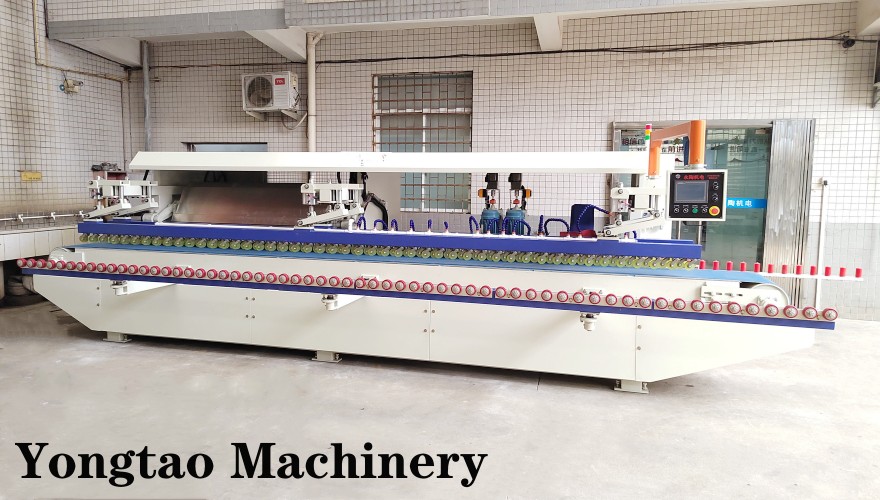

Quartz Countertop Edge Polishing Machine:

Quartz Countertop Edge Polisher


The Quartz Stone Countertop Double Round Edge Polisher features:

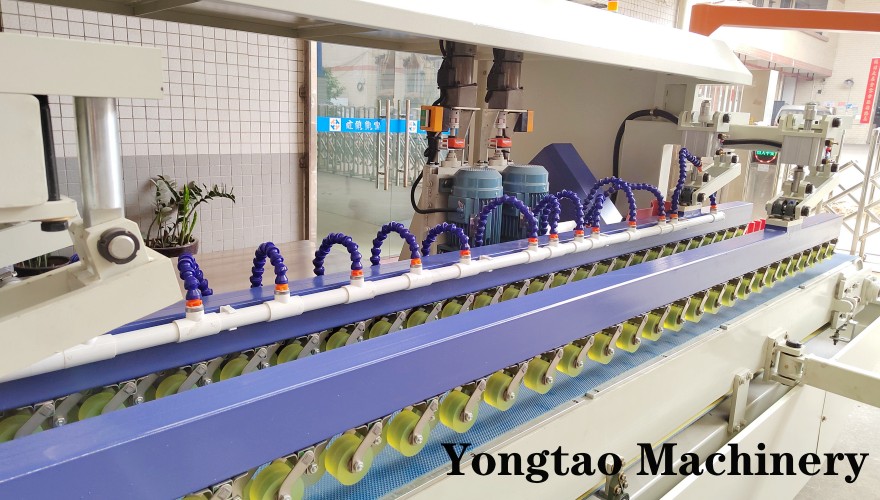

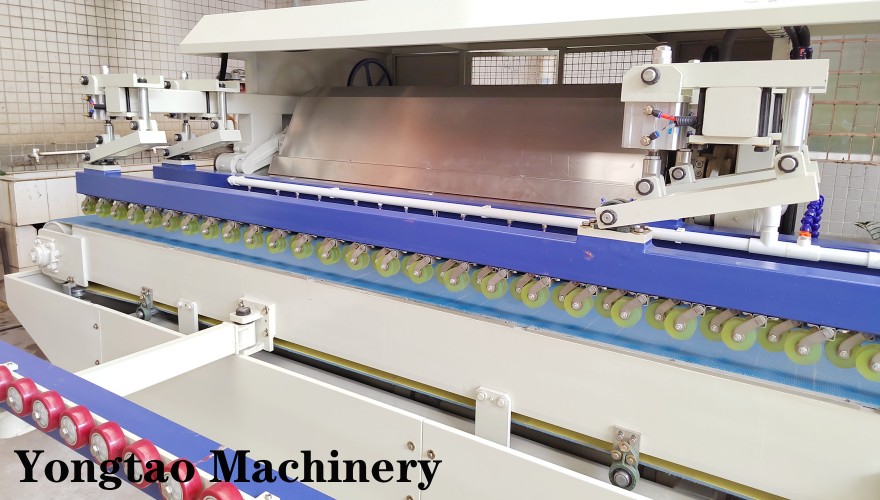

1.the press structure adopts double cylinder, the pressure wheel is staggered structure design, the pressure is more uniform, the pressure on slabs is more stable;

2.The main belt is 500mm wide, the processing of quartz countertop is more stable and better

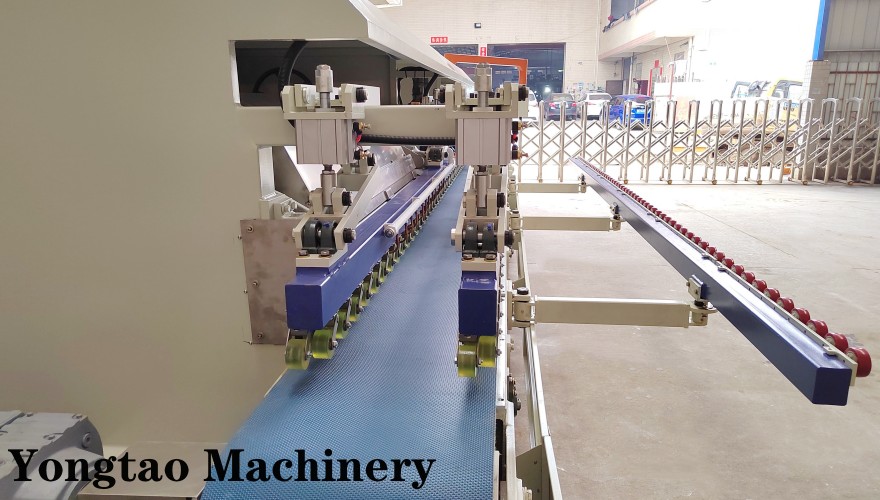

3.Auxiliary belt design, can support a larger specification of quartz countertop, the main belt and auxiliary belt synchronous operation, slab will not deviate;

4. the structure design of red guild wheel can better adjust the straightness of the slab, so that the slab into the belt is kept in a straight line with the diamond grinding wheel, and the processing effect is better;

5. Rocker arm electric cabinet structure design, operation is more convenient, more flexible, can see the adjustment and control of each grinding head in front of the machine;

6. most of the mechanical control, is operated through the display screen, the display is clear, intuitive, easy to operate;

7. each motor is designed with a waterproof cover, to avoid sewage into the motor, to avoid motor water and burning motor;

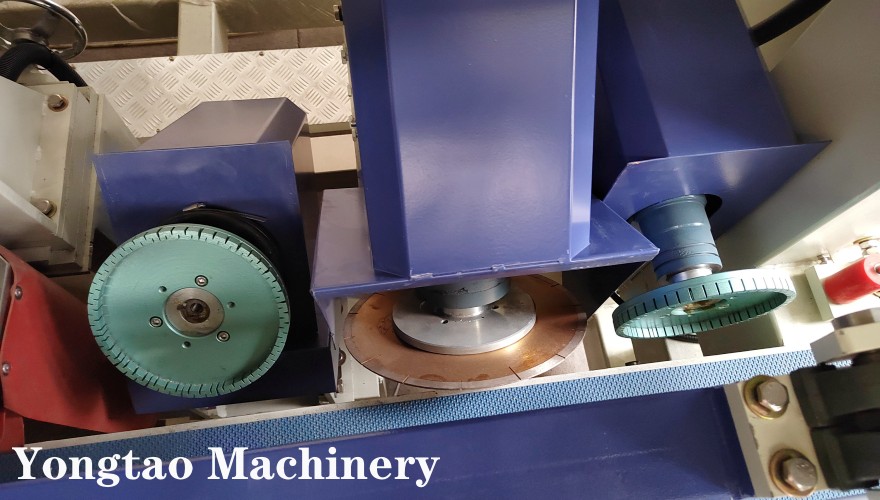

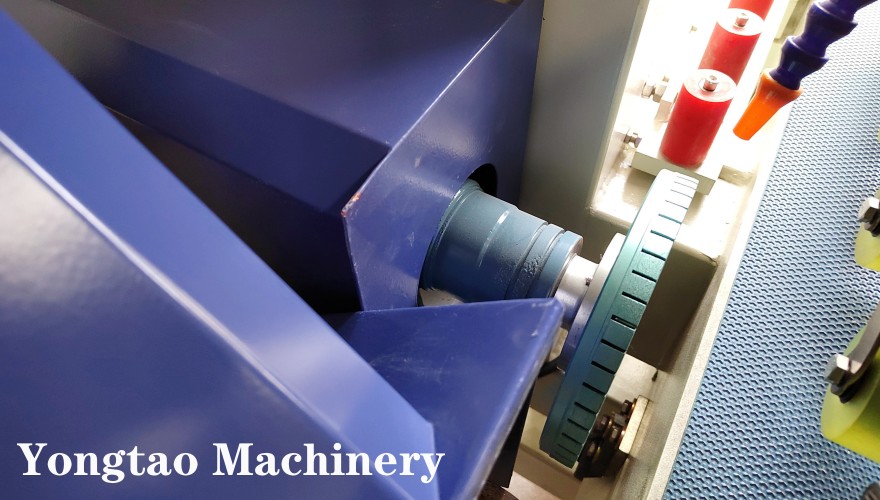

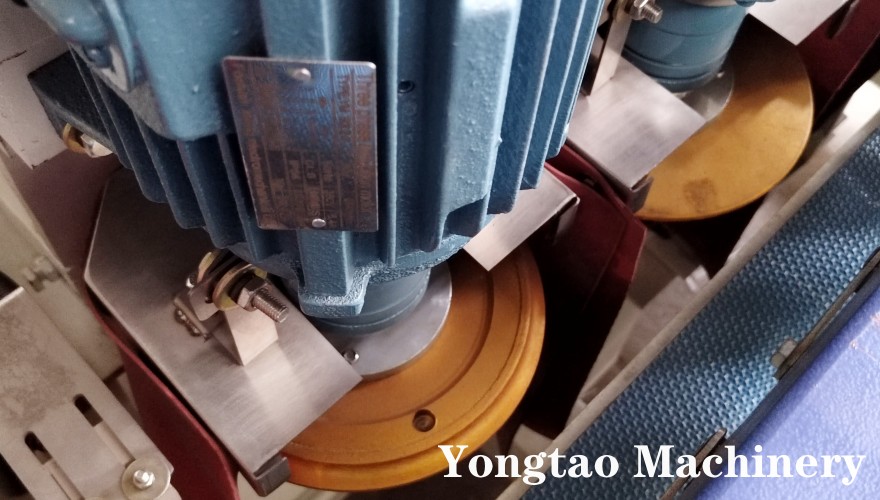

8. 2 diamond setting wheels, can first R arc shape grinding, and then through the back of the upper and lower arc swing polishing, processing of the top and bottom arc shape is better, more smooth, more beautiful;

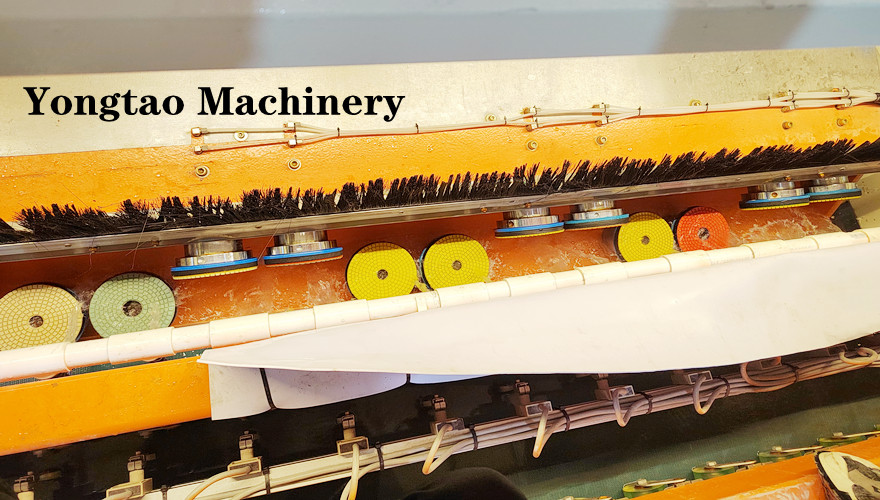

9. straight edge, top and bottom arc polishing grinding pieces, using snail buckle connection and polishing, using water grinding pieces of different thickness number of mesh polishing, to achieve the most ideal effect;

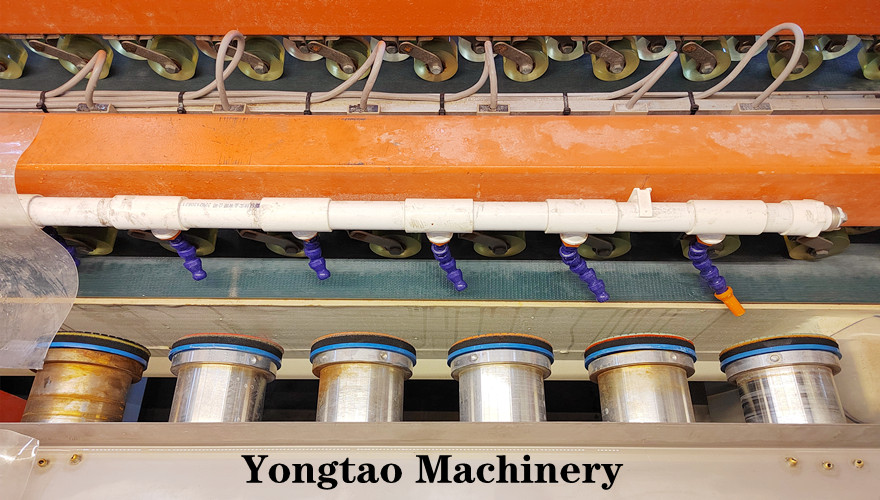

10. each polishing grinding head adopts independent motor and cylinder control, using pneumatic polishing, processing brightness and polishing effect can be more perfect.


The Quartz Countertop Round Edge Polishing Machine Parameters:

No

Name

Parameter

1

Squaring head

1pc

2

Squaring head motor power

3kw

3

Diameter of squaring wheel

Φ200x60mm

4

Top chamfer head

1pc

5

Top chamfer head motor power

3kw

6

Diameter of chamfer wheel

Φ200x60mm

7

Bottom chamfer head

1pc

8

Bottom chamfer head motor power

3kw

9

Diameter of chamfer wheel

Φ200x60mm

10

R round profile head

2pc

11

Profile head motor

3kwX2pc

12

Diameter of profile wheel

Φ150x22mm

13

Straight polishing head

6pcs

14

Straight polishing power

0.75kwX6pcs

15

Diameter of polishing slice

Y3 (Φ125

16

Top R round polishing head

6pcs

17

Top R round polishing head motor power

1.5kw*3pcs

18

Diameter of polishing slice

Φ125

19

Bottom R round polishing head

6pcs

20

Bottom R round polishing head motor power

1.5kw*3pcs

21

Diameter of polishing slice

Φ125

22

Conveyor belt

500mm

23

Auxiliary belt width

150mm

24

Processing speed

1-3m/min

25

Processing thickness

6-20mm

26

Processing width

300-2500mm

27

Total power

35.5kw

28

Size of machine

6.55mX2.76mX1.87m

29

Weight

6000kg

30

Conveyor belt motor

3kw

31

Swing motor

4kw
