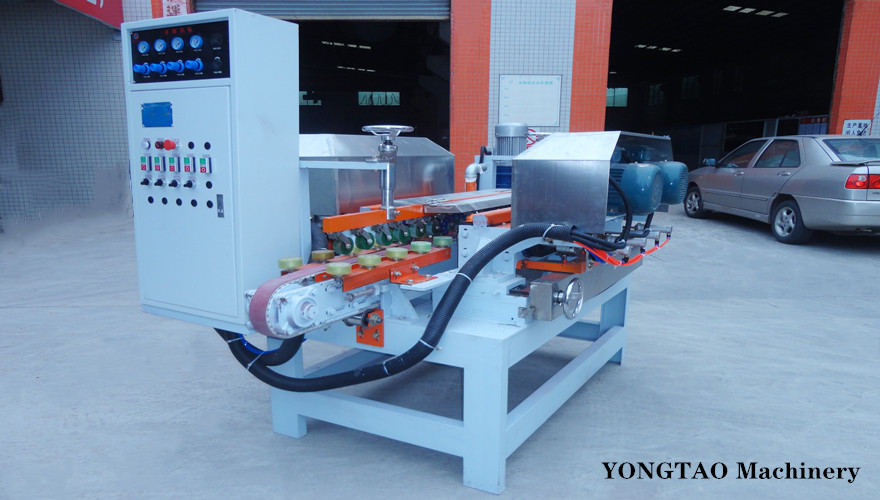

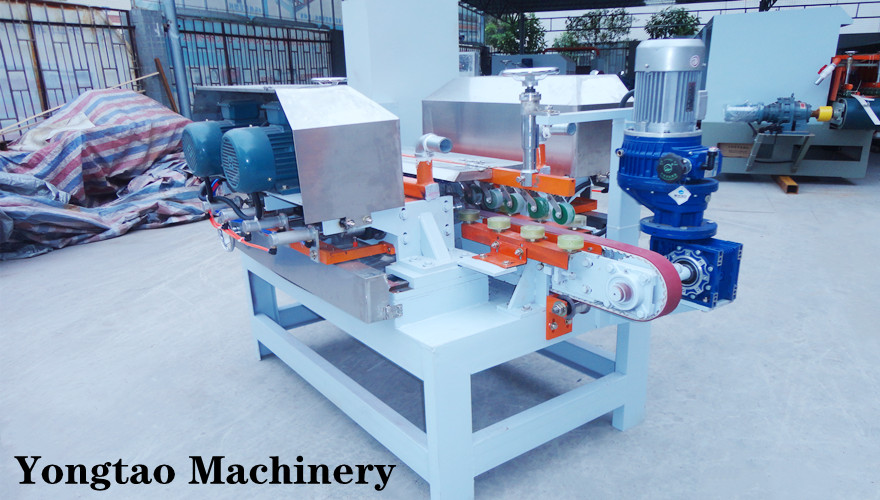

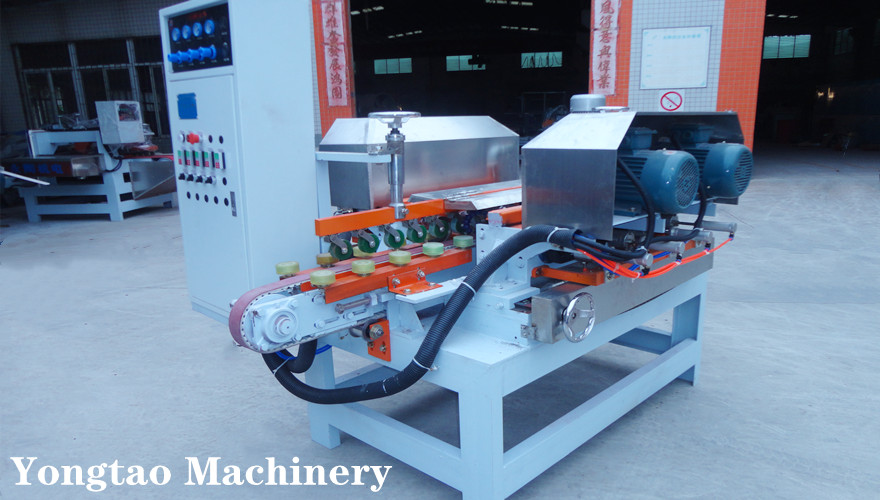

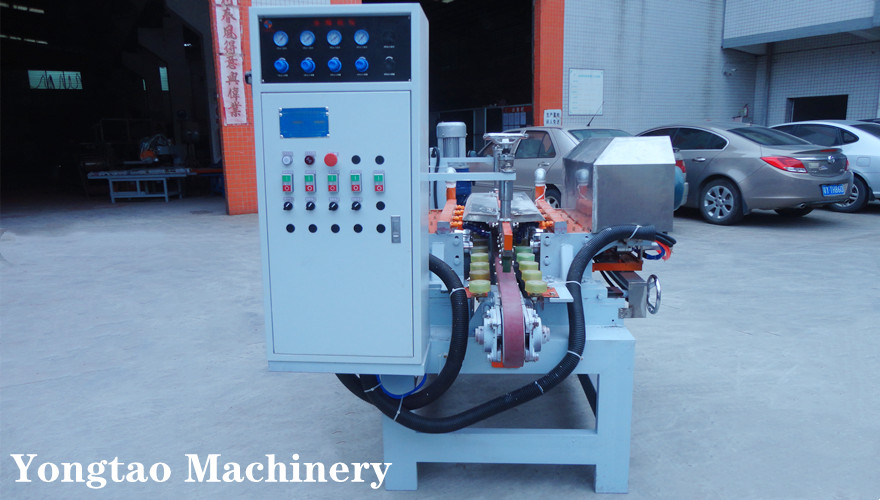

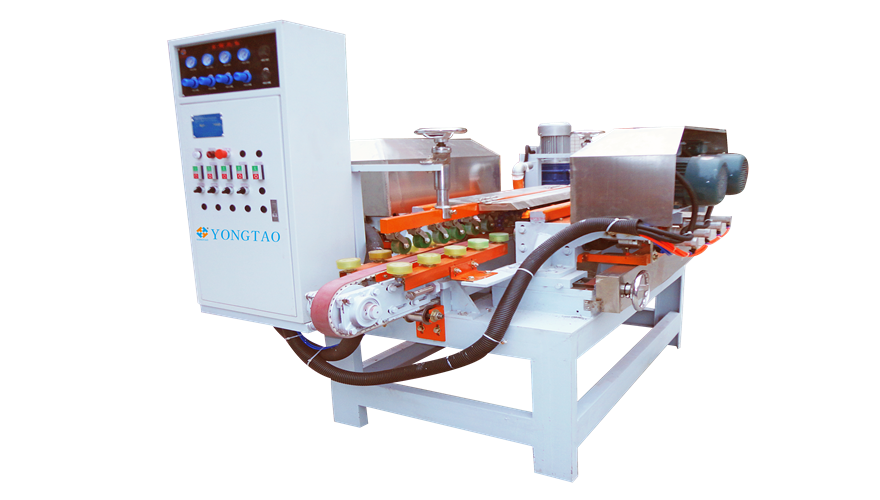

Description of YSR-2 4+4 stone Double Flat edge polishing machine

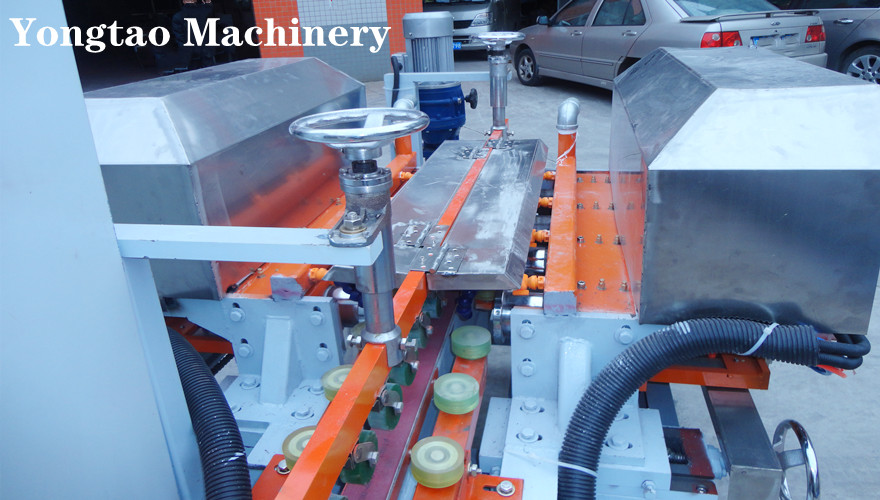

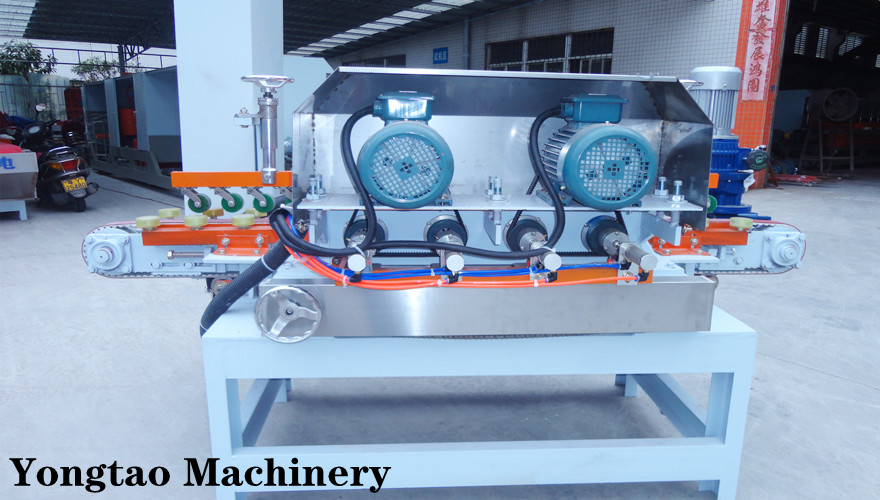

YSR-2 4+4 stone Double Flat edge polishing machine is a small stone edge polishing machine which made by YONGTAO machinery. It is mainly use for small size material both sides edge polishing. The polishing head push by pneumatic, which can accuracy polish via air pressure controlling. In this way, the edge effect is perfect, good brightness. During processing, the stainless steel cover protect the motor, to avoid the water entering the high speed motor. The both sides motor can be adjusted width by manual, very simple and convenient. The press structure adopt solid iron strip, install polyurethane elastic roller, ensure the material stably driving by conveyor belt. The machine has the advantage of reasonable structure design, simple operation, convenient maintenance. It is a new technology of stone straight edge polishing machine for marble, artificial stone, quartz etc. Also it has the high processing speed, low processing cost, small volume etc characteristics, is popular in the masses of stone processing factories. It is a good machine which can help you solve lots of problem of stone processing.

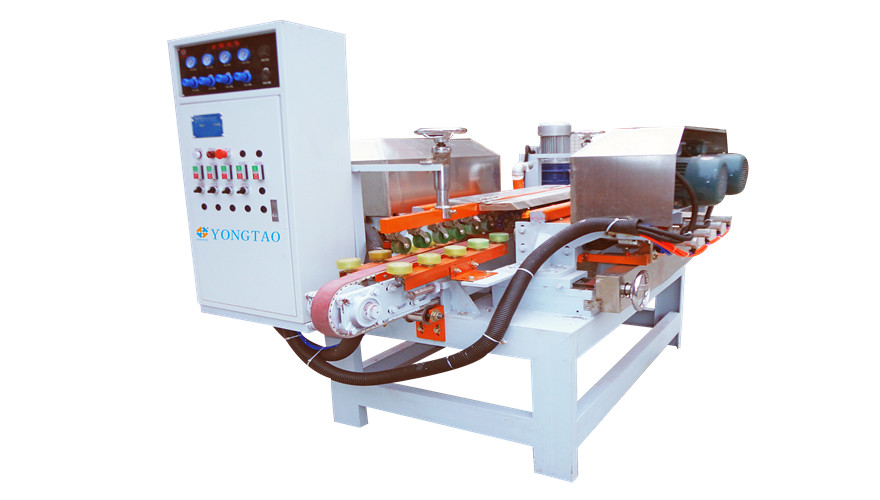

Stone Double Flat Edge Poliser:

Stone Double Flat Edge Poliser

Processing Material: Marble, quartz, artificial stone, granite etc

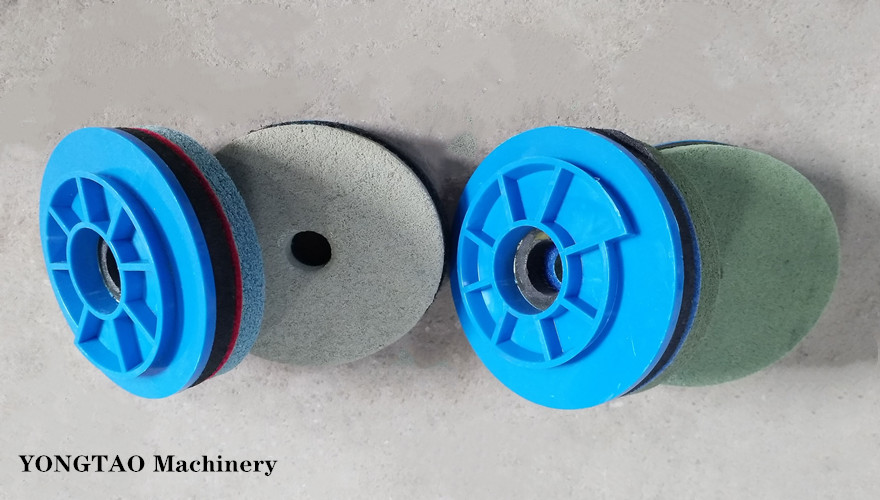

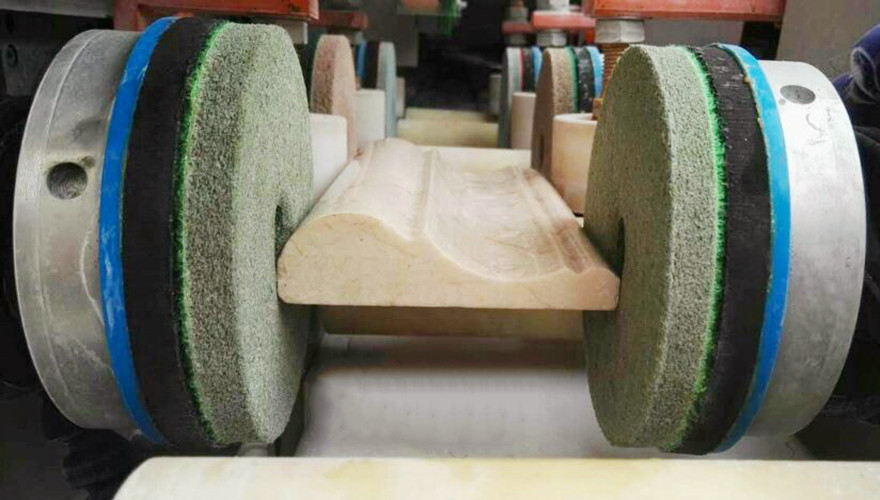

Polishing Disc: Grinding slice sponge slice (install on the polishing pad)

Parameter of YSR-2 4+4 stone Double Flat edge polishing machine

No

Name

Parameter

1

Conveyor belt width

55mm

2

Motor power of conveyor belt

1.1kw

3

Numbers of polishing head

4pcs*2

4

Diameter of polishing disc

125mm

5

Motor power of polishing head

2.2kwX4

6

Processing width

65-200mm

7

Processing thickness

10-80mm

8

Processing speed

0.5-2.5m/min

9

Total power

9.6kw

10

Electric consumption

8kw/H

11

Water consumption

300L/min

12

Size of machine

2.30m×1.50m×1.50m

13

Weight

About 1200kg
