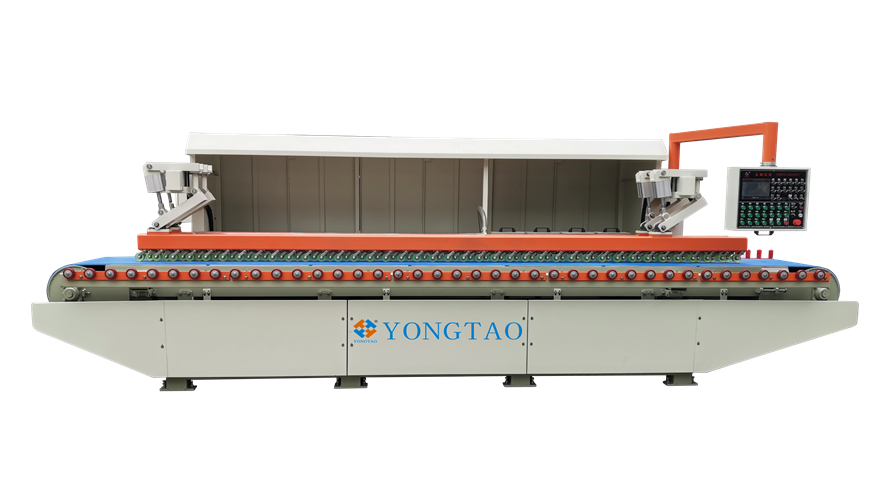

YCMP-2800 4+14 Quartz Countertop Flat Edge Polisher
YCMP-2800 4+14 is an advanced polisher for quartz and marble countertop flat edges from Yongtao. Structurally, this machine is paired with an R3 round edge polisher to meet the demand of customers who need combined techniques to process quartz or marble surfaces. Its unique performance lies in polishing flat edges and R3 round ones simultaneously. What’s more, YCMP-2800 4+14 can effectively grind off the excess edge of the material through its 4 squaring heads in front and perfectly smooth the surface using 14 flat polishing heads. Each of the machine’s motors relies on a special cylinder to drive the polishing head. It also enables you to control the pressure level and ensure the needed brightness. The more polishing heads are used, the better the processing effect. Generally, YCMP-2800 4+14 is designed to be simple to operate, providing you with enhanced stability and no hassle related to its maintenance.
Processing materials: quartz, marble, and artificial stone
Function: accurate polishing of flat edges
Key characteristics:
2.The machine has a stainless steel protection cover to prevent water and dust from getting into the motor.

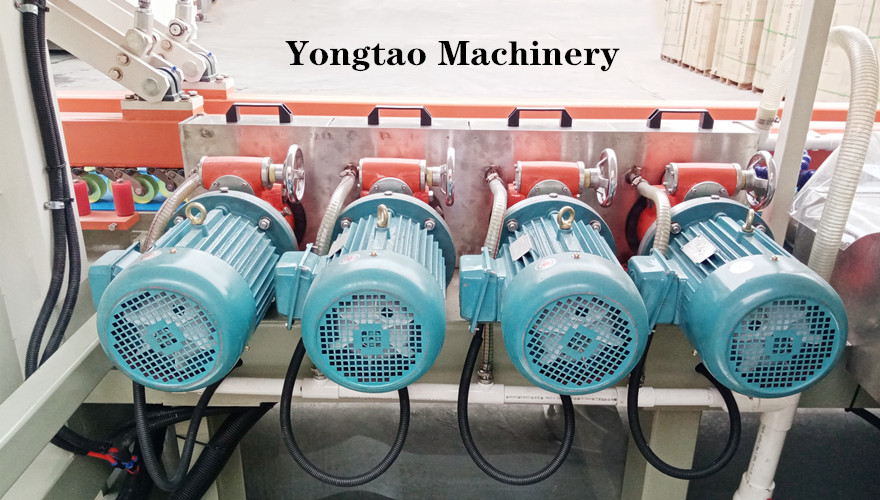

3.Squaring heads use the diamond material, which greatly improves the processing speed.
4.Its press structure relies on an air cylinder to drive rollers to ensure slab stability on the conveyor belt.
5.The baffle can be adjusted to fit different width options of the slabs to be processed.

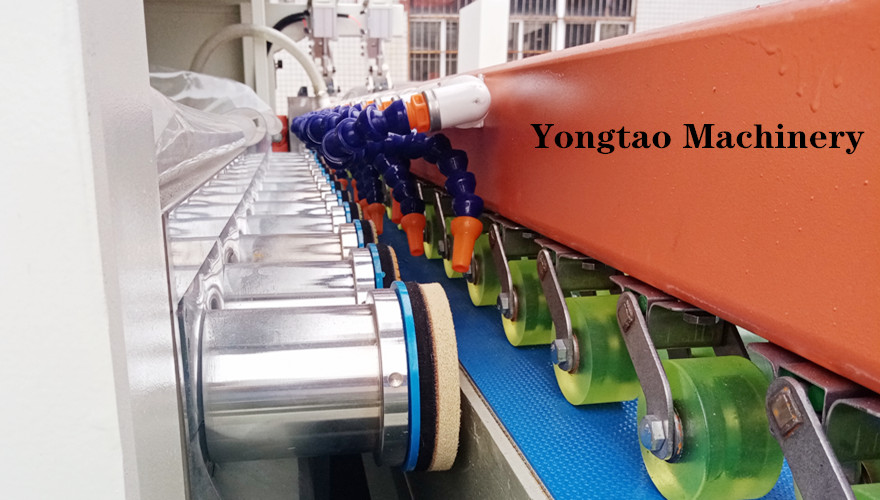

6.14 polishing heads use special cylinders to drive the grinding head up and down, which contributes to the polishing brightness.
7.Each polishing head has a snail lock polishing pad connected to the grinding cup and easy-to-replace slice on the base.
8.The conveyor belt is driven by an inverter to fit various material processing needs.
|
No. |
Name |
Parameter |
|
1 |
Model No. |
YCMP-2800/4+14 |
|
2 |
Squaring head |
4pcs |
|
3 |
Diameter of squaring head |
Ø250mm |
|
4 |
Motor power of squaring head |
4kw |
|
5 |
Polishing head |
14pcs |
|
6 |
Diameter of polishing head |
Ø125mm |
|
7 |
Motor power of polishing head |
0.75kw |
|
8 |
Processing width |
200-3000mm |
|
9 |
Processing thickness |
10-40mm |
|
10 |
Processing speed |
0.5-2.5m/min |
|
11 |
Total power |
28kw |
|
12 |
Size of machine |
1900mm*6150mm*2000mm |
|
13 |
Weight |
3500kg |
-
