Description of YSMDP-250 4+2+2 Quartz Double Flat Bevel Edge Polishing Machine

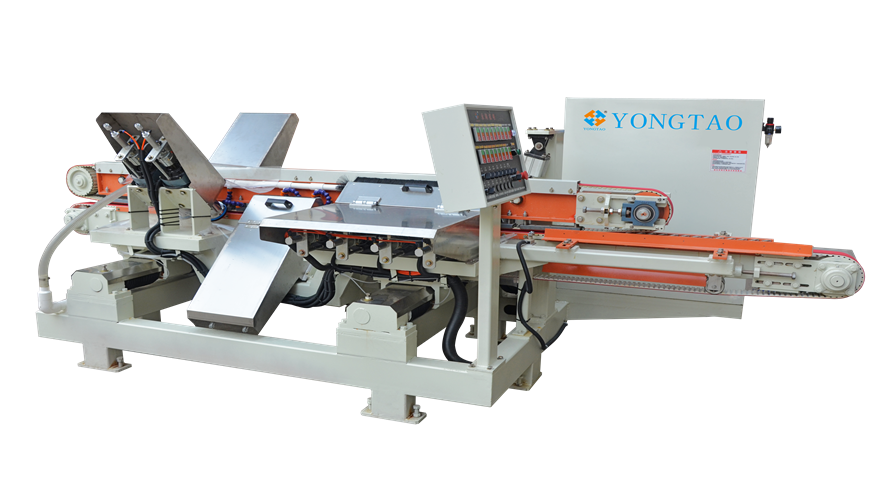

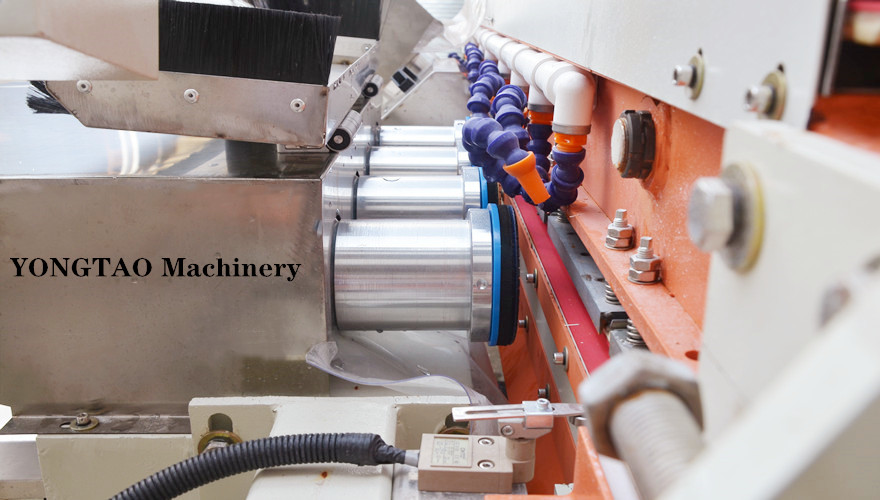

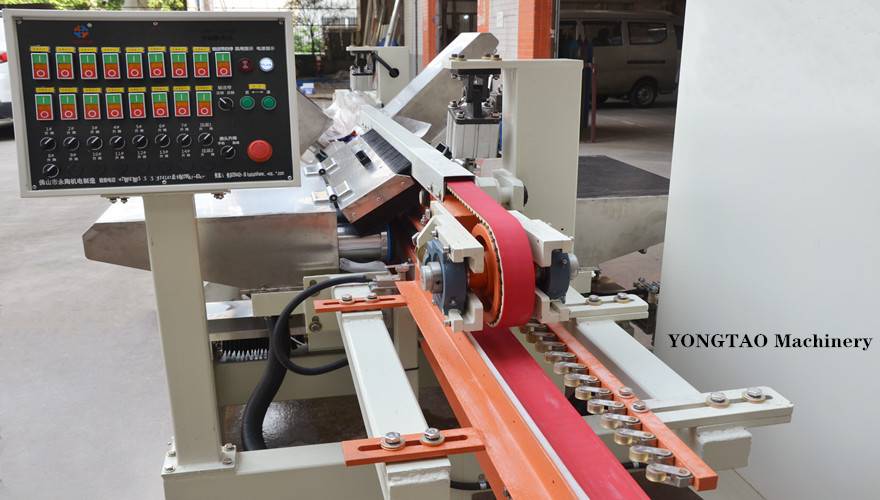

YSMDP-250 4+2+2 Quartz Double Flat Bevel Edge Polishing Machine,put the material on the conveyor belt, the bottom belt will transport the material into the working area, and the top belt will press the material. At the front of machine, there are 4 straight edge polish heads on each side. They can polish both sides at the same time. At the middle of machine, there are 2 bottom chamfer heads on each size, and the end of machine, there are 2 top chamfer heads on each size as well. Each polishing head is independently controlled by program. When the material come into the working area, the polishing heads will work automatic. The machine have the advantage of running stable, good waterproof, simple operation. It is the best choice for quarts samples edge polishing.

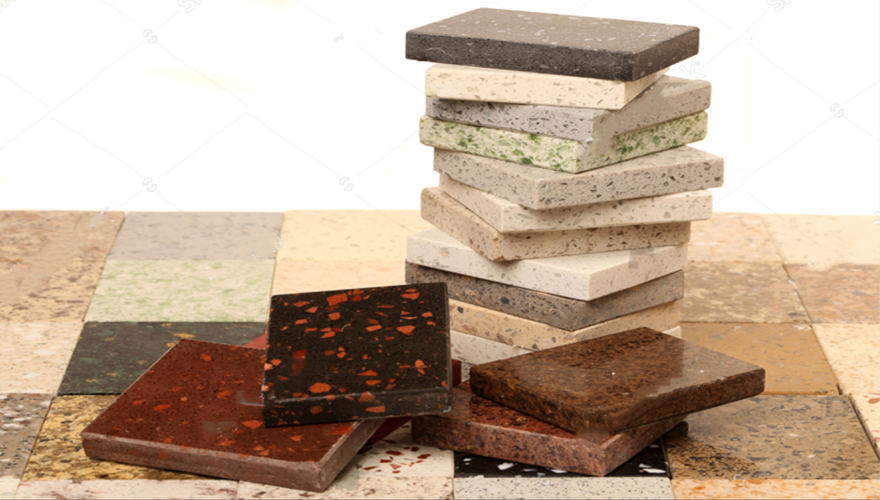

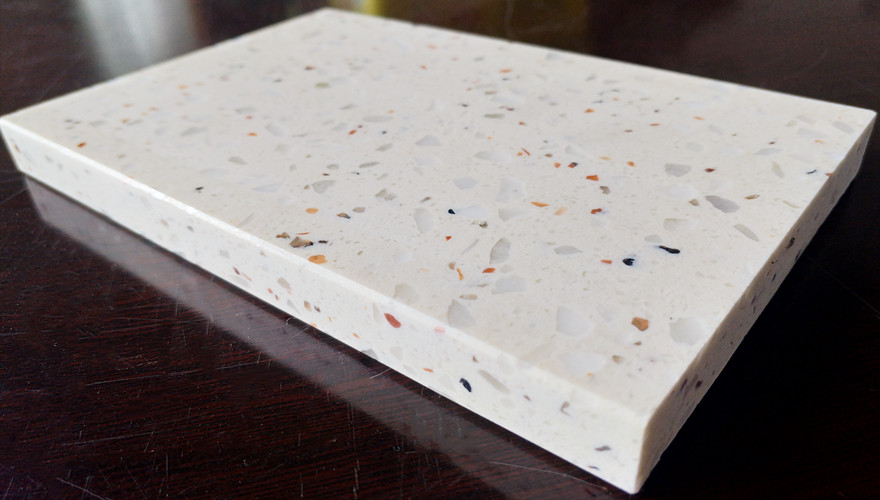

Processing Materials: quartz, marble, artificial stone, etc stones.

Paramete of YSMDP-250 4+2+2 Quartz Double Flat Bevel Edge Polishing Machine

No.

Name

Parameter

1

Straight edge polishing head

4pcs*2

2

Bottom chamfer polishing head

2pcs*2

3

Top chamfer polishing head

2pcs*2

4

Motor power of polishing head

0.75kw

5

Diameter of polishing pad

95-125mm

6

Conveyor belt motor

1.5kw

7

Conveyor belt width

75mm

8

Press belt width

50mm

9

Processing width

100-250mm

10

Processing speed (per minute)

1-3m

11

Processing thickness

10-30mm

12

Press method

Pneumatic

13

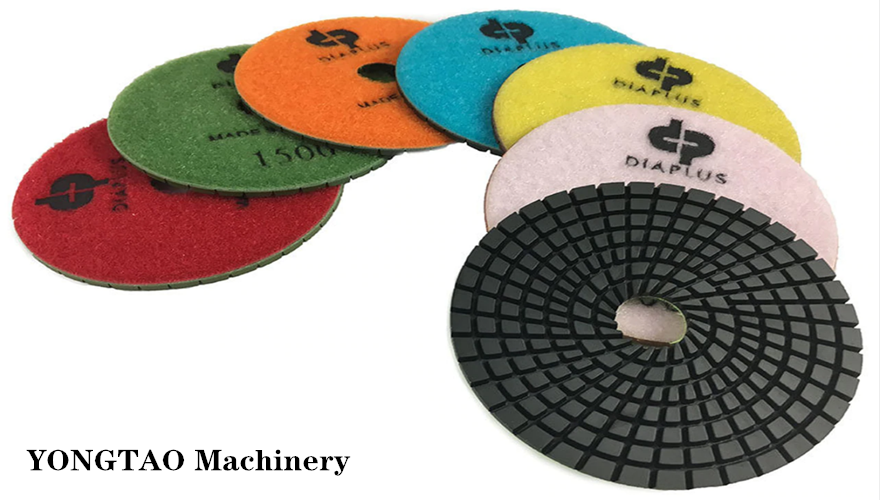

Polishing pad

Grind slice/ sponge slice

14

Total power

13.5kw

15

Size of machine

4m*1.7m*1.3m

16

Weight

About 2000kgs
