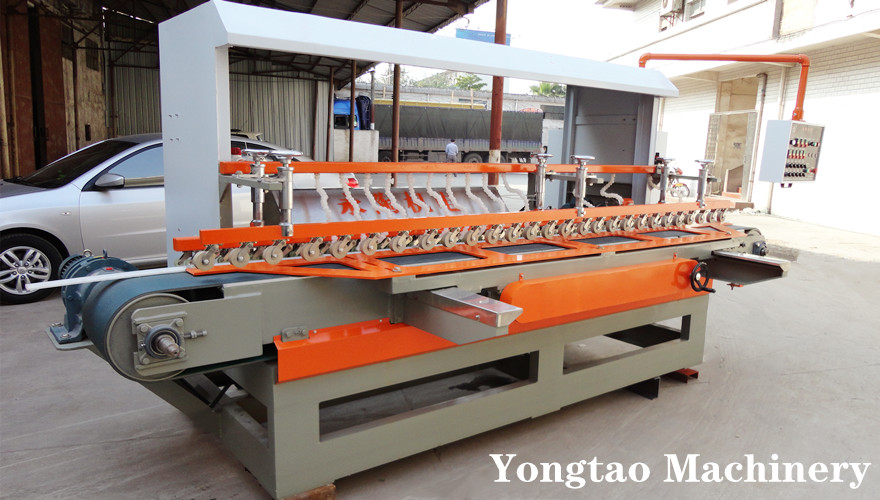

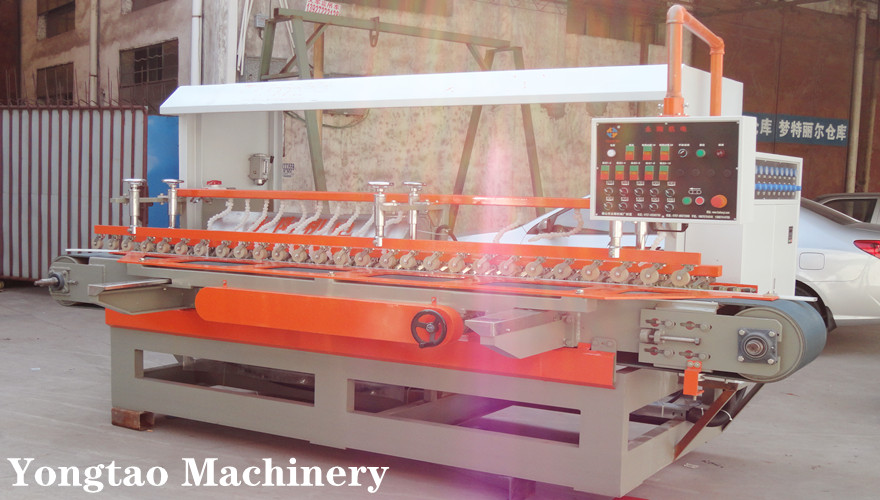

Description of YSMDP-800 1+2+8 Stone Bevel Edge Polishing Machine

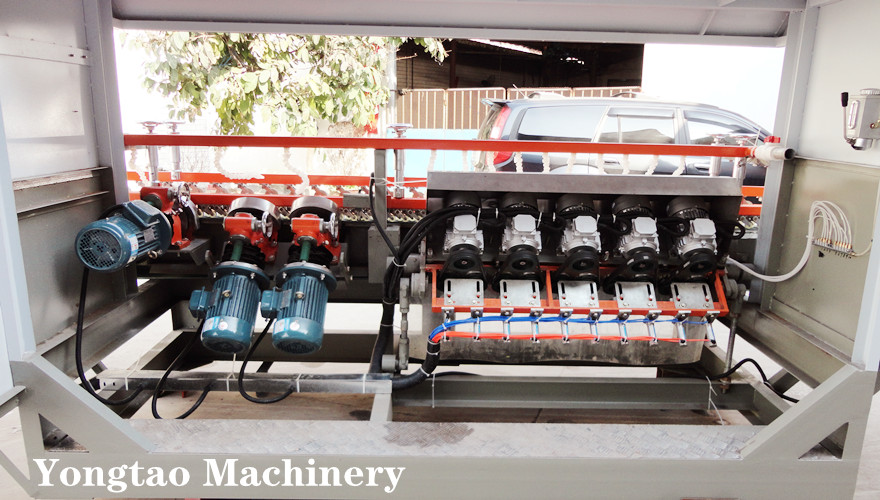

YSMDP-800 1+2+8 Stone Bevel Edge Polishing Machine is the latest chamfering machine by Yongtao machinery for 45 degree edge chamfer and polishing. The machine have one squaring wheel, two 45 degree chamfer wheels and eight 45 degree polishing wheels. It can process marble, granite, artificial stone, quartz etc. The squaring wheel and chamfer wheel use diamond material. The polishing head use air cylinder, polishing cup and polishing pad assembly. The machine can automatically polish the same width slab in one batch processing. The squaring wheel and chamfer wheel are adjusted by manual, while the polishing wheels are controlled by air cylinder though PLC. This machine have the advantage of reasonable design, simple operation, high processing speed, good effect of products. It is popular in lots of stone processing factories.

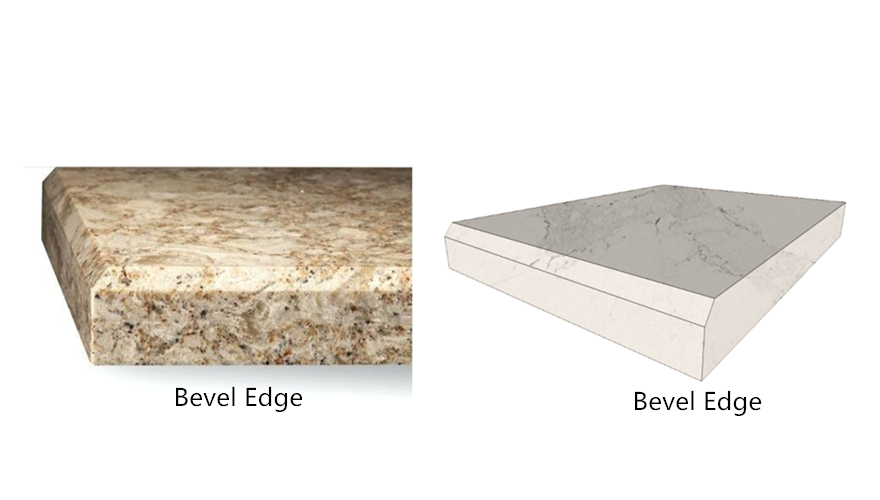

Stone Bevel Edge Polishing Machine:

Stone Bevel Edge Polishing Machine


Technical Parameter of YSMDP-800 1+2+8 Stone Bevel Edge Polishing Machine

No

Name

Parameter

1

Numbers of squaring wheel

1pc

2

Motor power of squaring wheel

3kw

3

Numbers of chamfer wheel

2pc

4

Motor power of chamfer wheel

3kw

5

Numbers of 45 polishing head

8pc

6

Diameter of polishing disc

125mm

7

Motor power of polishing head

2.2kwX4pc

8

Pressing width

80-800mm

9

Processing thickness

10-60mm

10

Processing speed

1-5.0m/min

11

Total power

20.05kw

12

Electric consumption

18kw/H

13

Water consumption

450L/min

14

Size of machine

4.20m×2.00m×1.80m

15

Weight

3000kg

We are professionalchamfering machine manufacturers and we provide high-quality Marble chamfering machine for you.
