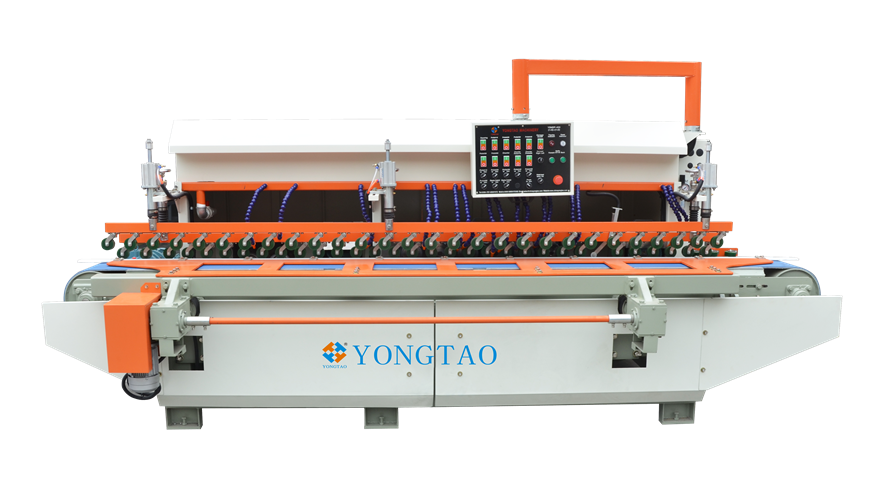

YSMDP-800 1+6-1+2 Stone Flat Bevel Edge Polishing Machine
YSMDP-800 1+6-1+2 Stone Flat Bevel Edge Polishing Machine
Description of YSMDP-800 1+6-1+2 Stone Flat Bevel Edge Polishing Machine
YSMDP-800 1+6-1+2 Stone Edge Polishing Machine,this machine is applied to process the flat edge and bevel edge for the marble, granite stone slabs. Put the slab on the conveyor belt, the conveyor will drive the material into working area. There are 1 flat squaring head, and 6 flat polishing heads and 2 pneumatic chamfer heads. The machine can do flat polishing and chamfer in one time. Max processing width is 800mm. The press wheel adopts pneumatic lifting device, using the PU materials, suit for marble, quartz, granite and so on. The process width can be adjusted by electrical controlled baffle. Also there are other functions can be realized on this machine, we can make the customized machines according to the requirement by customers.
stone edge polisher:

Processing material:
1. Stone
2. Marble
3. Granite
Parameter of YSMDP-800 1+6-1+2 Stone Edge Polishing Machine
No. | Name | Parameter |
1 | Nos. Of flat squaring head | 1pc |
2 | Nos. of flat polishing head | 6pc |
3 | Nos. of chamfer head | 1pc |
8 | Nos. of chamfer polishing head | 2pc |
9 | Processing width | 70-800mm |
10 | Diameter of polishing wheel | 125mm |
11 | Processing speed | 0.5-3m/min |
12 | Max processing thickness | 40mm |
13 | Total power | 15kw |
14 | Air consumption | 30L/min |
15 | Water consumption | 300L/min |
16 | Size of machine | 4.8m*1.8m*1.7m |
17 | Weight | About 3000 kg |
-
