YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine

YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine

marble flat bevel edge polishing machine-YONGTAO Stone Machine
YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine
  • YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine
  • YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine
  • YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine
  • YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine
  • YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine
  • YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine
  • YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine

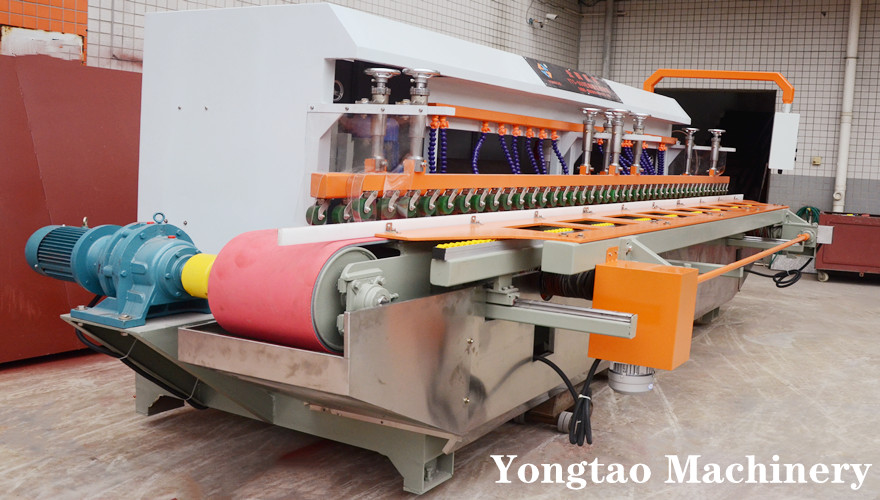

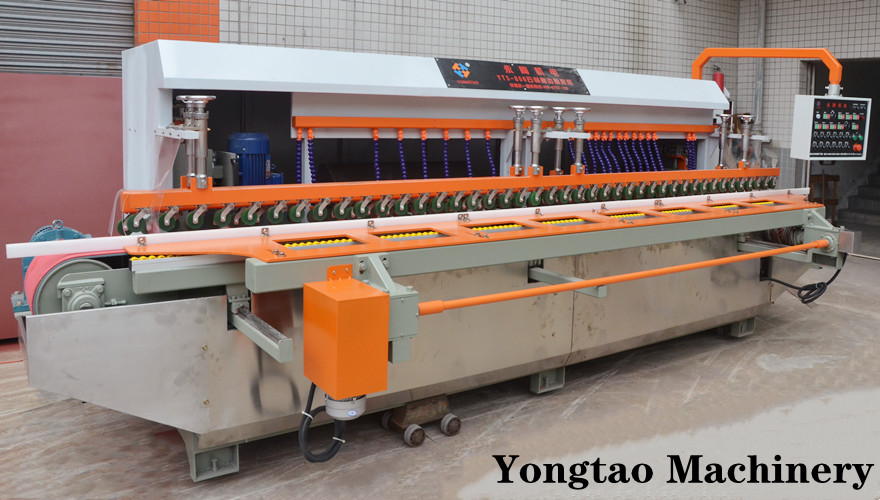

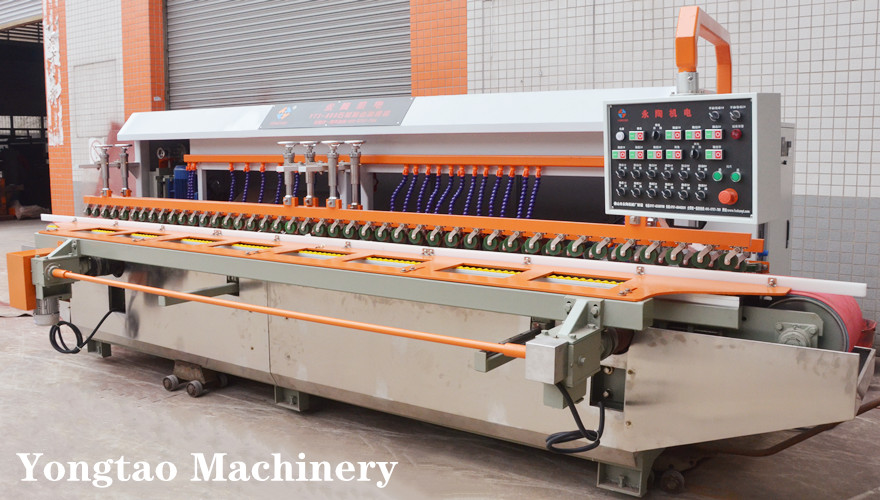

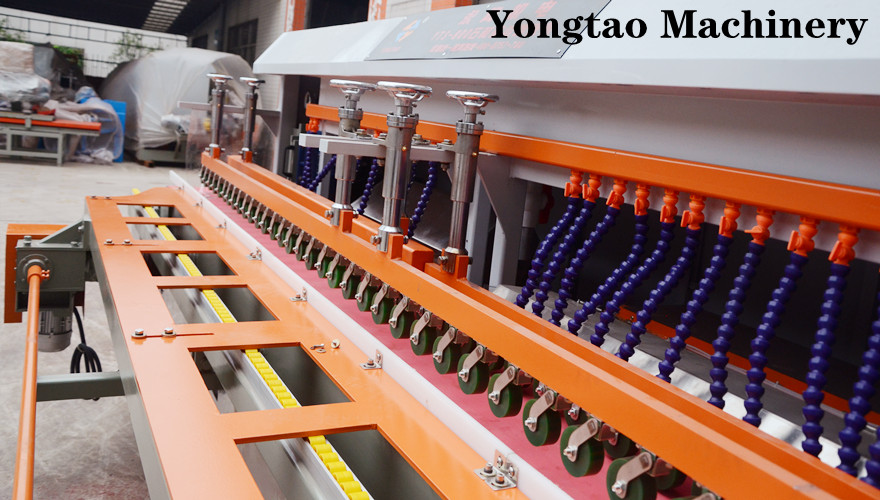

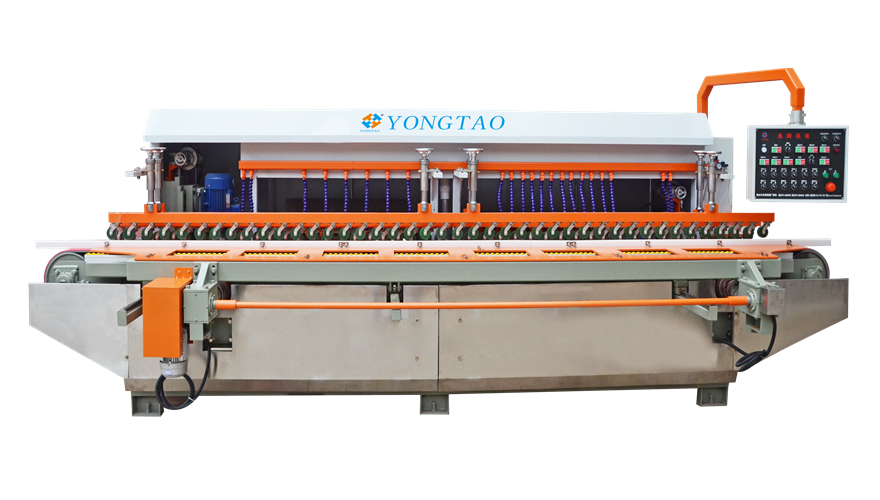

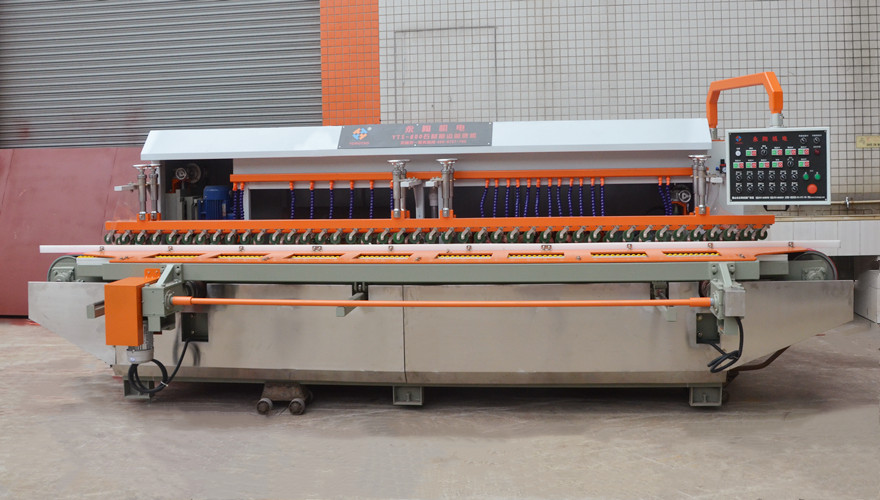

Description of YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine
YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine is one of the latest horizontal stone polishing machine and automatic beveling machine by Yongtao machinery. The machine can process artificial stone, marble, granite, quartz etc. It has 1 piece 1diamond grind wheel and 6 pieces polishing wheel to polish flat edge. At the behind of machine  has 2 pieces of 45 degree chamfer wheels and 6 pieces of chamfer polishing wheels to make 45 degree bevel edge. The polishing head drive by pneumatic device.so we suggest that prepare a air compressor if the factory didn’t have any compressor.The machines have the advantage of reasonable designing, simple operation, easy to maintain, high highly speed of output, are popular by lots of stone processing factory. We can provide competitive bevelling machine price for you.

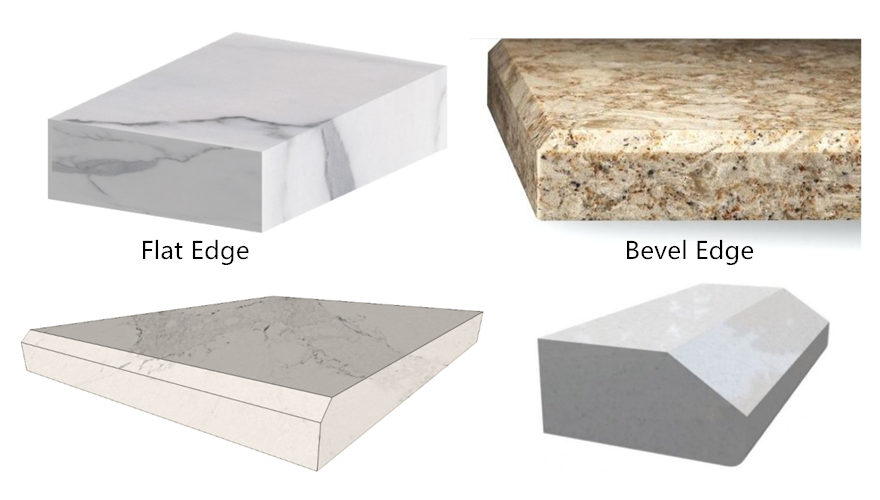

Stone Flat Bevel Edge Polisher:

Stone Edge Polishing Machine


Technical Parameter of YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine

No

Name

Parameter

1

Numbers of squaring head

1pc

2

Motor power

3kw

3

Numbers of chamfer head

2个

4

Motor power

3kw

5

45 degree chamfer polishing

6个

6

Diameter of polishing wheel

125mm

7

Chamfer motor power

2.2kwX3pcs

8

Numbers of flat polishing head

6个

9

Polishing head motor

2.2kwX3pcs

10

Processing width

80-800mm

11

Processing thickness

10-60mm

12

Processing speed

1—5.0m/min

13

Total power

20.05kw

14

Electric consumption

18kw/H

15

Water consumption

450L/min

16

Size of machine

4.20m×2.00m×1.80m

17

Weight

3000kg
