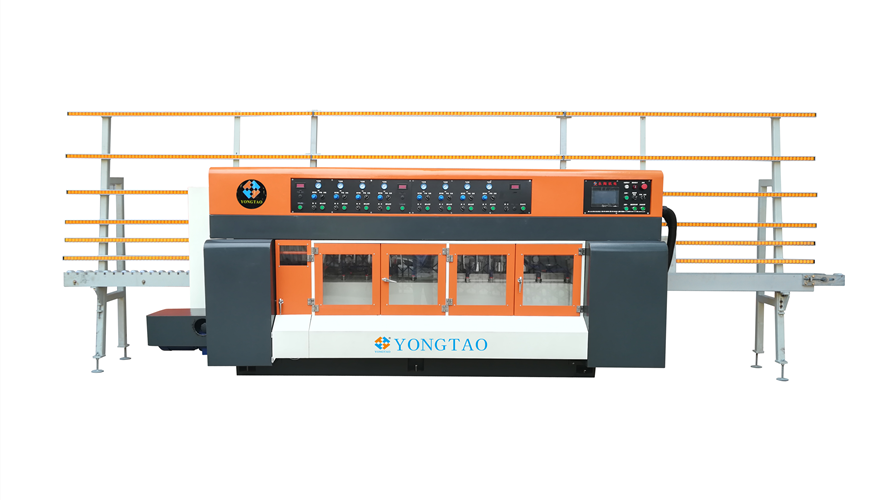

YSMD 11 Head Automatic Granite Flat Bevel Edge Polishing Machine
Description of YSMD 11 Head Automatic Granite Flat Bevel Edge Polishing Machine

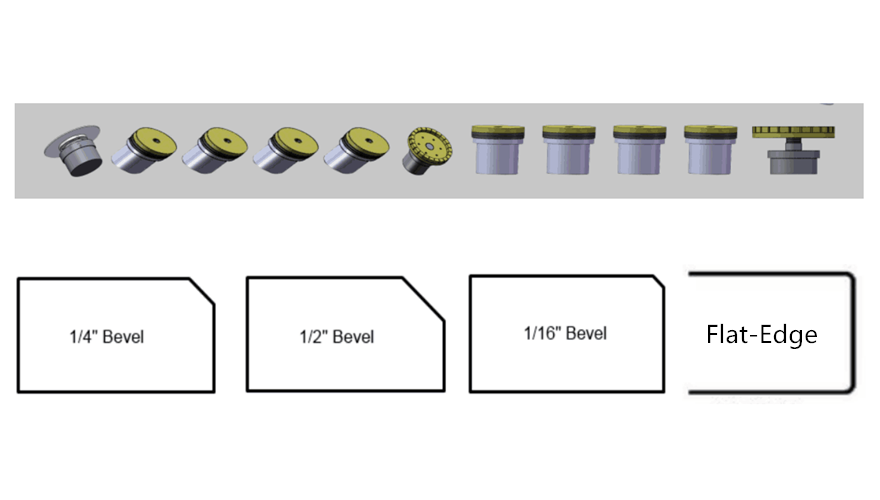

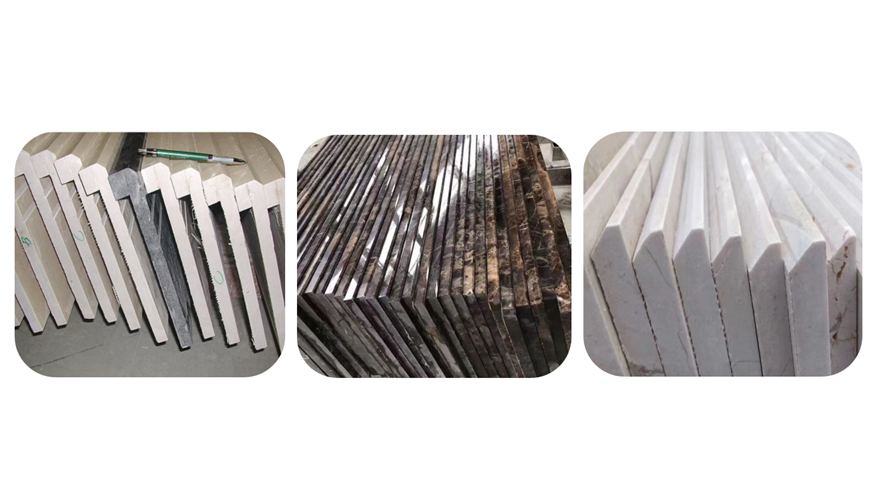

YSMD 11 Head Automatic Granite Flat Bevel Edge Polishing Machine,This granite edge machine is one of the latest models of YONGTAO Machinery.The machine is mainly used to process all kinds of single or double thick slab for flat edge, bevel edge, chamfer. It rely on the polished surface to locate, solving the problem of unevenness chamfering since different thickness. The polishing head adopt snail buckle and paste grinding slice, fast replace. The polishing can be automatic controlled, high efficiency, high precision, low cost. It’s a popular machine in the market. We have granite edge machine for sale.
Marble Bevel Edge Polisher:

Parameter of YSMD 11 Head Automatic Granite Flat Bevel Edge Polishing Machine
No. | Name | Parameter |
1 | Nos. of squaring head | 1pc |
2 | Nos. ofpolishing head | 4pc |
3 | Nos. Of 45 degree chamfer head | 1pc |
4 | Nos. Of chamfer polish head | 4pc |
5 | Diameter of polishing wheel | 125mm |
6 | Processing width | 100-2800mm |
7 | Max processing thickness | 60mm |
8 | Processing speed | 0.5-3m/min |
9 | Total power | 18kw |
10 | Air consumption | 30L/min |
11 | Water consumption | 300L/min |
12 | Size of machine | 7.5m*1.25m*2.3m (with frame) |
13 | Weight | About3500kg |
