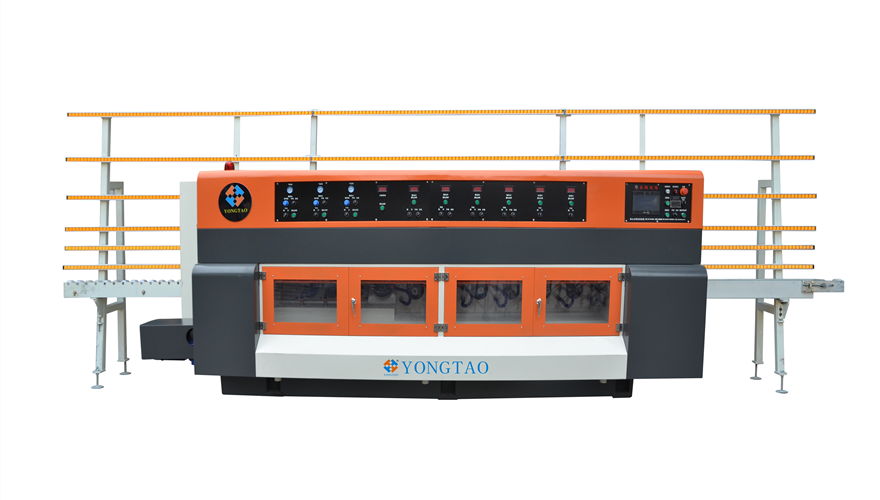

Description of YSMD 6+4 Multifunction Marble Edge Profile Chamfer Polishing Machine
YSMD 6+4 Multifunction Marble Edge Profile Chamfer Polishing Machine,This marble edge polishing machine is the new generation product of YONGTAO Machinery.It can process single thick slab and double thick slab for all kinds of edge shapes,such as 180 degree round edge, chamfer etc.This machine have 2 heads to profile,and 3 heads to polish.The polishing wheel adopts automatic control system.It great save the labor cost, and improve the stability of product effect. We have marble polishing machine for sale.

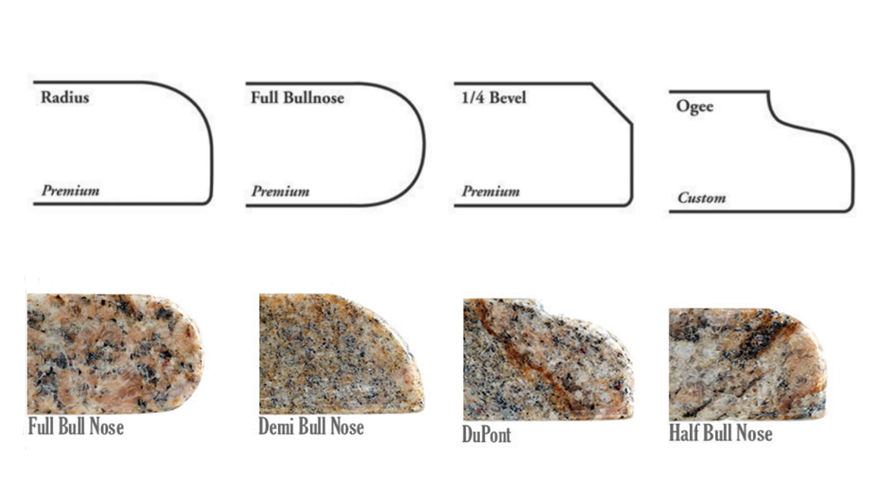

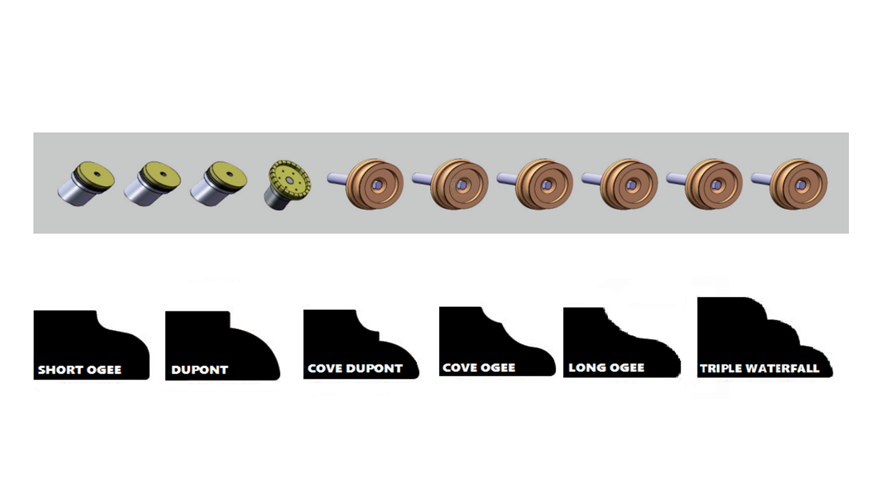

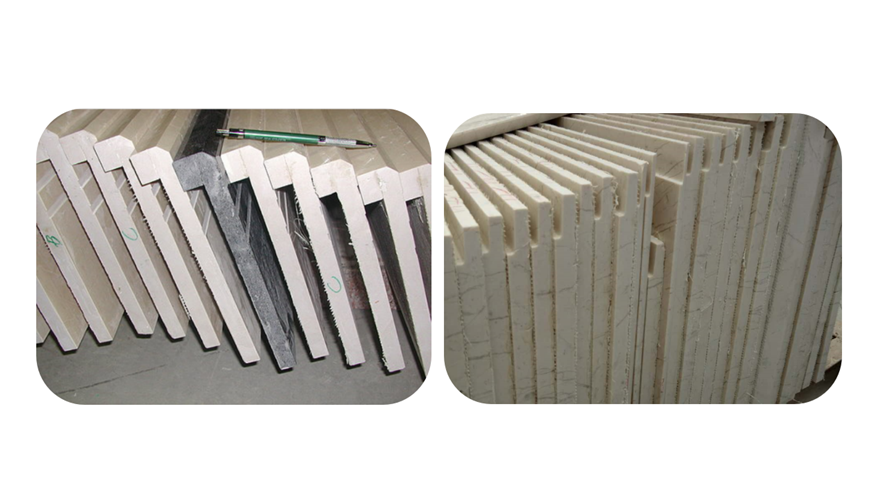

Stone Edge Shapes By YSMD 6+4 Multifunction Marble Edge Profile Chamfer Polishing Machine
1. Pencil Edge 2. chamfer 3. bevel 4. bevel edge 5. 1/2" bevel 6. 1/4" bevel 7. 1/8" bevel 8. Half bevel 9. Small Bevel 10. Large Bevel 11. 3/16" bevel 12. 3/8" bevel 13. 3/4" bevel 14. 45 Bevel 1/4" Rad. 15. 1-1/2"Laminated Bevel 16. ogee bevel 17. ogee Edge 18. Waterfall 19. Bevel Top & Bottom 20. Half Bullnose 21. Demi Bullnose 22. Full Bullnose 23. Ogee Bullnose 24. Dupont Bullnose 25. 1-1/2" Laminated Bullnose 26. Double Radius 27. Double Cove 28. 1/4" Radius 29. 1/8 Radius 30. 5/8" Radius 31. 1/4" Round 32. 1/8" Round 33. 3/8" Round 34. 3/16" Round 35. Round Top & Bottom 36. Standard Ogee 37. Dupont Edge 38. Crescent Pencil edges 39. triple pencil edge 40. Offset Ogee 41. Offset Ogee Bullnose 42. Offset Dupont 43. Offset Dupont Bullnose 44. Cove Dupont 45. Cove Ogee 46. Stair Tread 47. Lipping

Parameter of YSMD 6+4 Multifunction Marble Edge Profile Chamfer Polishing Machine

No.

Name

Parameter

1

Nos. of profile head

2pc

2

Motor power of profile head

5.5kw

3

Nos. ofpolish head

4pc

4

Motor power of polish head

3kw

5

Diameter of wheel

Φ150-200mm*30mm

6

Motor power of profile head

5.5kw

7

Nos. Of chamfer head

1pc *3kw

8

Nos. Of chamfer polish head

3pc *0.75kw

9

Processing width

100-2800mm

10

Diameter of polishing wheel

95mm

11

Processing speed

0.5-3m/min

12

Max processing thickness

60mm

13

Total power

36.05kw

14

Air consumption

30L/min

15

Water consumption

300L/min

16

Size of machine

7.5m*1.25m*2.3m (with frame)

17

Weight

About4500 kg
