YCYP-2500 Quartz Countertop Edge Polishing Machine

YCYP-2500 Quartz Countertop Edge Polishing Machine

Quartz Countertop eased edge Polishing Machine-YONGTAO Stone Machine
YCYP-2500 Quartz Countertop Edge Polishing Machine
  • YCYP-2500 Quartz Countertop Edge Polishing Machine
  • YCYP-2500 Quartz Countertop Edge Polishing Machine
  • YCYP-2500 Quartz Countertop Edge Polishing Machine
  • YCYP-2500 Quartz Countertop Edge Polishing Machine
  • YCYP-2500 Quartz Countertop Edge Polishing Machine
  • YCYP-2500 Quartz Countertop Edge Polishing Machine
  • YCYP-2500 Quartz Countertop Edge Polishing Machine
Description of YCYP-2500 Quartz Countertop Edge Polishing Machine

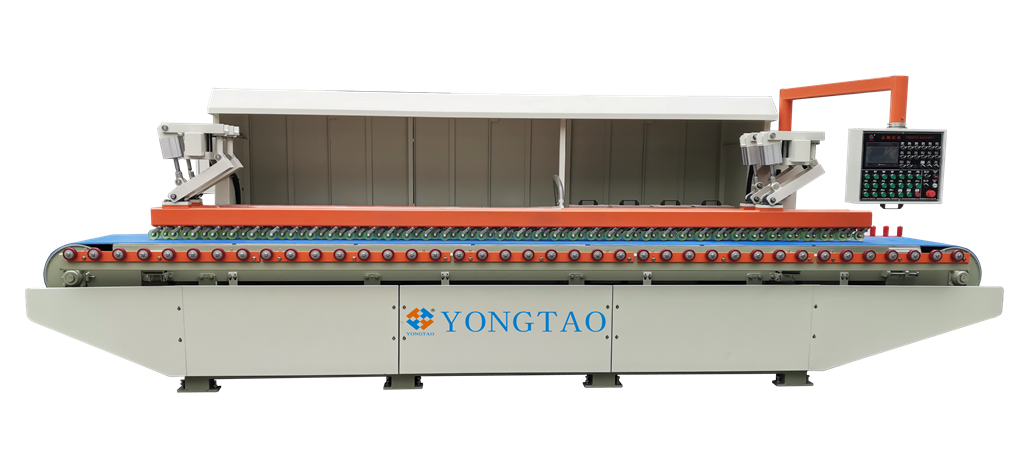

YCYP-2500 Quartz Countertop Edge Polishing Machine,The machine is mainly used to process the quartz countertop edges. It can do R3 round edge, calibrating, grooving, flat polishing. The machine have special pressure structure, each press roller drive bu independent cylinder. The structure can provide enough pressure when process different width slab at same time, to make sure whole processing is stable. It can be used as quartz straight edge polisher, quartz flat edge polisher, quartz eased edge polisher, quartz pencil round polisher and quartz double radius polisher.

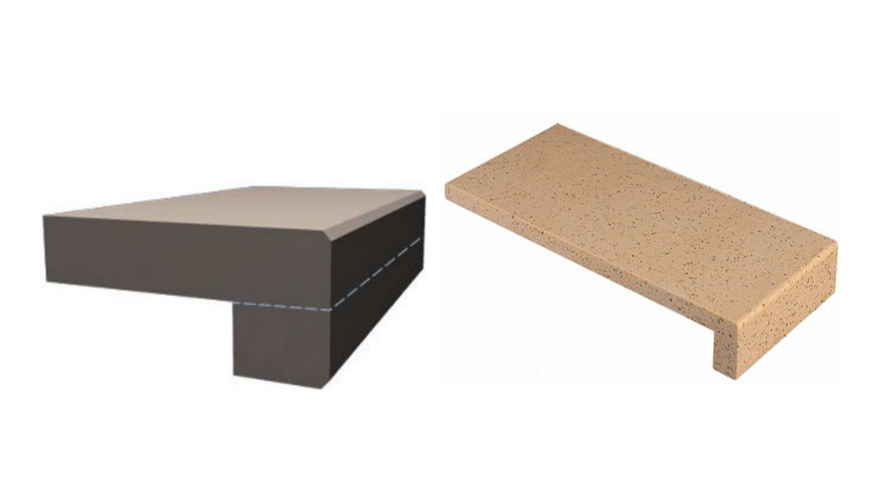

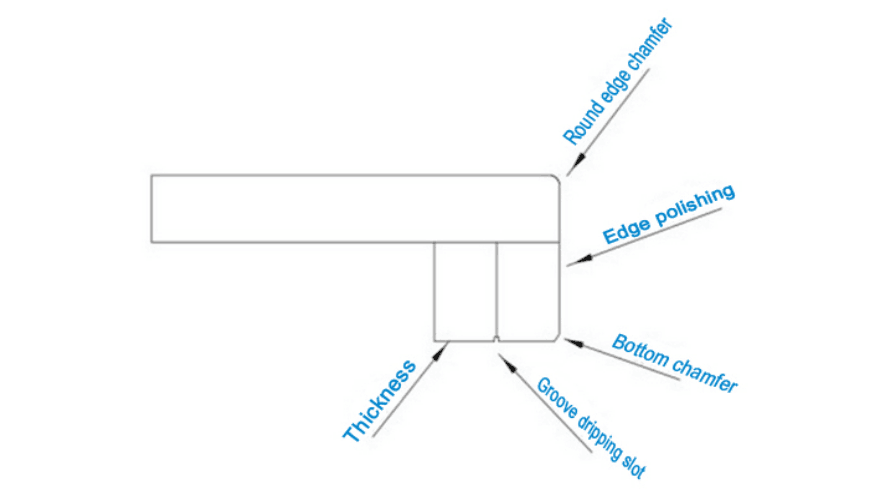

Stone Edge Shapes by YCYP-2500 Quartz Countertop Edge Polishing Machine
1. Pencil Edge 2. chamfer 3. bevel 4. bevel edge 5. 1/8" Radius 6. 1/8" Round 7. 3/16" Round 8. Round Top & Bottom 9. Eased edge 10. Flat edge

Parameter of YCYP-2500 Quartz Countertop Edge Polishing Machine

No.

Name

Parameter

1

Nos. Of flat trimming head

1pc

2

Nos. offlat polish head

6pc

3

Nos. Of calibrating head

1pc

4

Nos. Of calibrating polishing head

2pc

5

Nos. Of groove head

1pc

6

Nos. Of R3 round polishing on top

2pc

7

Nos. Of R3 round polishing on bottom

6pc

8

Processing width

600-2500mm

9

Processing speed

0.3-4m/min

10

Max processing thickness

60mm

11

Total power

32.7kw

12

Air consumption

50L/min

13

Water consumption

400L/min

14

Size of machine

7.5m*2.1m*1.8m

15

Weight

About6800 kg
