YSQS-1500 Two Heads Stone Round Table Cutting Machine
YSQS-1500 Two Heads Stone Round Table Cutting Machine

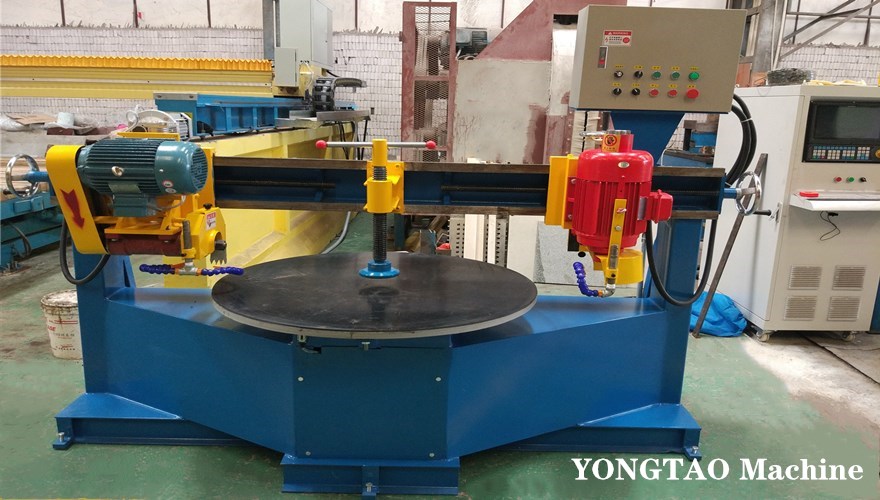

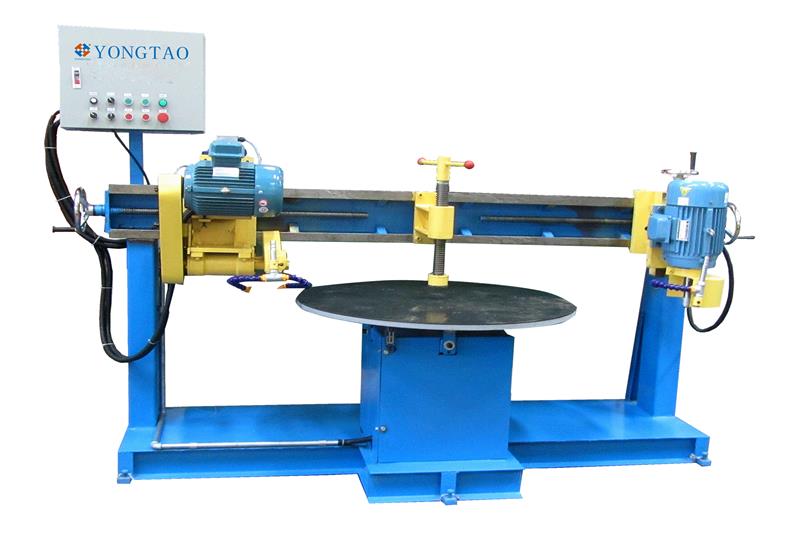

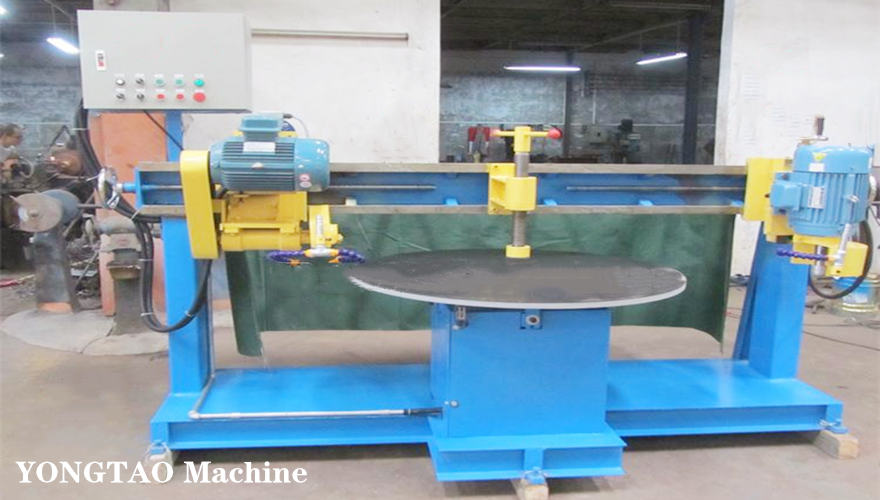

The two heads stone round table cutting machine is China Yongtao Machinery according to the actual needs of customers for research and development to produce a special round-table contour cutting machine. The machine can cut ceramic tile and stone table. It has two cutting head, which can manually adjustment. The cutting head adopts electrical lifting structure, the profile head can be adjusted by manual as well. When the machine running, the stone table will rotate on the platform, and the blade will cut the edge to become a round table. This machine can process stone table, ceramic tile table.
The stone round table cutting machine adopts bridge structure, each side have a cutting head, through rotating the work platform, the machine can cut and profile edge on one time, greatly improve the produce efficient. This machine has the advantage of simple operation, stable working, economic.
stone round table cutting machine:

Parameter of YSQS-1500 Two Heads Stone Round Table Cutting Machine
No. | Name | Parameter |
1 | Main motor power | 4kw +3kw |
2 | Numbers cutting head + profile head | 2pcs |
3 | Diameter of worktable | Ø1000mm |
4 | Size of worktable | Ø500-1500mm |
5 | Diameter of wheel | Ø150*30mm |
6 | Diameter of blade | Ø150*20mm |
7 | Processing size | 400-1500mm/400-1800mm |
8 | Total power | 7kw |
9 | Weight | 1500kg |
10 | Size of machine | 2500*1200*1700mm |
11 | Processing material | Tile, stone, marble, granite, quartz, sintered rock |
-
