Fully Automatic Marble Moulding Polishing Machine
YTYP-1200/7+14 Porcelain Tile Bullnose Machine

Fully Automatic Marble Moulding Polishing Machine

  Mar 05-2019
Fully Automatic Marble Moulding Polishing Machine
According to the production, there are two kinds of Stone Profiling Machine:
1. little quantity demand, but many style of products
2. Large quantity demand and many style of products, suit for large quantity production

How to choice a appropriate stone line processing machine?
1. If little quantity demand, the suggestion is that buy stone line profile modeling machine
2. If large quantity demand, the suggestion is that buy automatic Stone Profiling Machine.

Daily output contrast between automatic Stone Profiling Machine, Marble Moulding Machine and bridge type stone edge grinding machine:
1. Automatic Marble Moulding Machine daily output reach 200-300m per 8 hour, product with good effect, good touch feel, tidy seams, brightness reach 90-120 degree, don’t need make waxing, also don’t need adjust blades, fast processing speed.
2. Marble Moulding Machine daily output 30-50m, just rough grinding, need grind and polishing by manual, seams untidy, brightness dark. The machine suit for processing many style of products, but small quantity demand in each style.
3. Bridge type stone edge grinding machine daily output 60-100m, the machine only have one wheel, so it need change the wheel often to make grind. In this case, the time was wasted in frequent changing grinding wheel, so the processing speed very slow. If you want to improve the speed, you need to buy few machines: one machine to grind shape, one machine to make rough grinding, one machine to polishing. So at least required three machines to process at the same time. In the condition of without changing grinding wheel, the speed will be improved. While the effect of finished product are not better than automatic stone line polishing machine. What’s more the low output and large labour cost. So if the quantity demand small, style of products not too much, the bridge type stone edge grinding machine will be appropriate. But if large quantity demand, the suggestion is that buy automatic stone line polishing machine.

Automatic stone Molding polishing machine can be divided into:
1. Marble Molding Machine
2. Stone Profiling Machine
3. Marble Straight Profiling Polishing Machine

Stone Molding forming machine (forming shape) can be divided into:
1. 4 heads Stone Profiling Machine
2. 5 heads Stone Profiling Polishing Machine
3. 6 heads Marble Straight Profiling Machine

Stone line forming and polishing machine can be divided into:
1. 3+5 Marble Profiling Polishing Machine (3 heads forming, 5 heads polishing)
2. 4+4 Marble Profiling Polishing Machine (4 heads forming, 4 heads polishing)
3. 3+6 Marble Profiling Polishing Machine (3 heads forming, 6 heads polishing)
4. 3+7 Marble Profiling Polishing Machine (3 heads forming, 7 heads polishing)
5. 4+6 Marble Profiling Polishing Machine (4 heads forming, 6 heads polishing)

Stone lin polishing machine (only polishing) can be divided into:
1. 6 heads Stone Profiling Machine
2. 8 heads Stone Profiling Machine
3. 9 heads Stone Profiling Machine

Automatic stone line polishing machine proudction line can be divided into:
1. 4+8 (12 heads) automatic Marble Molding Machine (4 heads forming machine 1 set, 8 heads polishing machine 1 set)
2. 5+8 (13 heads) automatic Marble Molding Machine (5 heads forming machine 1 set, 8 heads polishing machine 1 set)
3. 6+8 (14 heads) automatic Marble Molding Machine (6 heads forming machine 1 set, 8 heads polishing machine 1 set)
4. 4+6 (10 heads) automatic Marble Molding Machine (4 heads forming machine 1 set, 6 heads polishing machine 1 set)
5. 4+7 (11 heads) automatic Marble Molding Machine (4 heads forming machine 1 set, 7 heads polishing machine 1 set)

For small stone processing factory, the suggestion is that buy 8 heads (3+5) Marble Molding Machine.For large quantity demand stone processing factory, the suggestion is that buy 12 heads (4+8) automatic Marble Molding Machine production line.

If processing natural marble, the suggestion is that buy 12 heads (4+8) automatic Marble Molding Machine production line, since the natural marble have crack, it is brittle. After forming shape, the crack of material should be added glue, and then put them on polishing machine. In this way, it doesn’t influence the processing effect, the processing speed is fast still.All in all, according to the processing materials and daily output to choose the suitable stone line processing machine, if you have no idea, please feel free to contact us. We will be glad to help you.

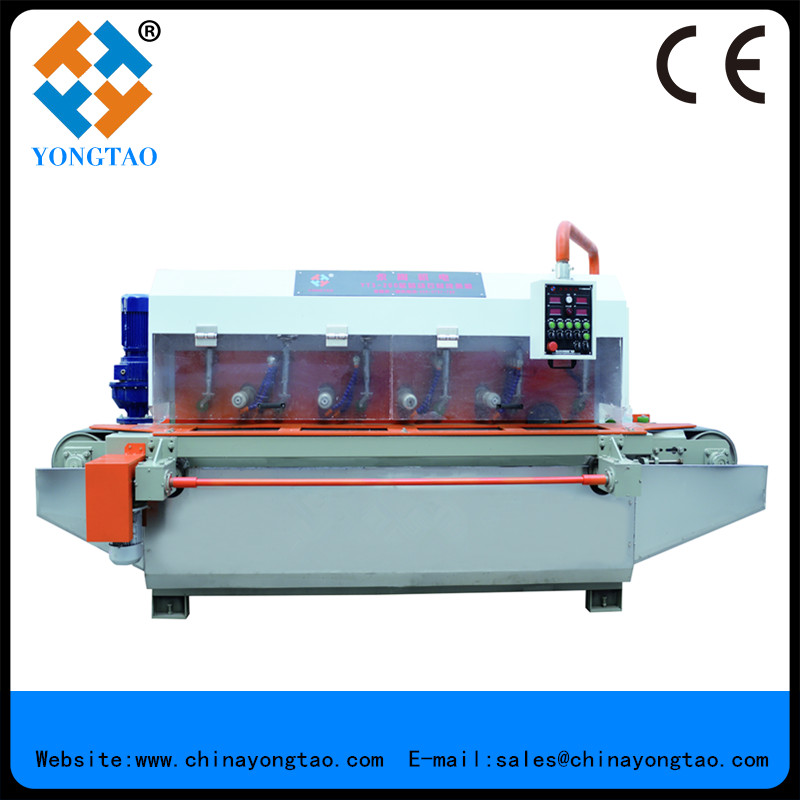

4 heads Marble Molding Machine
Marble Molding Machine

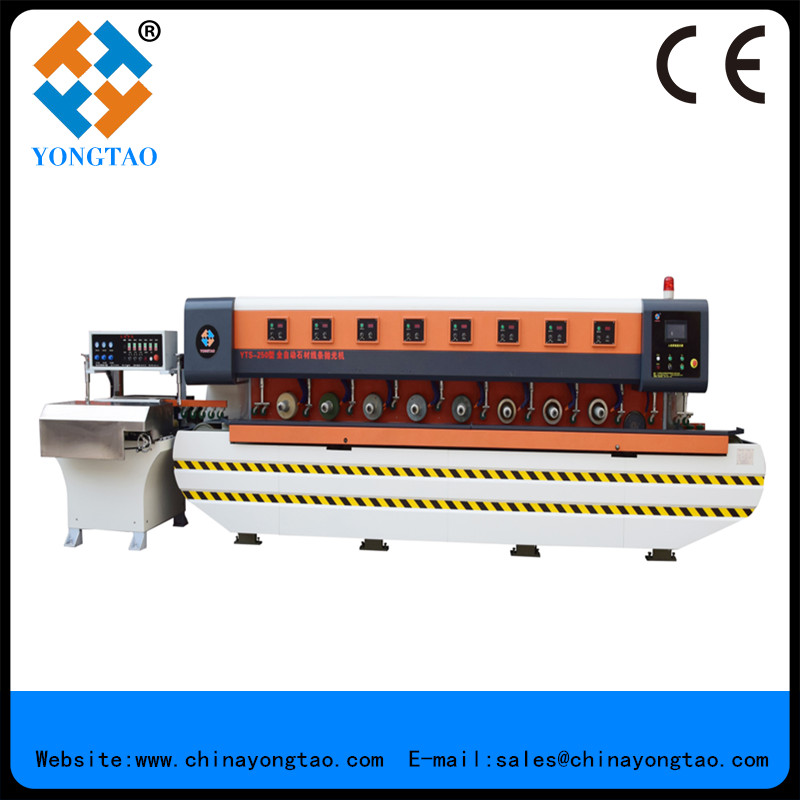

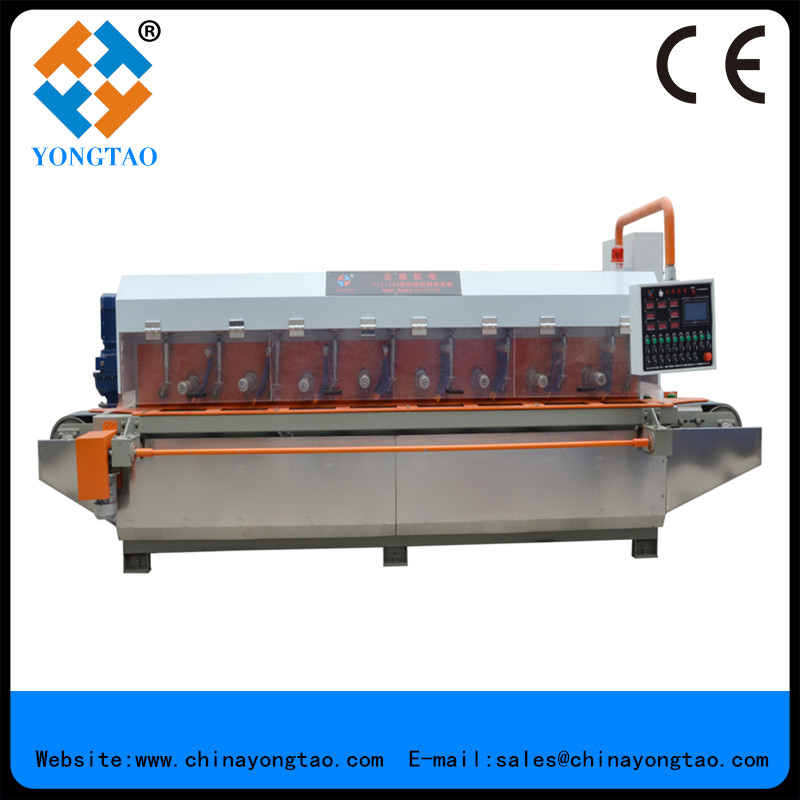

8 heads Stone Profiling Machine
Stone Profiling Machine

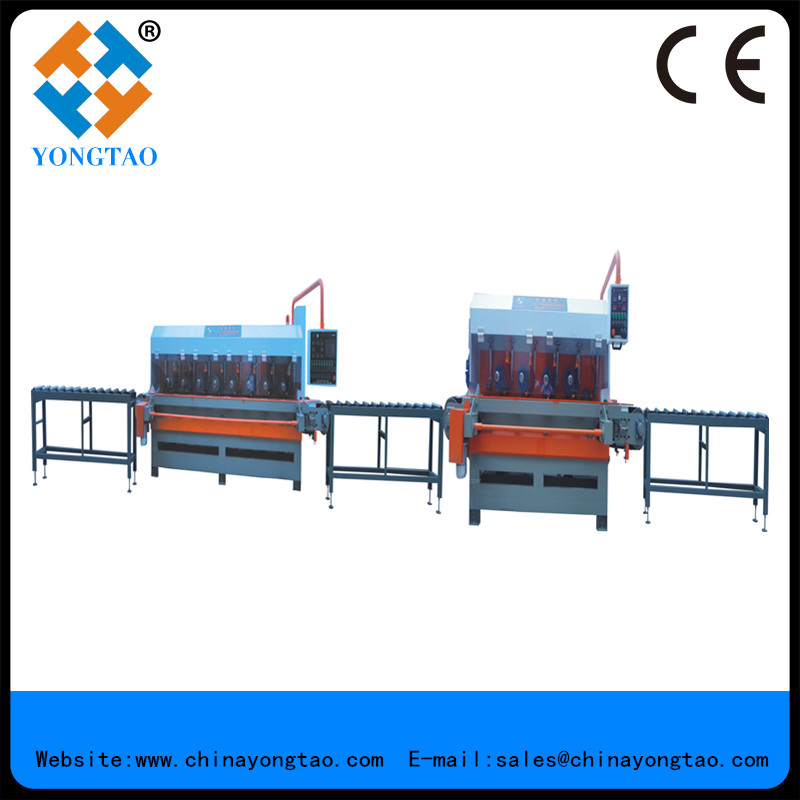

4+8 (12 heads) automatic Stone Profiling Machine (4 heads forming machine 1 set, 8 heads polishing machine 1 set)
Stone Profiling Machine

Marble Straight Profiling Machine

Marble Profiling Polishing Machine

8 heads automatic Marble Profiling Polishing Machine & 3+3 stone edge polishing machine
Marble Profiling Polishing Machine

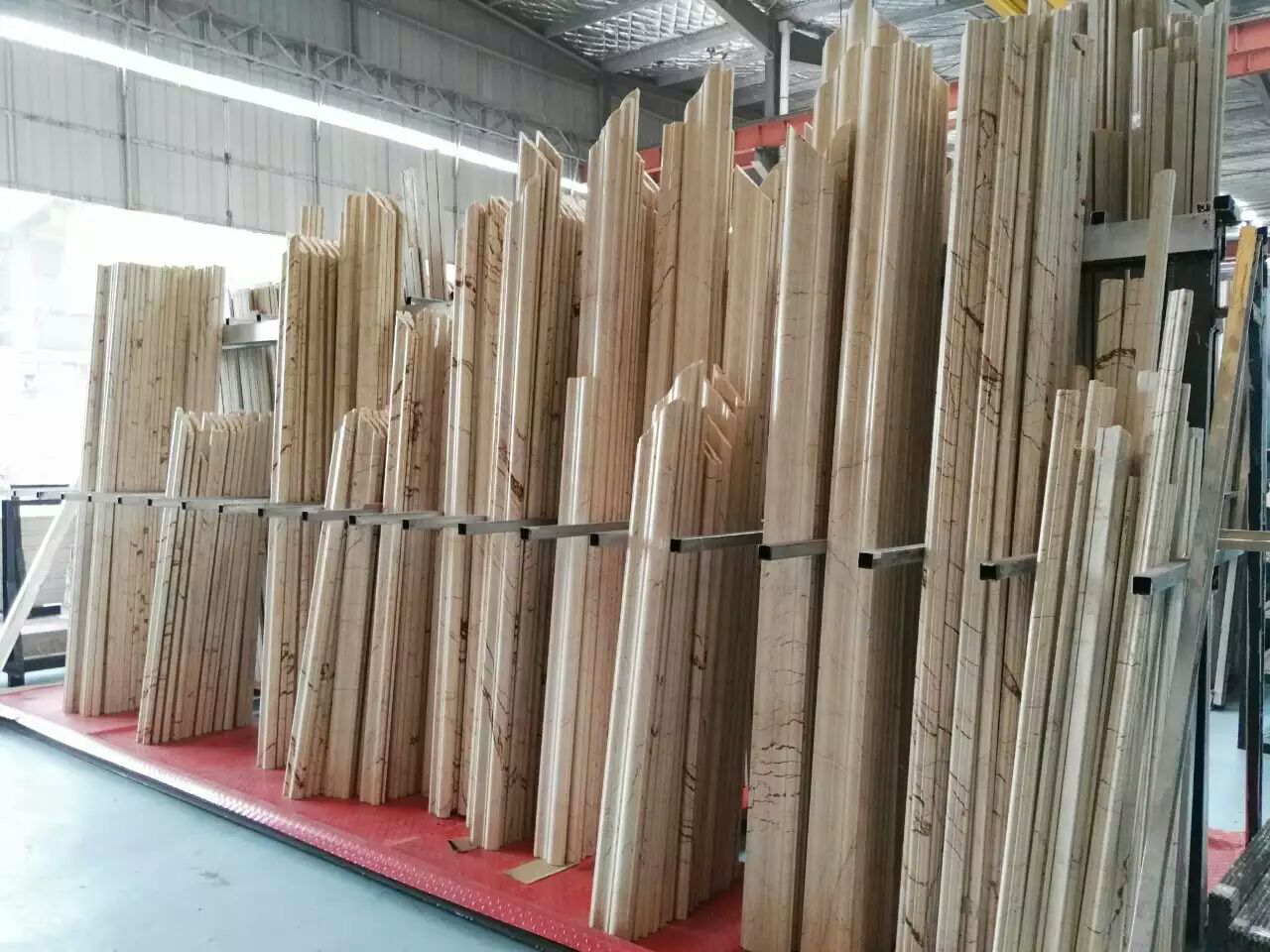

Product effect processed by automatic stone line polishing machine
Stone Bullnose Ogee Moldings
