YTYP-1200/7+14 Porcelain Tile Bullnose Machine

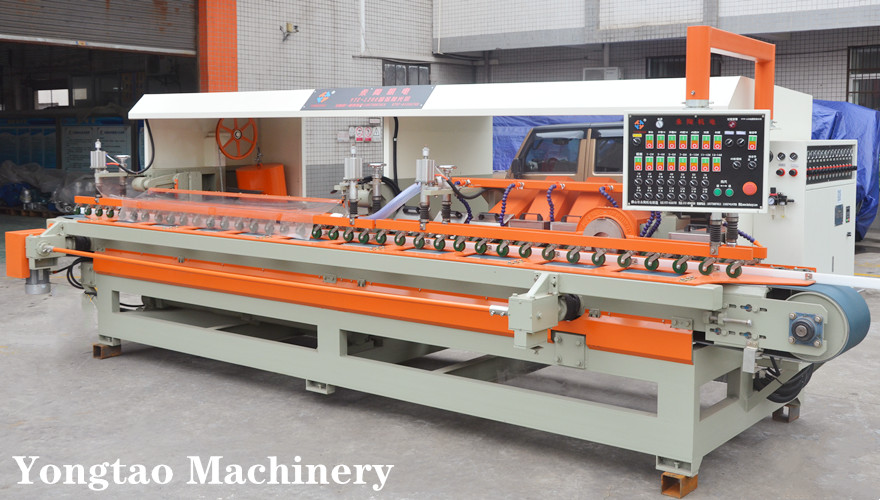

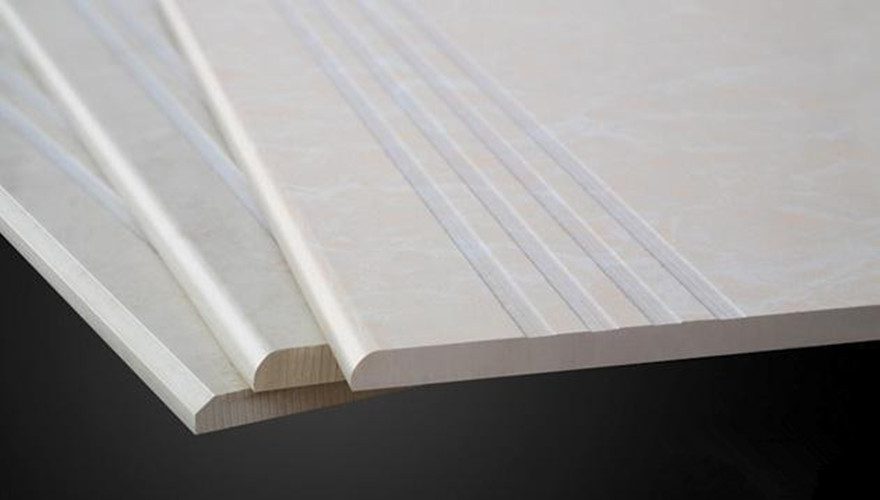

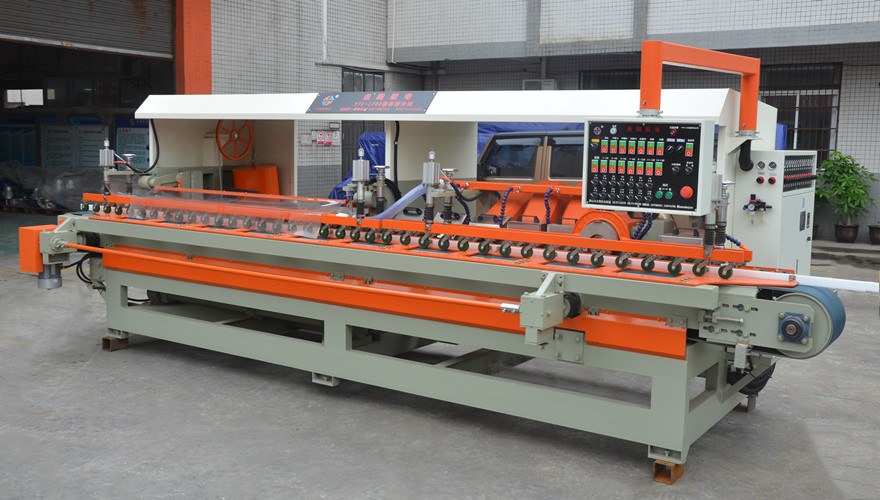

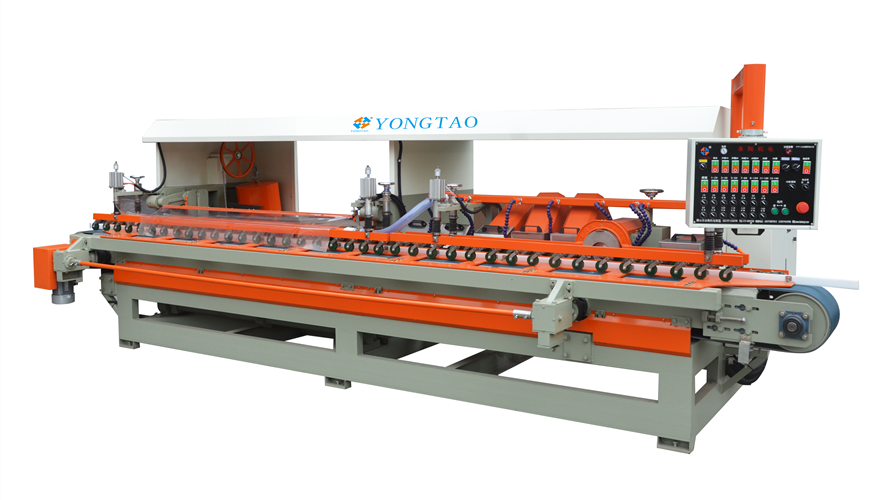

YTYP-1200/7+14 Porcelain Tile Bullnose Machine is applied to the deep processing of ceramics, for example: edging, chamfering (30 degree,45 degree, 60 degree), bottom chamfering, grinding bullnose, polishing (bullnose, 45 degree edge), slotting (anti-skid slot, flat slot). It is a typical porcelain tile bullnose machine.

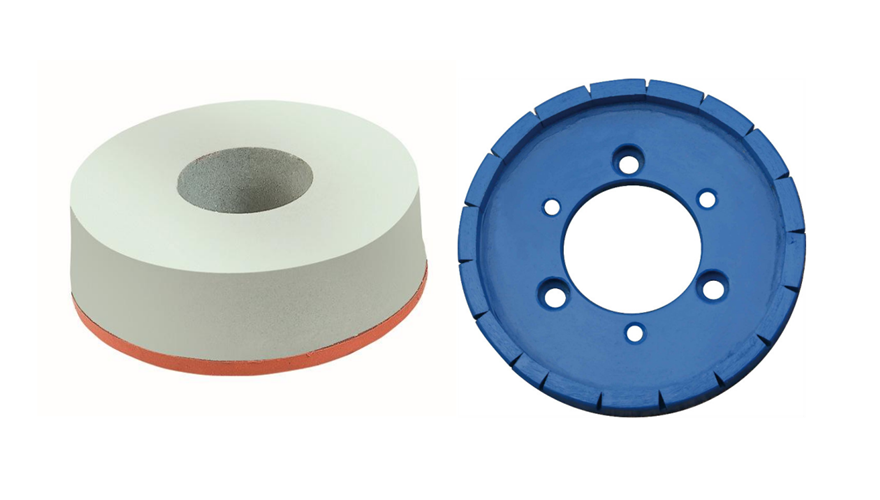

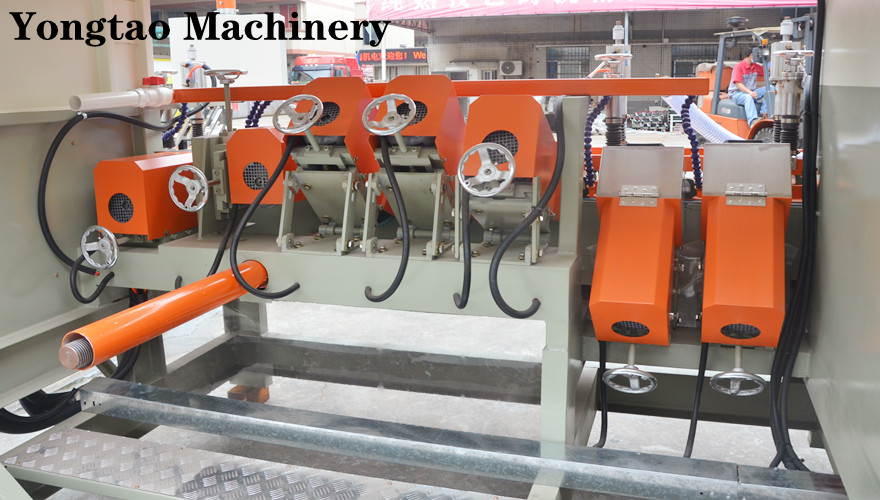

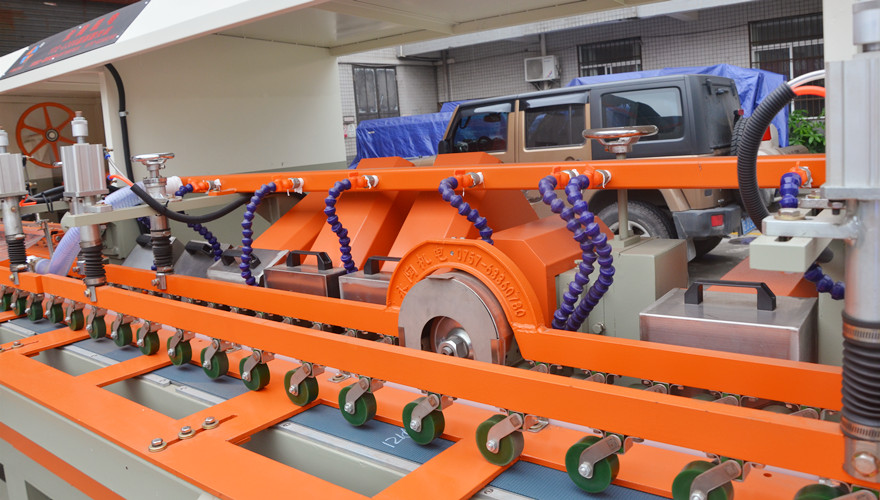

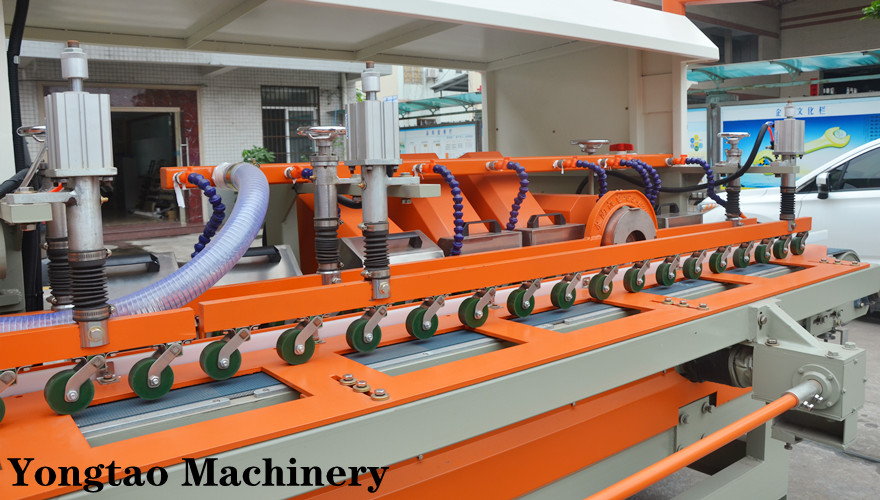

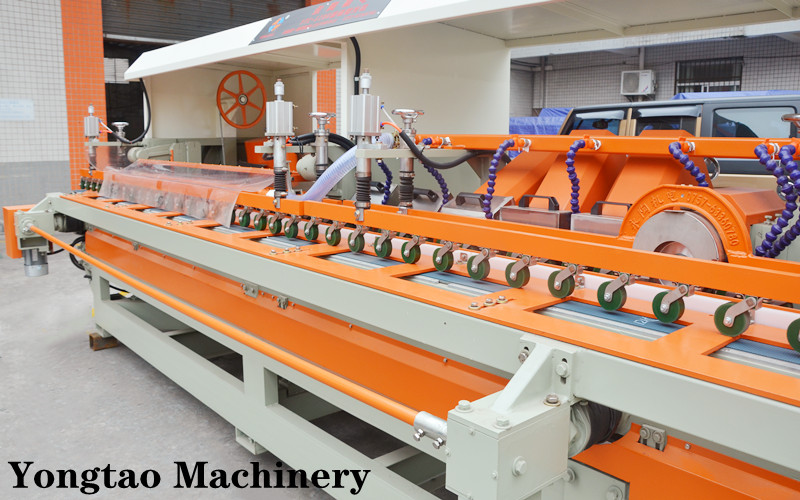

There are seven motors in the front of machine, include:one head of squaring, one head of groove, two head of 45 degree chamfer, one head of 60 degree chamfer,and two head of bottom chamfer. We can easily control the motor individual according to the function that you want. In the behind of the machine, there are 14 polishing heads, through different granularity of abrasive to grind and polish 90 degree arc edge for ceramic tiles.The operation is very simple and high productivity.

Ceramic Tile Bullnose Machine:



YTYP-1200/7+14 Tile Bullnose Machine:

No.

Name

Parameter

1

Conveyor belt

300mm

2

Nos. of squaring head

1pc

3

Diameter of squaring wheel

Φ200mm

4

Nos. of slotting disc

1 pc

5

Diameter of slotting disc

Φ150mm

6

Power of squaring and slotting disc

3kw

7

Nos. of chamfering head

3 pc (30, two 45)

8

Power of chamfering motor

2.2kw

9

Bottom chamfering head

2 pc

10

Power of bottom chamfering motor

1.5kw

11

Diameter of chamfering wheel

Φ200mm

12

Nos. of polishing head

14pc

13

Diameter of polishing wheel

95mm

14

Power of polishing motor

1.5kw

15

Power of swing motor

4kw

16

Workable width

80-1200mm

17

Power of conveyor belt

2.2kw

18

Polishing speed

4-8m/min

19

Thickness of tile

6-20mm

20

Power of baffle motor

0.75kw

21

Total power

33.05kw

22

Air consumption

50L/min

23

Water consumption

490L/min

24

Dimension of machine

6.2m*2.1m*1.8m

25

Weight

About 5800 kg
