Description of YTQS-4-1800 Manual Type CNC Tile Cutter For Large Tiles

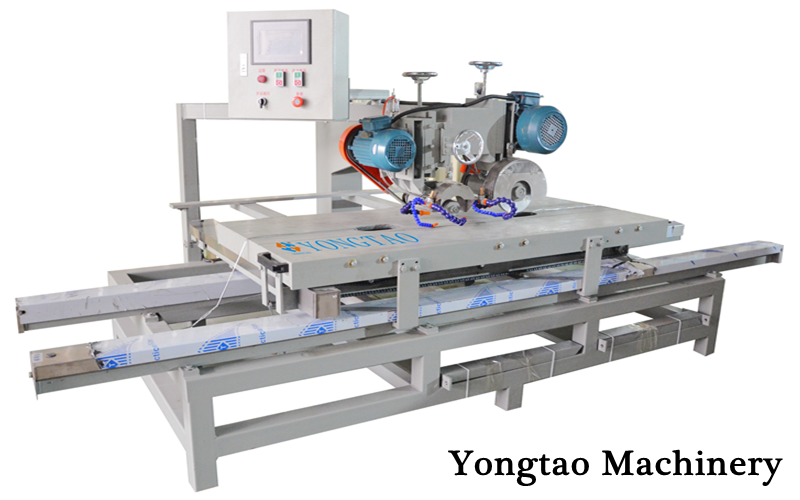

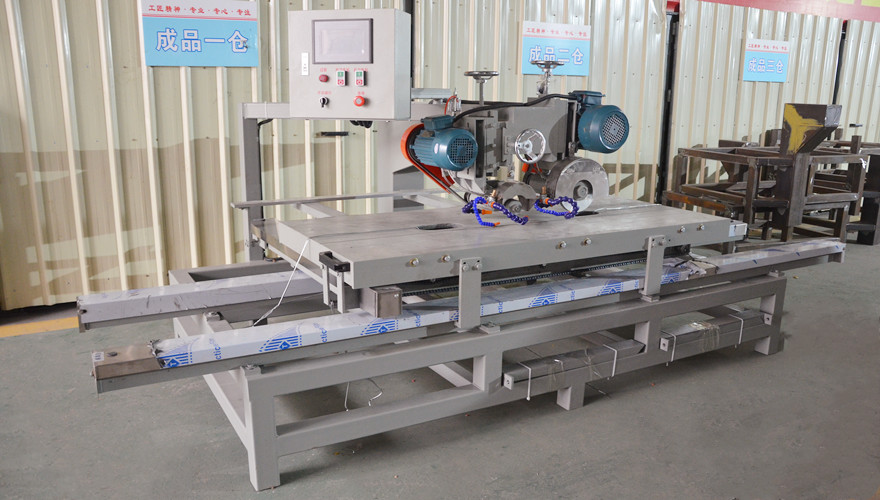

YTQS-4-1800 Manual Type CNC Tile Cutter For Large Tiles is the latest product of Yongtao Machinery.This machine is specialized to cut big size tile. This machine is tile cutter for large tiles.The maximum processing size is 1800*1800mm.It can cut into two piece of 900*1800mm tile in one time.The machine have two cutting head,can effectively avoid the chipping when cutting.It adopts touch screen with cnc to control the baffle to adjust the cutting size.The machine use imported oil dipped high precision guide rail.Both sides of machine have two support frame,to ensure the machine cut large tile stable and accuracy.The machine have the advantage of simple operation,no chipping,high precision.It’s a popular machine for cut large size ceramic tile

Technical Parameter of YTQS-4-1800 Manual Type CNC Tile Cutter For Large Tiles

1

Cutting head

2pcs

2

First motor power

2.2kw

3

Second motor power

4kw

4

Control method

Cnc

5

Diameter of first blade

(ø120-130mm)*20mm

6

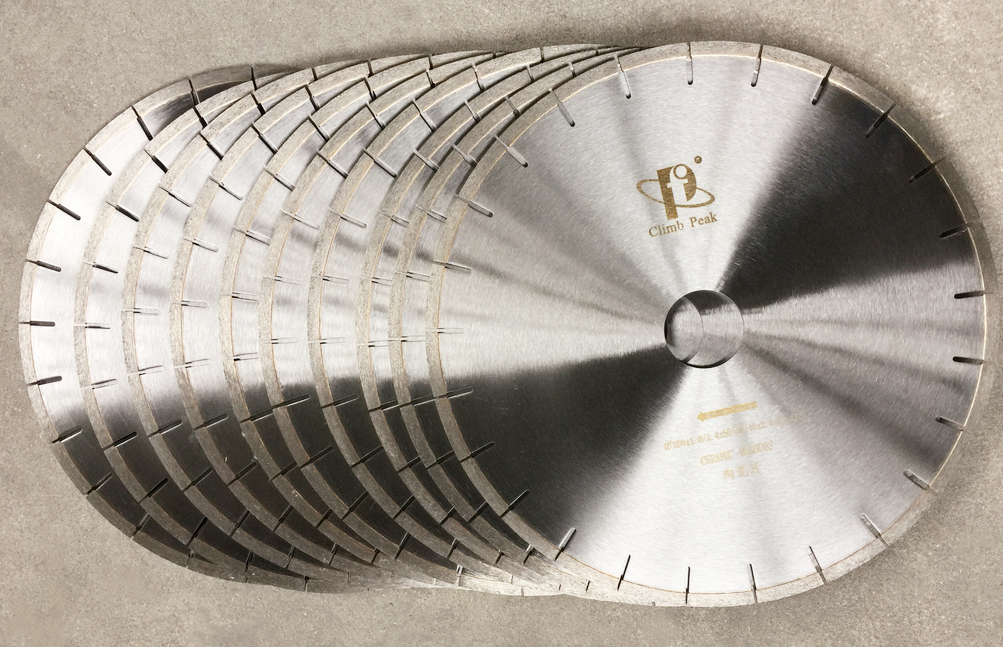

Diameter of second blade

(ø200-250mm)*60mm

7

Guide rail

Oil dipped

8

Platform

Cast iron

9

Processing size

1800mm

10

Size of machine

3.55m*1.8m*1.6m

11

Total power

6.2kw

12

Weight

1500kg



We provide you with best tile cutter for large tiles.
