Large ceramic processing machinery and equipment
YTYP-1200/7+14 Porcelain Tile Bullnose Machine

Large ceramic processing machinery and equipment

Large ceramic processing machinery and equipment
Function: straight edge grinding, chamfering(30 degree, 45 degree and 60 degree), bottom chamfering, arc edge grinding, polishing(arc edge polishing, 45 degree edge polishing), grooving(anti-skid slot, flat slot, slot polishing), french edge, duckbill edge, concave-convex slot, nail edge, special-shaped line etc all kinds of ceramic tile processing

Product introduction: YTYXP-1200 14+7 ceramic tile Bullnose polishing machine is the latest product of ceramic processing machinery, which can grind edge, chamfer, bottom chamfer, groove and polish. It can process the raw brick into final product in one time. The machine are able to process stair step, stair brick, skirting, french edge, special-shaped waist line, duckbill edge etc all kinds of shape for ceramic tile and stone processing. This machine has the reasonable design, simple structure, advanced performance, easy operation, easy maintenance. Especially the polishing wheel takes abrasion pneumatic automatic compensation, thus improves the production automation degree, greatly improving the productivity, to bring you good economic benefit.

Technical parameters:
Serial No. Item Name Unite Technical Parameter
1 Conveyor belt mm 350
2 Numbers of polishing wheel pcs 14
3 Diameter of polishing wheel mm 95
4 Numbers of chamfering wheel pcs 6 (edge trimming wheel x1, 45 degree chamfering wheel x2,
30 degree chamfering wheel x1, 60 degree chamfer wheel x1,
bottom chamfering whee x1)
5 Diameter of grinding wheel mm 150-200
6 Anti-skid grooving wheel, shaping wheel pcs 2
7 Numbers of anti-skid slot pcs 3月4日
8 Diameter of grooving blade mm 150
9 Line polishing wheel pcs 5
10 Workable width mm 80-1200
11 Polishing speed M/min 0-6
12 Workable thickness mm 6月30日
13 Total power kw 46
14 Power consumption Kw/h 25
15 Air consumption L/min 50
16 Size of machine L*W*H 8.8*2.2*2.0
17 weight kgs About 7500

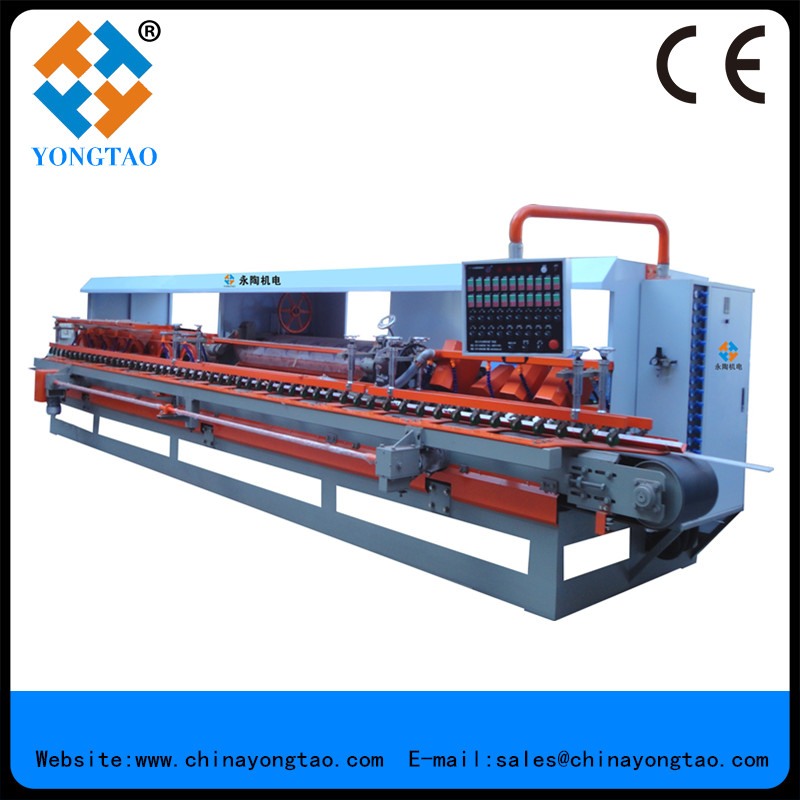

YTYXP-1200 14+7 ceramic tile Bullnose polishing machine
ceramic tile Bullnose polishing machine

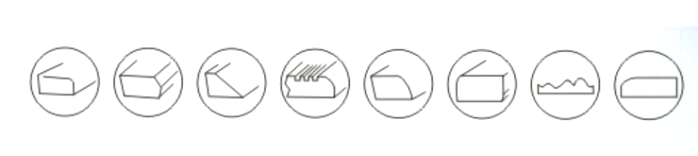

Product effect shape figure

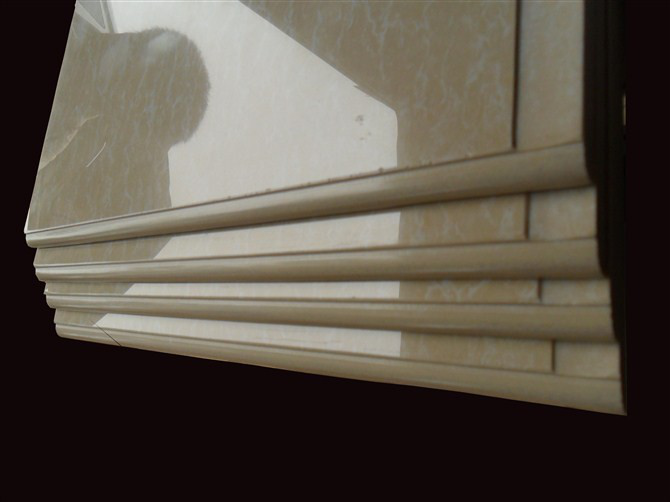

Ceramic tile processing

Ceramic tile Bullnose polishing

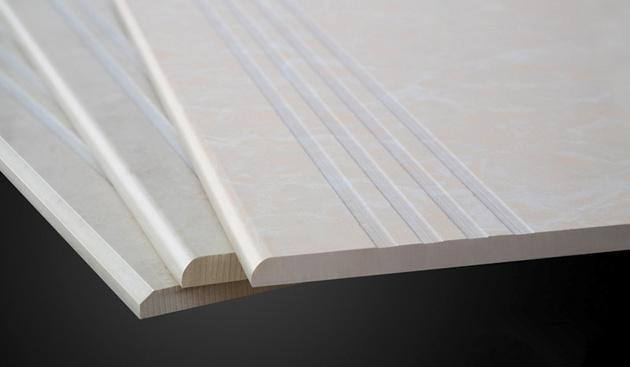

Ceramic grooving and polishing

Ceramic tile processing equipment has the following several kinds of configuration scheme:

1. YTYP-1200/7+14 Porcelain Tile Bullnose Machine 1 set
YTQS-1-800 Manual tile cutting machine 1 set
YTQS-1-1200 Manual tile cutting machine 1 set
Ceramic Tile Edge Polisher

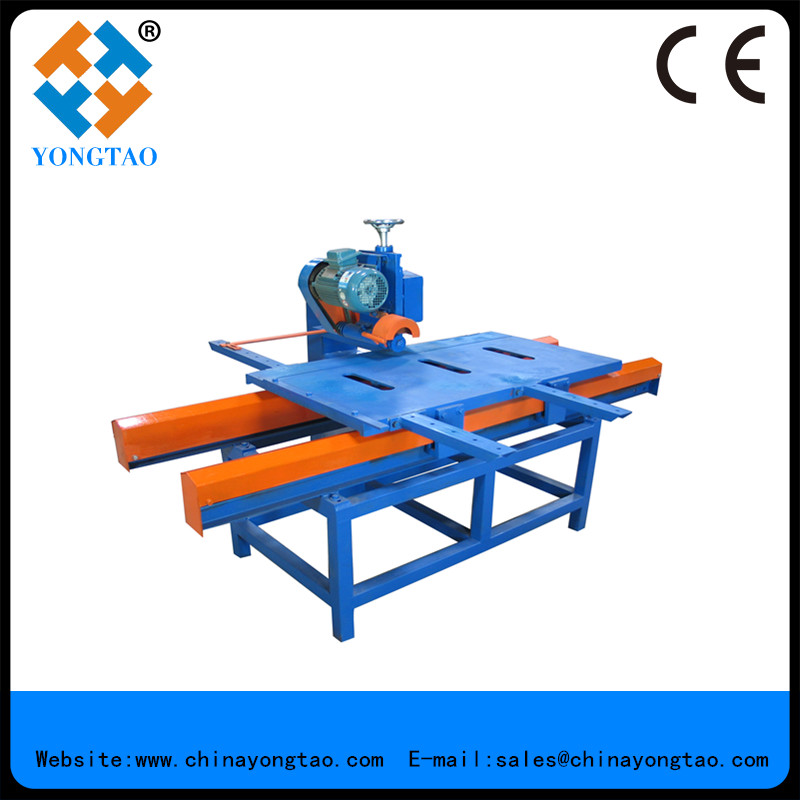

Hand wet ceramic tile cutter

2. YTYP-1200/7+14 Porcelain Tile Bullnose Machine 1 set
YTQZ-A/2-1200 Two Blade CNC Ceramic Tile Cutter 1 set
YTQS-1-1200 Manual tile cutting machine 1 set

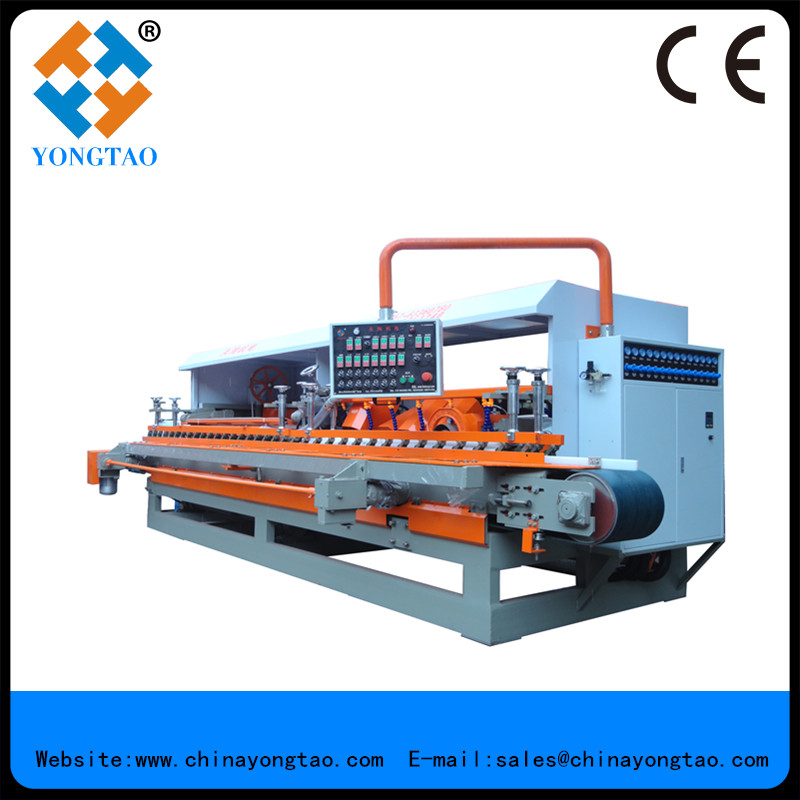

Arc polishing machine

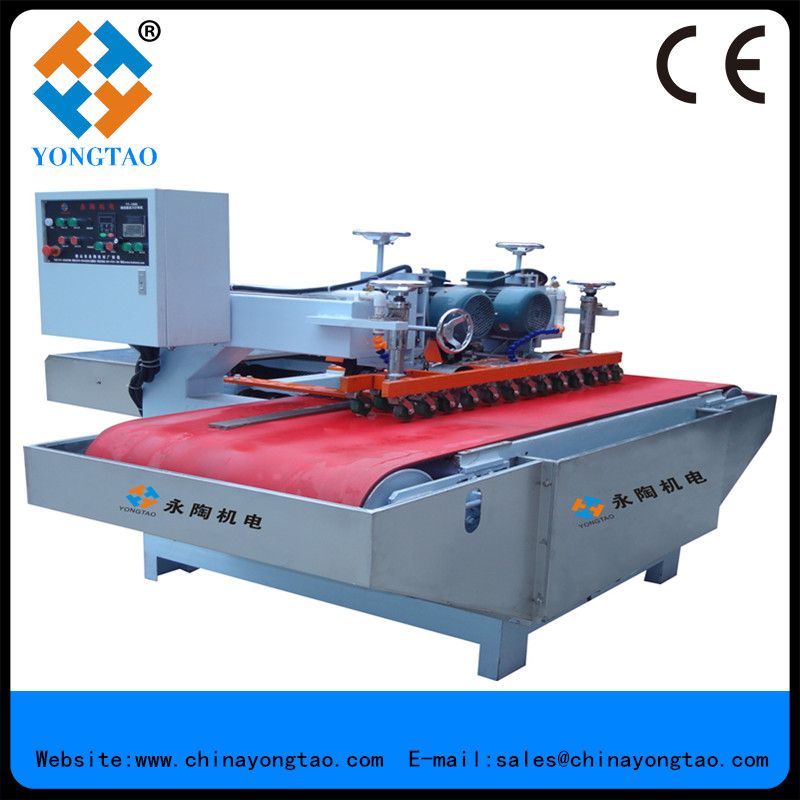

CNC ceramic tile cutting machine

tile cutting machine

3. YTYXP-1200 14+7 ceramic tile Bullnose polishing machine 1 set
YTQS-1-800 Manual tile cutting machine 1 set
YTQS-1-1200 Manual tile cutting machine 1 set

4. YTYXP-1200 14+7 ceramic tile Bullnose polishing machine 1 set
YTQZ-A/2-1200 Two Blade CNC Ceramic Tile Cutter 1 set
YTQS-1-1200 Manual tile cutting machine 1 set
Ceramic polishing machine

CNC ceramic cutting machine

Tile Cutter

5. YTYP-1200/7+14 Porcelain Tile Bullnose Machine 1 set
YTQZ-A/2-1200 Two Blade CNC Ceramic Tile Cutter 1 set
YTQS-1-1200 Manual tile cutting machine 1 set
YJ-2015-5L 5 Axis Water Jet Tile Cutting Machine 1 set

6. YTYXP-1200 14+7 ceramic tile Bullnose polishing machine 1 set
YTQZ-A/2-1200 Two Blade CNC Ceramic Tile Cutter 1 set
YJ-2015-5L 5 Axis Water Jet Tile Cutting Machine 1 set
tile Bullnose polishing machine

Wet Ceramic Tile Cutter

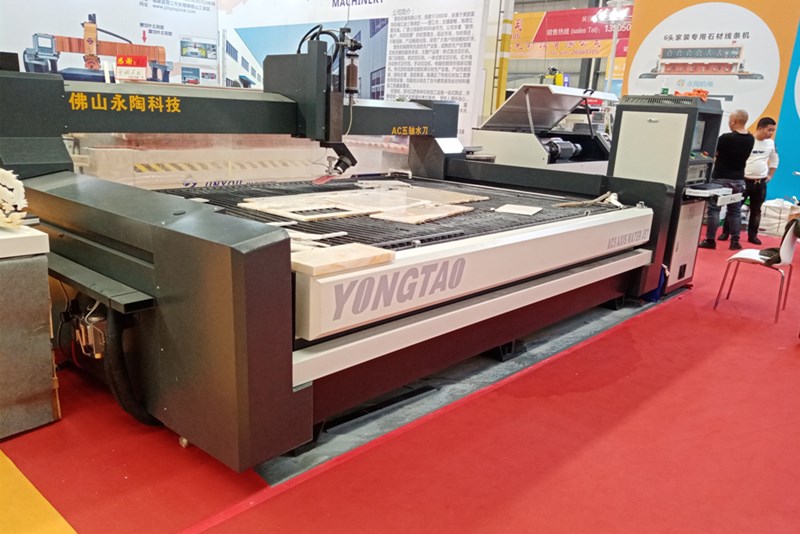

Large water jet cutting machine

Foshan Nanhai Yongtao Machinery and Electric Equipment Co., Ltd is a manufacturer specialized in ceramic tile mosaic cutting machine, ceramic tile mosaic chamfering machine, ceramic tile mosaic surface polishing machine, granular ceramic tile mosaic cutting machine, ceramic tile mosaic pallet cutting machine, ceramic tile mosaic making machine, ceramic tile mosaic trimming machine, ceramic tile mosaic processing machine, multi blades ceramic tile mosaic cutting machine, mosaic processing machinery, ceramic tile mosaic drying machine, ceramic tile mosaic net machine, ceramic tile mosaic clean machine. We are professional ceramic tile mosaic processing machine factory, welcome to inquiry.
