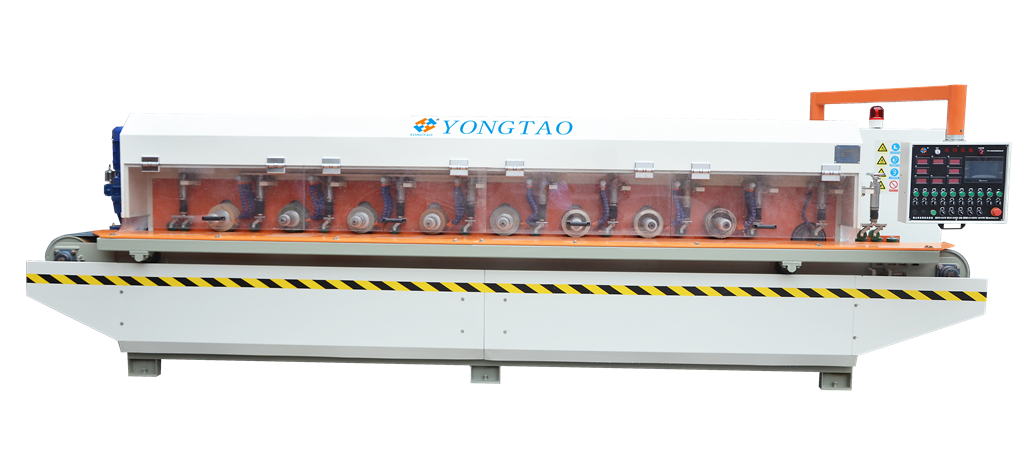

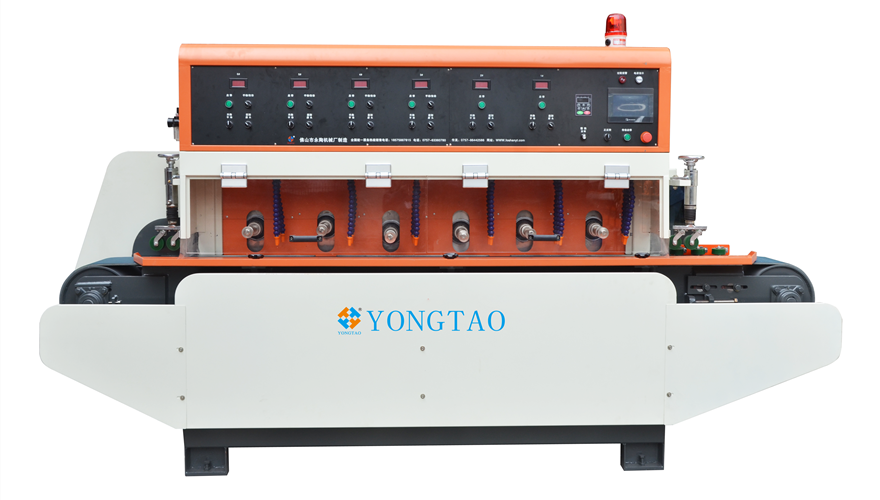

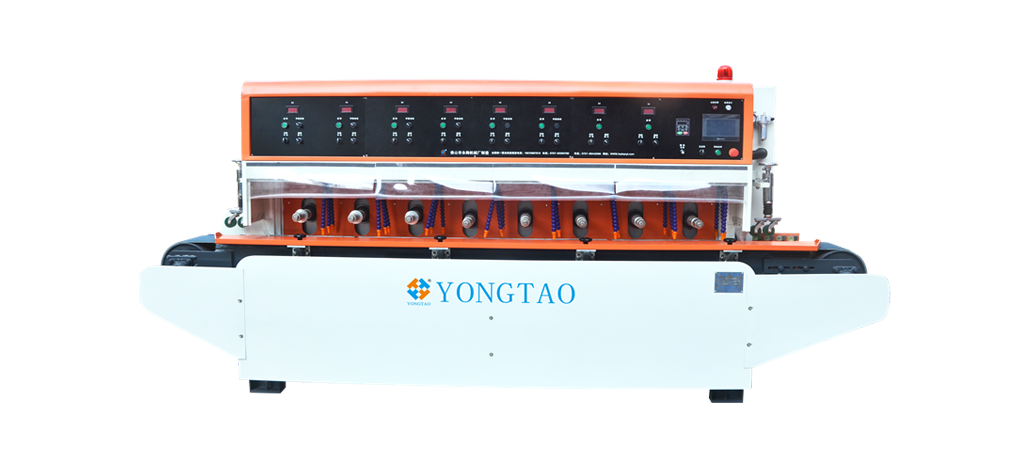

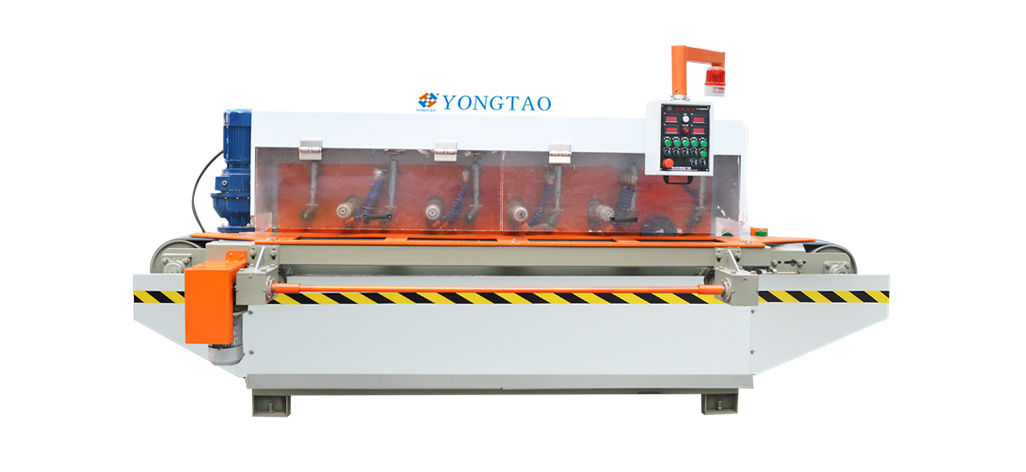

YSXP-150 6 Head Automatic Marble Molding Machine

marble Straight profiling Polishing machine-YONGTAO Stone Machine

Description of YSXP-150 6 Head Automatic Marble Molding Machine

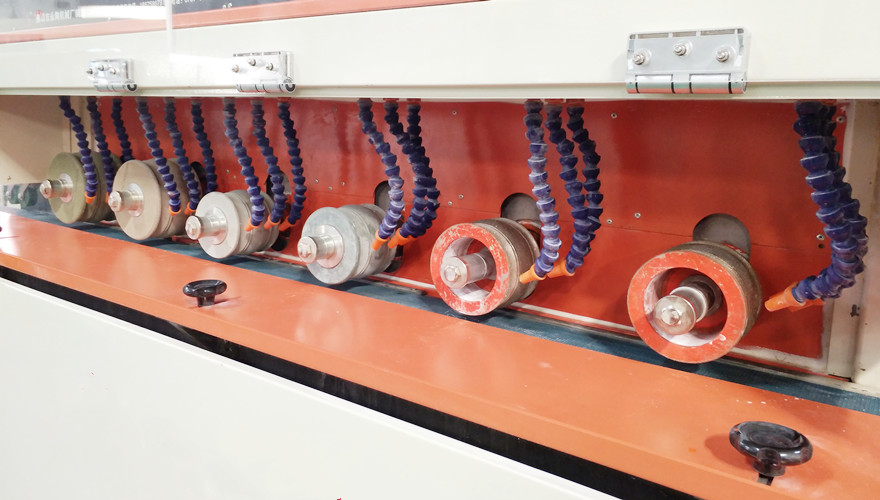

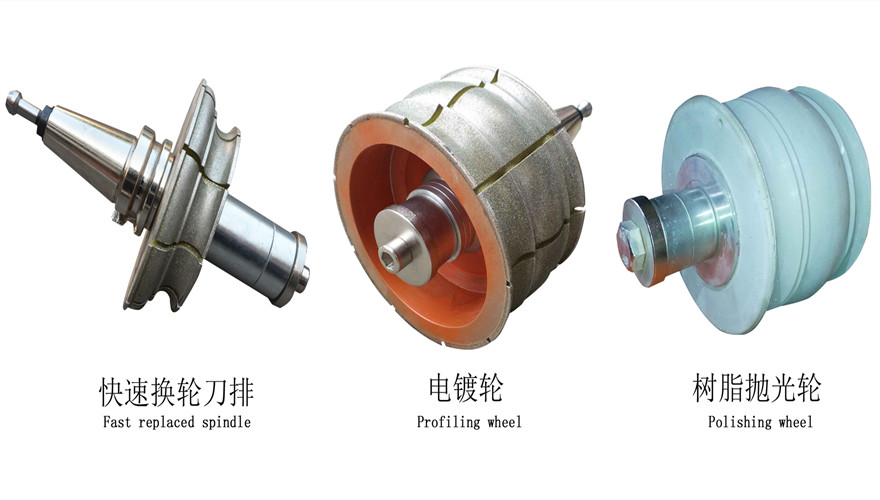

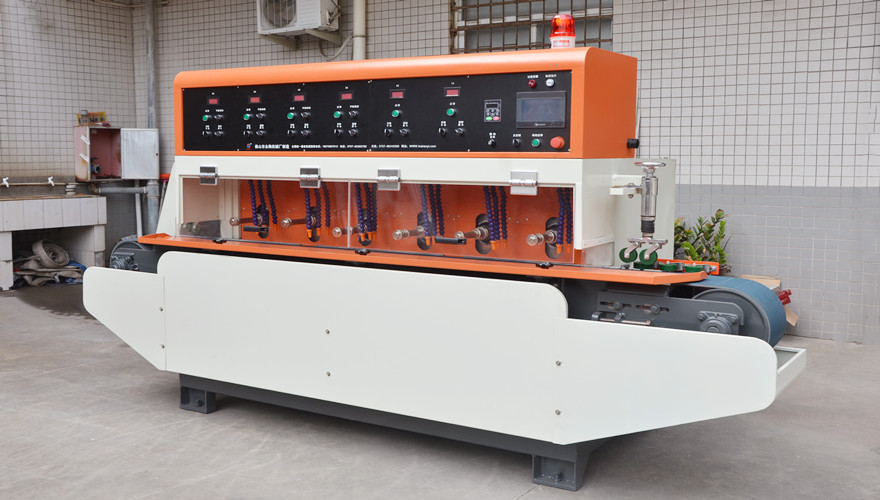

YSXP-150 6 Head Automatic Marble Molding Machine,This marble molding machine is the new generation product of YONGTAO Machinery. It has2 heads to profile, and 4 heads to polish. The polishing wheel adopts automatic control system. The machine adopts separate spindle, which can realize fast wheels replaced. To change one sets of wheels(6pcs), totally need 2 minutes, very simple and fast, it great save the labor cost, and improve the stability of product effect.

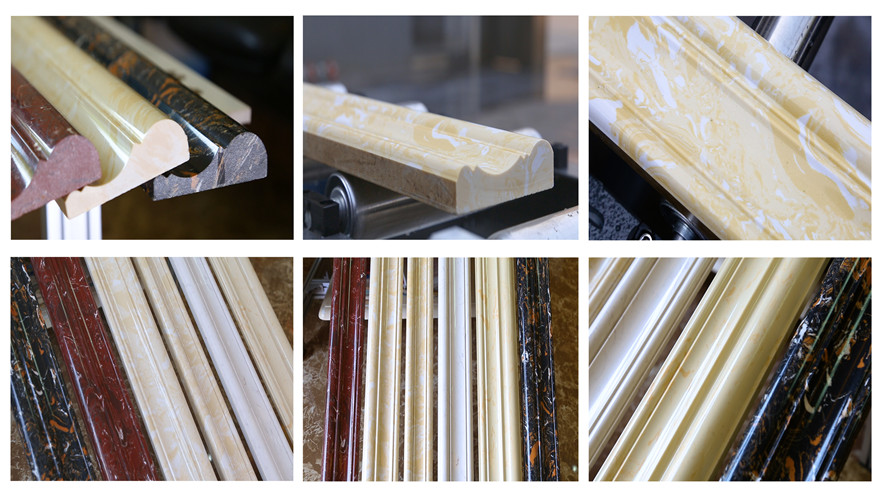

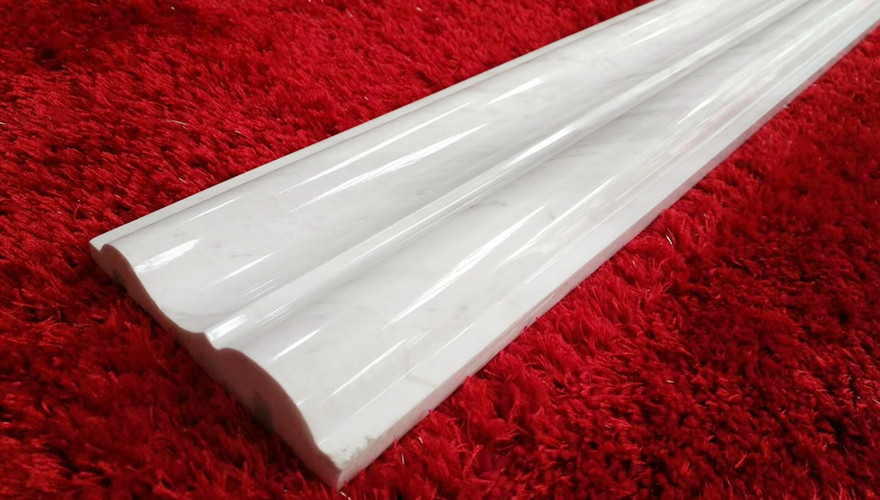

YSXP-150 6 Head Automatic Marble Molding Machine Processed products:

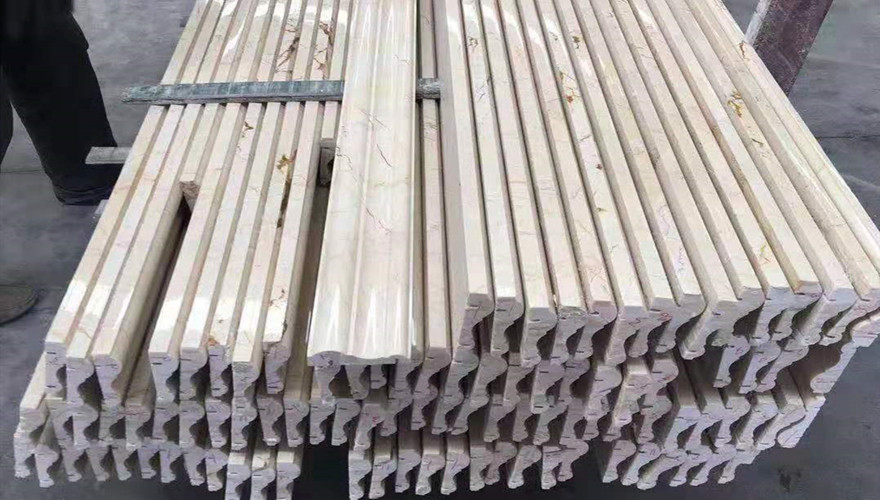

1、Marble Bullnose Ogee Moldings
2、Stone Bullnose Moldings
3、Marble Moulding Border Decos
4、Stone Ogee Mouldings
5、Stone Moulding
6、Marble Chair Rail
7、Marble Trim Moldings
9、Marble Crown Molding
10、Marble Skirting Baseboard Decorative Polished
11、Marble Chair Rail Decorative Crown Molding
12、Marble Stone Pencil Molding Trim
13、Ogee Molding 2 x 12 Tile
14、3/4 x 12 Pencil Liner Trim Molding Honed Marble
15、marble 2x12 chair rail decorative crown molding bullnose trim double

Parameter of YSXP-150 6 Head Automatic Marble Molding Machine

No.	Name	Parameter
1	Nos. of profile head	2pc
2	Nos. ofpolish head	4pc
3	Diameter of wheel	Φ150mm*30mm
4	Motor power of profile head	7.5kw
5	Motor power of polish head	5.5kw
6	Method of polishing	automatic
7	Processing width	30-150mm
8	Conveyor belt width	250mm
9	Processing speed	0.3-1.5m/min
10	Max processing thickness	60mm
11	Total power	40.32kw
12	Air consumption	30L/min
13	Water consumption	400L/min
14	Size of machine	3.48m1.24m1.85m
15	Weight	About2800 kg
