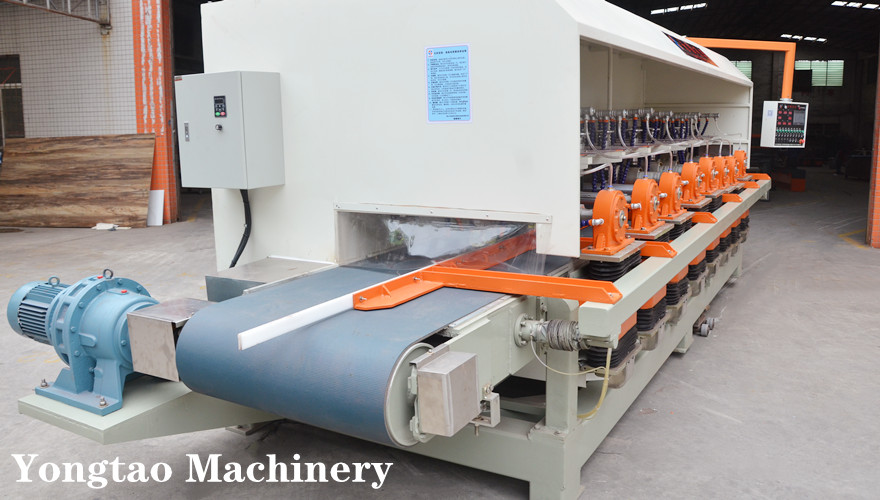

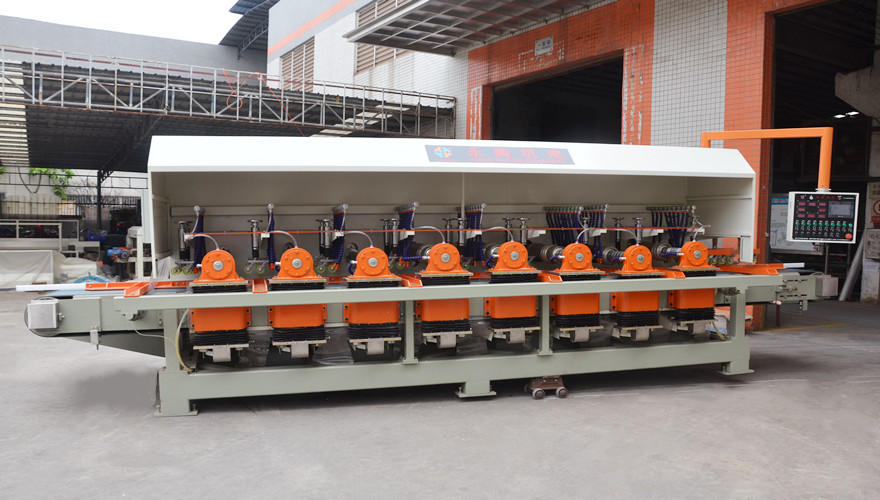

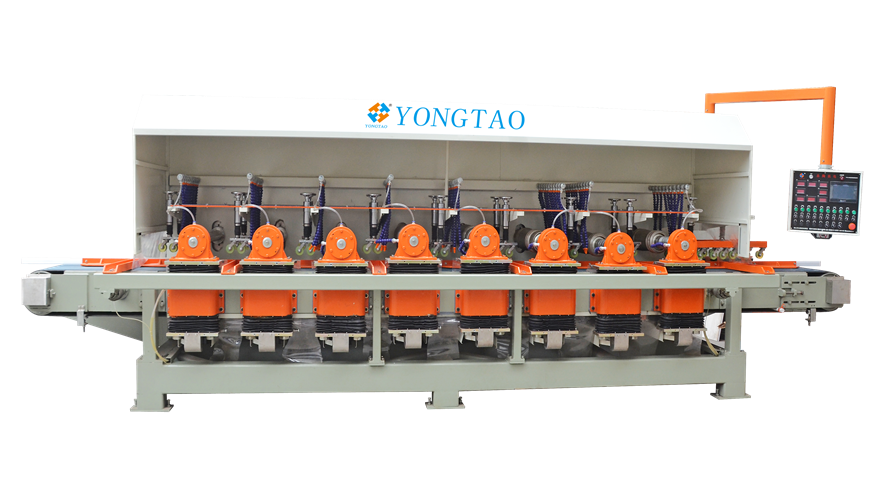

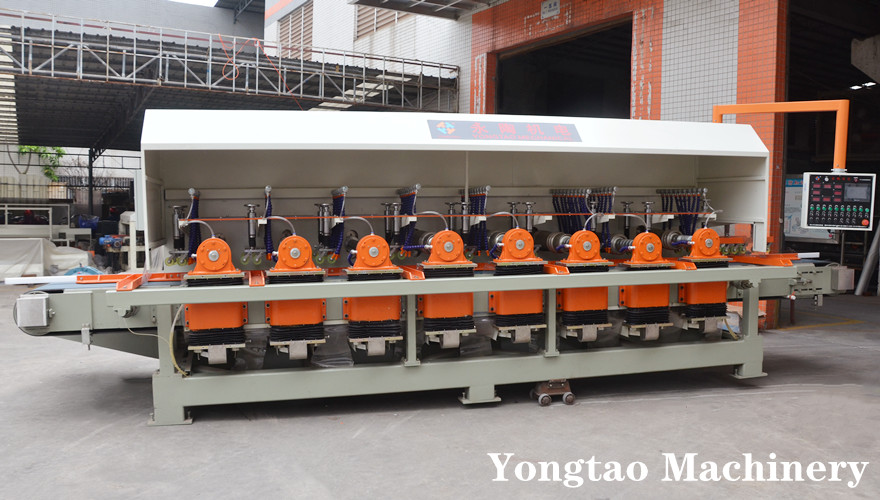

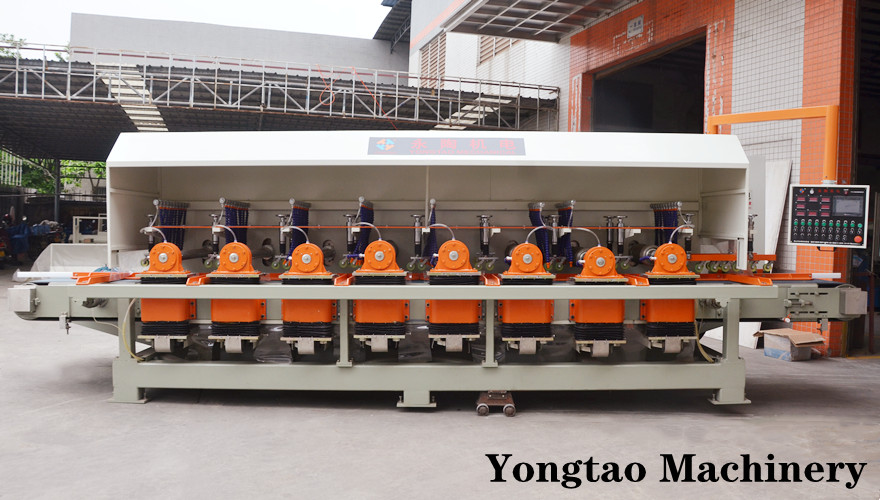

The Yongtao YSXP-800 is an 8-head stone square column profiling machine developed for the continuous shaping and finishing of square stone columns, square balusters and architectural posts. Its working system combines four diamond profiling heads with four polishing heads, allowing one face of the workpiece to be progressively formed and polished during each pass.
To complete a four-sided square column, the workpiece is processed once on each face and rotated between passes. Four passes are therefore required to profile and polish all four sides. This controlled method is suitable for batch production where repeated profile geometry, smooth transitions and consistent finishes are required.
The machine can process suitable marble, granite and artificial stone products, including Guangxi White marble, Hanbaiyu or Chinese white marble, and engineered stone. The wheels and operating settings must be selected according to the material, column dimensions, required profile and target finish.
Machine configuration: 4 profiling heads + 4 polishing heads
Processing method: One face during each pass
Complete square-column cycle: Four faces processed in four passes
Maximum processing width: 800 mm
Maximum processing thickness: 100 mm
Processing speed: 0.3–2 m/min
Suitable materials: Marble, granite and artificial stone
Typical products: Square columns, square pillars, square balusters and balustrade posts
The final tooling and operating settings should be confirmed according to the material, column dimensions, profile design and required finish.
A stone square column profiling machine uses matched abrasive wheels to form and finish decorative contours along the flat faces of a square stone workpiece. Instead of rotating the workpiece continuously like equipment intended for round columns, the YSXP-800 processes one flat face during each pass.
The automatic stone square column profiling machine is designed for repeated production. Once the wheel combination, workpiece position and operating settings have been confirmed, columns with the same material and cross-sectional design can be processed in batches.
This machine is particularly suitable for products that require coordinated contours on four separate faces. It combines staged material removal with progressive polishing, reducing the need to transfer the workpiece between independent forming and finishing machines.

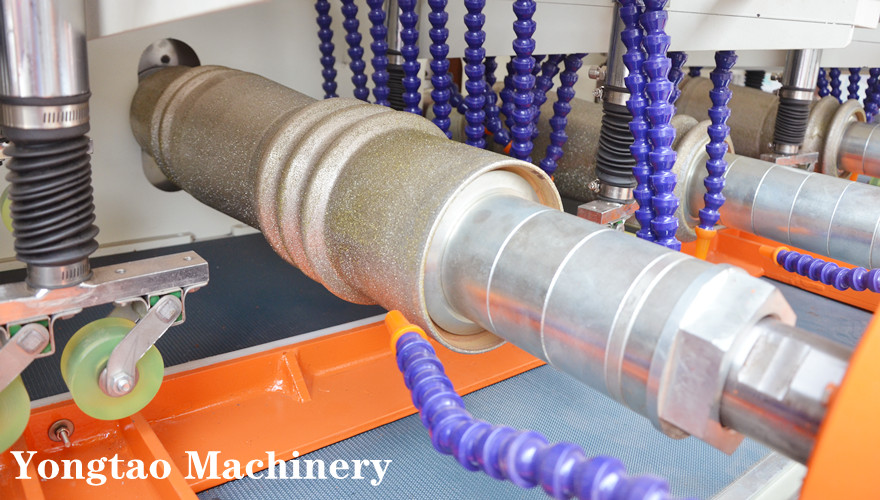

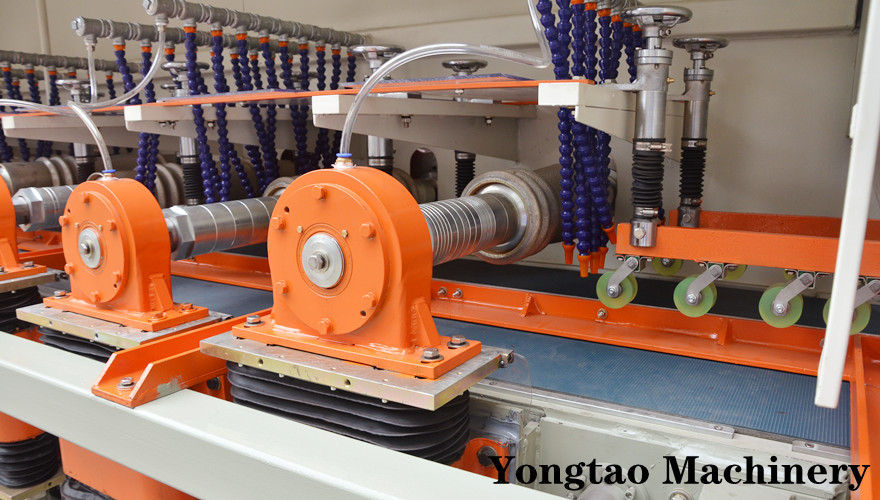

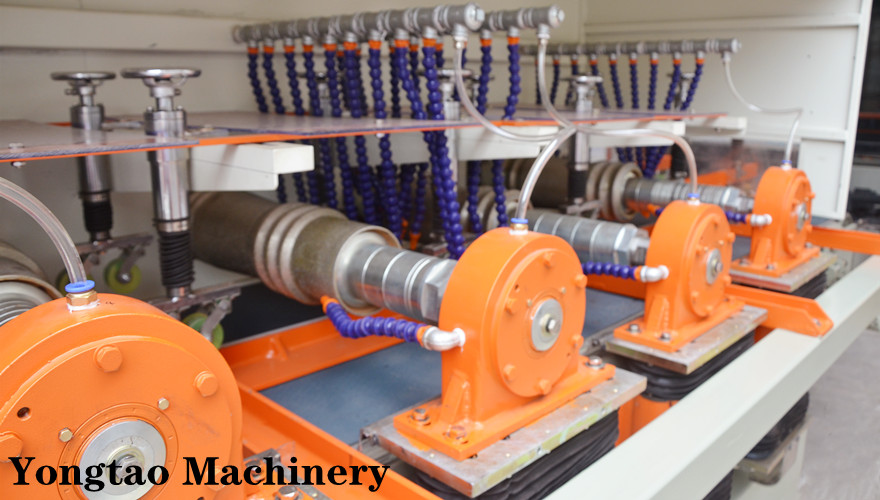

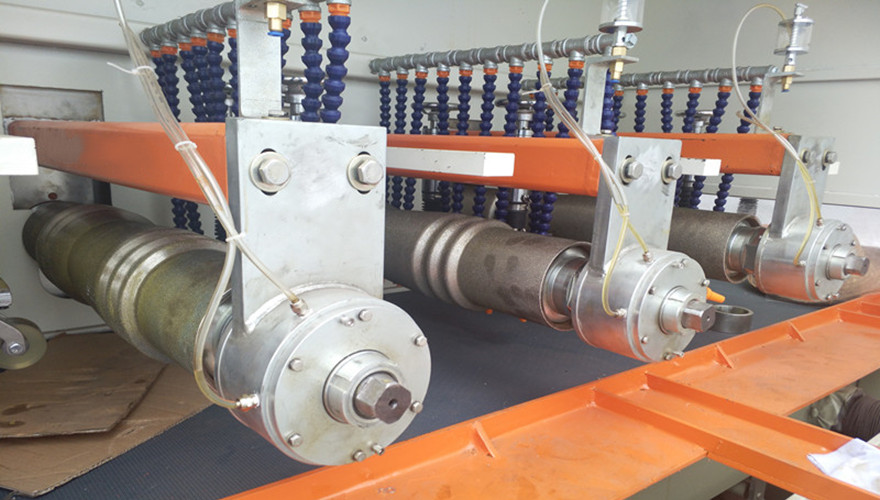

The first four stations use shaped profiling wheels to remove material progressively and establish the required contour. Dividing the forming process among four heads helps control the amount removed at each stage and supports a smoother transition from the original flat face to the finished profile.
The wheel geometry must match the required column design. Profile width, depth, spacing, radius and transition points should be defined through a dimensioned cross-sectional drawing or an approved physical sample.
A wheel prepared for one design cannot accurately produce every other profile through position adjustment alone. When the column design changes, a corresponding wheel set is normally required.

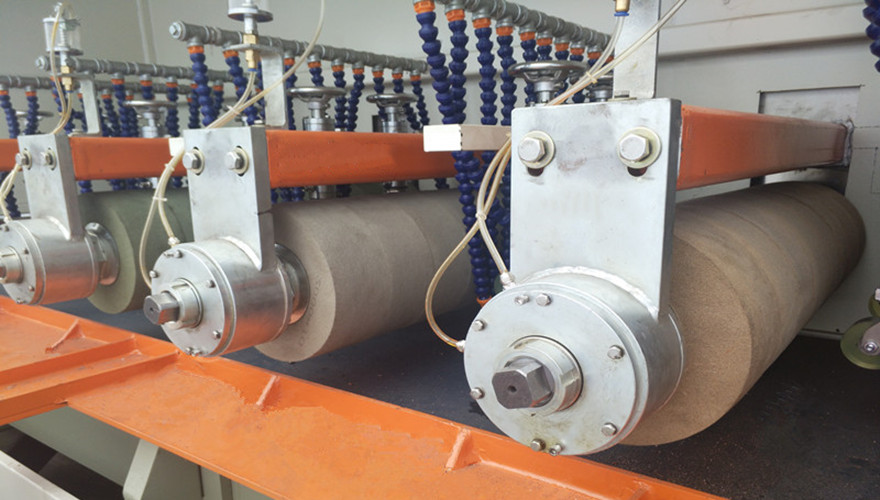

After the profile has been formed, the workpiece passes through four polishing stations. These heads refine the shaped face, reduce visible grinding marks and improve the finish across recessed, raised and curved sections.
The polishing sequence must follow the established contour accurately. Final results depend on the stone type, wheel specification, abrasive sequence, feed speed, wheel condition, cooling water and required surface appearance.

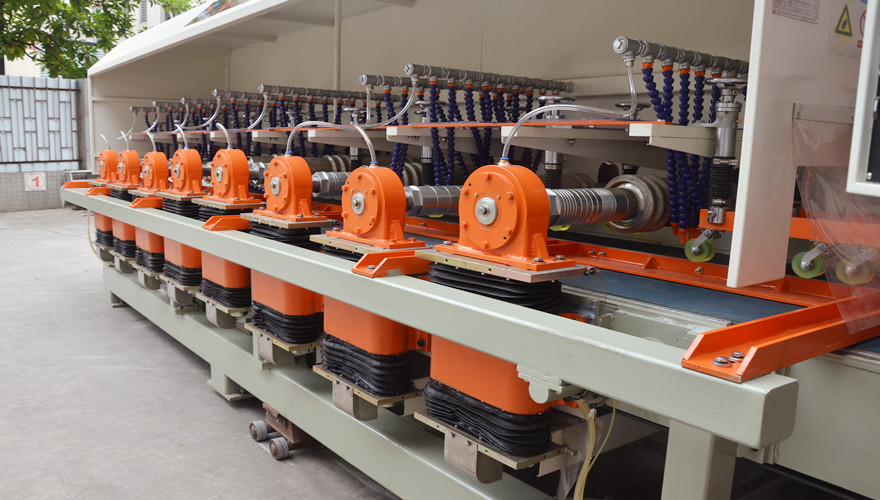

Combining four forming and four finishing stations makes the YSXP-800 a stone square column profiling and polishing machine for continuous single-face processing.
Check the material, length, width, thickness and condition of the square column or baluster. Confirm that the workpiece is suitable for the machine’s processing range and conveying system.
Provide a dimensioned cross-sectional drawing, physical sample or clearly marked product image. The drawing should identify the profile depth, width, spacing, radius and important transition points.
Install four profiling wheels and four polishing wheels in the correct sequence. Each head should perform a defined part of the forming or finishing process.

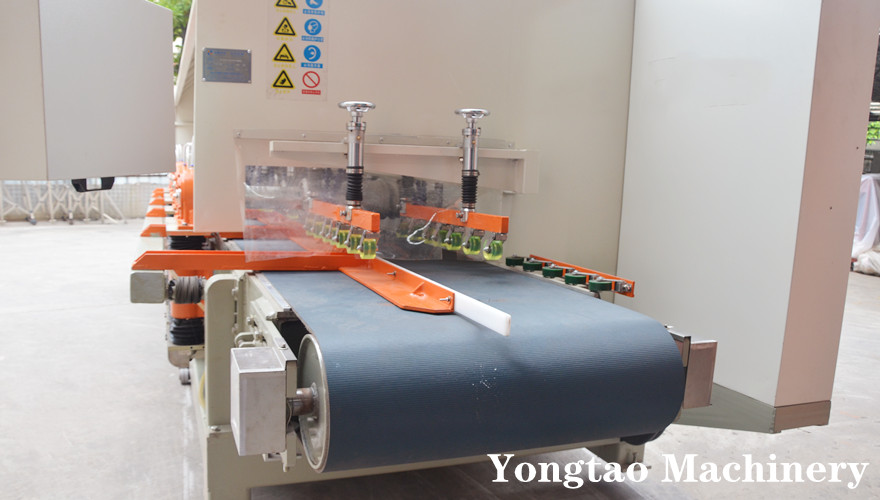

Place the first face in the correct processing position. The conveyor carries the workpiece through all eight stations, completing single-face stone column profiling and polishing in one pass.
After the first face is finished, rotate the workpiece to expose the second face. Check its orientation and position before beginning the next pass.
Repeat the same procedure for the remaining faces. Four-side square column processing requires four passes because the machine profiles and polishes one face at a time.
Compare all four faces for profile dimensions, transition continuity, corner alignment and surface finish. Batch production should begin only after the first completed column has been approved.
Watch the YSXP-800 process square stone columns through four profiling and four polishing stations. The machine shapes and finishes one flat face during each pass, while a complete four-sided column requires four passes with the workpiece rotated between cycles.

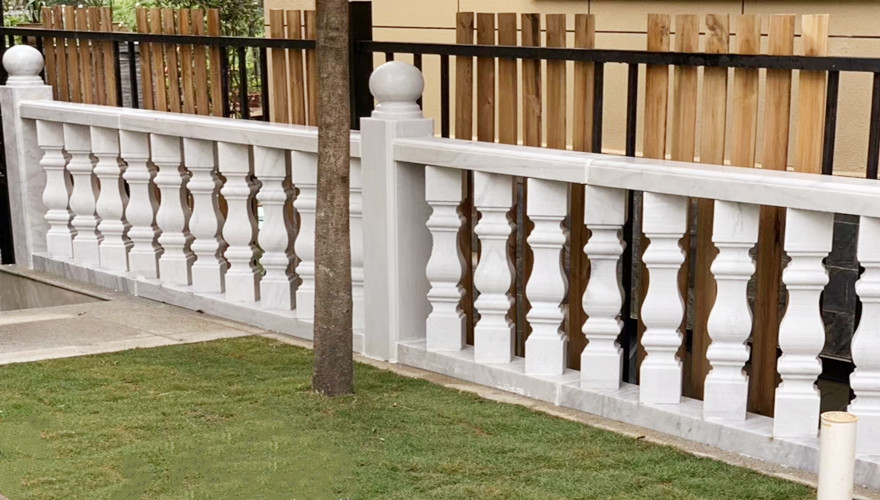

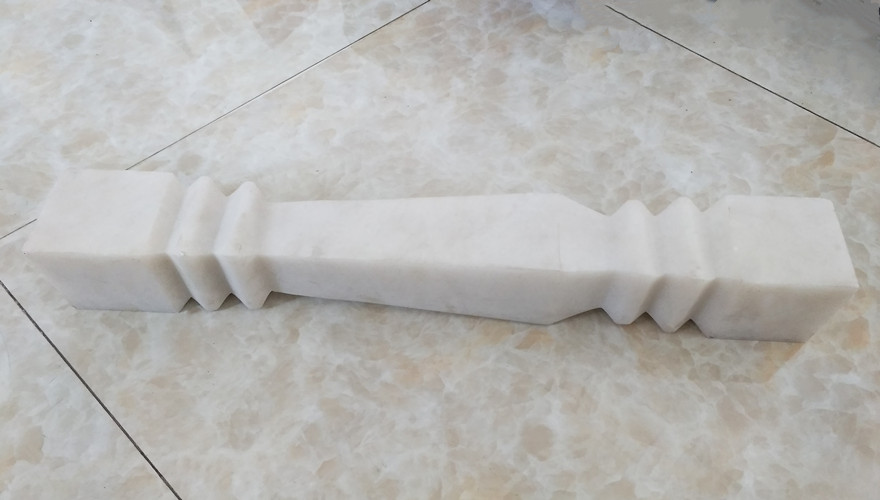

The machine is intended for square and flat-faced architectural stone components. Typical products include:
Square stone columns
Marble square columns
Granite square columns
Artificial stone columns
Square stone pillars
Marble square pillars
Square stone balusters
Marble balustrade posts
Stone railing posts
Decorative architectural columns
Engineered stone pillars
Custom flat-faced column components
With correctly matched tooling, the machine can operate as a stone square pillar profiling machine or stone square baluster profiling machine for suitable products.
The YSXP-800 processes only square stone columns, square balusters and other four-sided column products. It cannot process round stone columns or rotary balusters, which require a dedicated stone column lathe or rotary profiling machine. Customers should provide workpiece photographs and dimensioned cross-sectional drawings so the correct processing method can be confirmed before production.
Guangxi White marble is used for columns, railings and architectural decorative products. A Guangxi White marble column profiling machine configuration should use wheels and operating settings matched to the actual stone batch.
Natural variation, veins and local differences in hardness may affect forming and polishing. Trial processing is recommended before continuous production.
Hanbaiyu is commonly described for international customers as Chinese white marble. A Chinese white marble column profiling machine must provide controlled material removal, especially when the profile includes narrow raised sections or detailed curved transitions.
The approved sample should be checked for chipping, grinding marks, profile symmetry and finish before confirming production settings.
Suitable granite columns can be processed with tooling selected for the stone’s hardness and grain structure. Granite generally requires a different wheel and abrasive plan from marble.
Do not assume that settings established for marble will produce the same result on granite. The actual material should be tested first.
The machine can be configured as an engineered stone column profiling machine or artificial stone square column profiling machine for suitable products.
Resin content, aggregate size, material density and heat sensitivity should be reviewed before wheel selection. Sample processing is necessary when introducing a new engineered material.
| Specification | Technical Data |
|---|---|
| Model | YSXP-800 |
| Machine Type | 8-head stone square column profiling machine |
| Number of Profiling Heads | 4 |
| Profiling Motor Power | 15 kW per head |
| Number of Polishing Heads | 4 |
| Polishing Motor Power | 11 kW per head |
| Conveyor Belt Width | 850 mm |
| Conveyor Motor Power | 5.5 kW |
| Maximum Processing Width | 800 mm |
| Maximum Processing Thickness | 100 mm |
| Processing Speed | 0.3–2 m/min |
| Total Installed Power | 109.5 kW |
| Machine Dimensions | 6.0 × 2.1 × 2.3 m |
| Approximate Machine Weight | 11,000 kg |
| Applicable Materials | Marble, granite and artificial stone |
Specific electrical configuration, tooling, processing limits and supply scope should be confirmed in the technical agreement and sales contract.
A four-sided architectural column requires each face to follow the approved design while maintaining coordinated transitions at the corners. Processing one face at a time allows the operator to position, inspect and approve each side according to the same reference.
The single-face method is particularly useful for repeated square-column orders because it allows factories to:
Use the same wheel sequence for every face
Inspect each surface before rotating the workpiece
Maintain a consistent processing direction
Record settings for repeat orders
Identify wheel wear before it affects an entire batch
Produce different column profiles by changing matched wheel sets
Productivity depends on the profile depth, stone hardness, column size, feed speed, handling method and finish requirement. Production capacity and labor savings should be confirmed from actual workpieces rather than estimated from head count alone.
Tooling should be selected from the finished product, not only from the machine model. Before a wheel set is prepared, provide:
Stone type
Workpiece photographs
Column length, width and thickness
Dimensioned profile cross-section
Profile depth and width
Curves, radii and transition points
Required surface finish
Planned production quantity
Number of designs to be processed
Frequency of profile changes
When no formal drawing is available, a physical sample may be used for technical evaluation. However, the final tooling dimensions should still be recorded to make future replacement and repeat production more reliable.
A finished square column should be inspected as a complete four-sided product. Checking only one polished face is not sufficient.
Recommended inspection points include:
Profile conformity to the approved drawing
Consistent depth and width on all four faces
Alignment between adjacent faces
Smooth transitions at raised and recessed sections
Corner condition after each rotation
Visible grinding marks
Incompletely polished areas
Surface consistency across the production batch
Changes caused by wheel wear
Workpiece movement during conveying
Differences between the first and last sections of the column
Establish a first-piece approval procedure before batch processing. Record the material, profile drawing, wheel set, feed speed and inspection results for future repeat orders.
The YSXP-800 is suitable for stone factories that regularly produce square columns, square pillars, square balusters or balustrade posts with repeated profiles.
It is especially appropriate when:
Each workpiece has four flat faces
One face can be processed during each pass
Forming and polishing must be completed in sequence
Orders involve repeated profiles
Manual finishing creates inconsistent results
Different designs can be managed through replaceable wheel sets
A maximum processing width of 800 mm meets the product requirement
Yongtao is a stone square column profiling machine manufacturer that develops and supplies equipment for stone forming, polishing and architectural component production.
For the YSXP-800, technical evaluation begins with the customer’s actual product. The material, column dimensions, profile drawing, surface requirement and production plan are reviewed before the tooling and machine configuration are confirmed.
Available project support may include:
Workpiece and profile evaluation
Wheel-set configuration
Sample material testing
Electrical configuration confirmation
Installation and commissioning guidance
Operator training
Wheel replacement guidance
Production-process recommendations
Maintenance support
After-sales technical assistance
The final machine configuration and service scope should be recorded in the contract to ensure that both parties use the same technical basis.
After the material, column dimensions and profile drawing have been technically reviewed, the project configuration can be confirmed according to the required output, electrical supply and service scope.
To receive an accurate stone square column profiling machine price, provide:
Planned production quantity per shift or day
Number of profile designs required
Local voltage, frequency and phase
Available installation space
Loading and unloading conditions
Required spare wheels and wear parts
Installation and commissioning requirements
Operator training requirements
Yongtao will use this information together with the confirmed workpiece data to prepare the machine configuration, tooling scope and project quotation.
The YSXP-800 is designed for square stone columns, square pillars, square balusters and flat-faced architectural posts. It profiles and polishes one face of the workpiece during each pass.
A complete square column requires four passes. After the first face is processed, the workpiece is rotated so the remaining three faces can be profiled and polished individually.
The machine uses four profiling heads followed by four polishing heads. The first section forms the required geometry, while the second section refines and finishes the shaped face.
Yes, suitable Guangxi White marble products can be tested and configured for processing. The actual material, column dimensions, profile and finish requirement should be reviewed before the wheel set is confirmed.
Suitable Hanbaiyu, commonly described as Chinese white marble, can be processed with correctly matched tooling and settings. Trial processing is recommended to evaluate veins, hardness variation, chipping and final finish.
It can process suitable engineered and artificial stone products when the wheel specification and operating settings match the material. Resin content, aggregate structure and heat sensitivity should be considered during testing.
Yes. Different profiles can be produced by replacing the complete matched wheel set. Each design requires a corresponding cross-section, wheel geometry and sample-approval process.
No. The YSXP-800 is designed exclusively for profiling and polishing square stone columns, square balusters and other four-sided column products. It processes one flat face per pass, and a complete square column requires four passes. Round stone columns and rotary balusters cannot be processed on this machine and require a dedicated stone column lathe or rotary profiling machine.
The finish depends on the stone, profile geometry, wheel sequence, abrasive condition, feed speed, cooling water, workpiece stability and required appearance. The approved sample should be used as the production reference.
Send the material, column dimensions, profile drawing, required finish, planned output and local electrical conditions. Yongtao will review the information and recommend the machine, tooling and service configuration.
