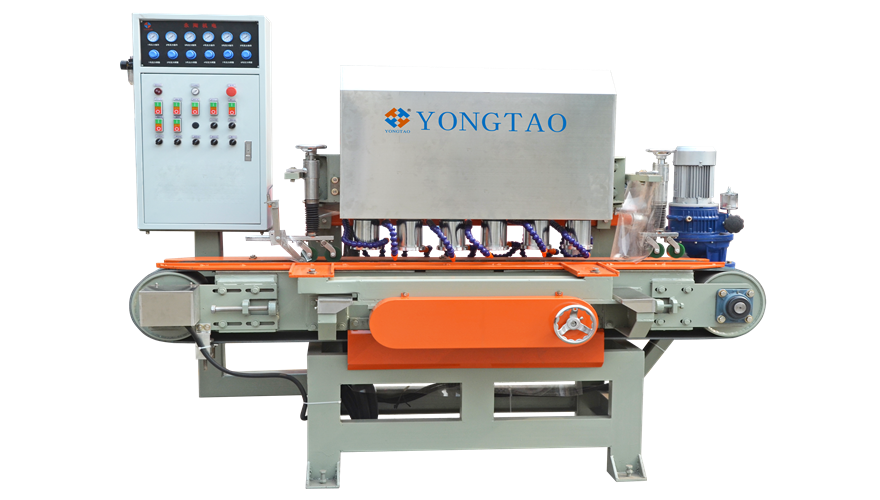

YSU-200 6 Head Stone Surface Polishing Machine

YSU-200 6 Head Stone Surface Polishing Machine

Marble Flat Polishing Machine-Yongtao Stone Machine
YSU-200 6 Head Stone Surface Polishing Machine
  • YSU-200 6 Head Stone Surface Polishing Machine
  • YSU-200 6 Head Stone Surface Polishing Machine
  • YSU-200 6 Head Stone Surface Polishing Machine
  • YSU-200 6 Head Stone Surface Polishing Machine
  • YSU-200 6 Head Stone Surface Polishing Machine
  • YSU-200 6 Head Stone Surface Polishing Machine
  • YSU-200 6 Head Stone Surface Polishing Machine

Description of YSU-200 6 Head Stone Surface Polishing Machine

YSU-200 6 Head Stone Surface Polishing Machine, this machine is applied to polish small size slab. The polishing head can be manual or auto down. By the method of polishing head automatic dropping, the worker only need to simplify operate the machine, the machine will do automatic polishing. It’s specially suit for polishing small slab with small quantity of daily output. It can be adjust the polish speed according to different materials. The machine have the advantage of high speed polish, simple operation, good brightness, and small volume. Yongtao machinery can customize machines for different requirement by clients.

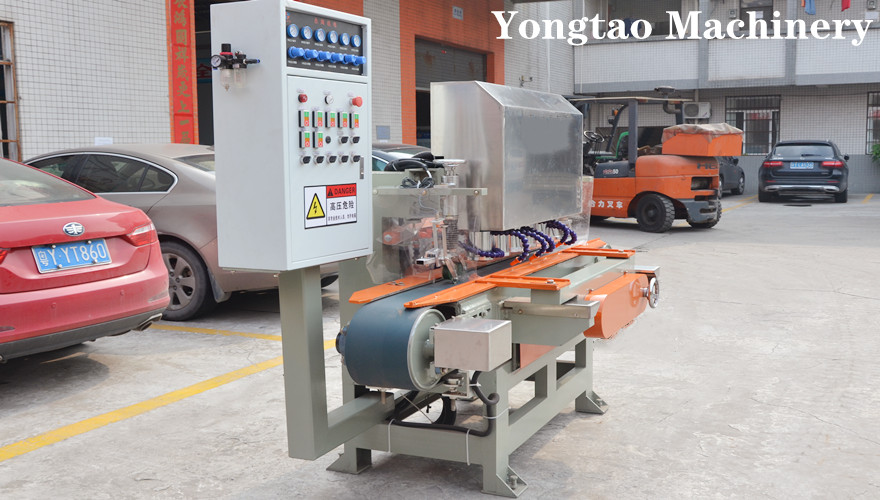

Small Stone Polishing Machine:

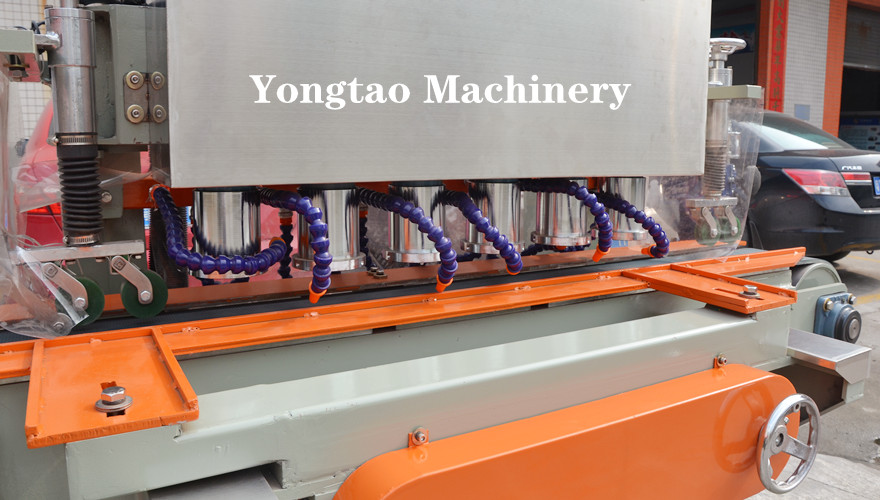

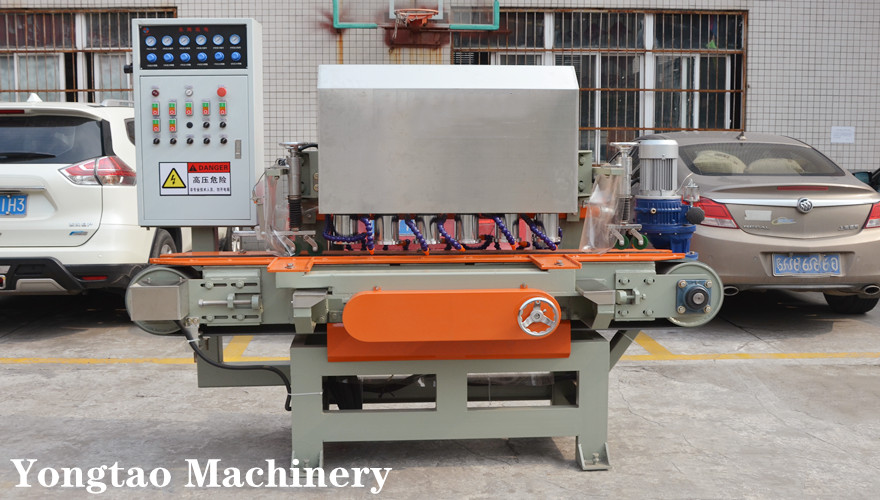

Small Stone Polishing Machine

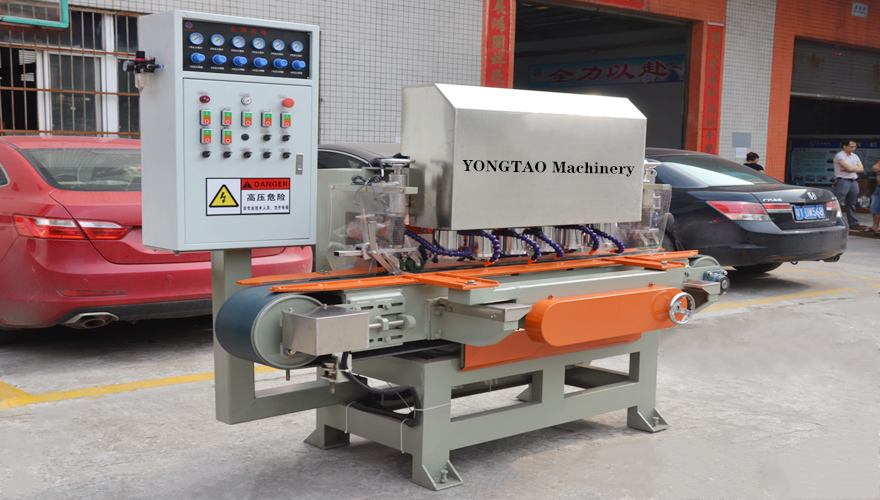

YSU-200 6 Head Stone Surface Polishing Machine
Processing materials: Marble, artificial stone, quartz, etc stones
Method of press wheel lifting: Manual adjustment
Water pipe type: universal water pipe
Water proof method: stainless steel cover
Press wheel material: PU
Screw: stainless steel

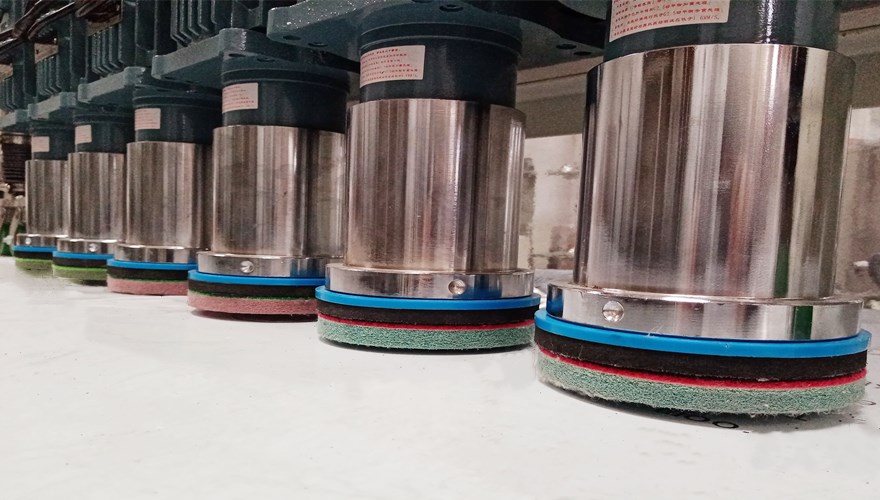

Polishing head drive: Pneumatic
Method of polishing head control: independent button
Speed adjustment: CVT


Parameter of YSU-200 6 Head Small Stone Polishing Machine:

No

Name

Parameter

1

Numbers of polishing head

6pcs

2

Motor power

0.75kw

3

Diameter of polishing head

125mm

4

Conveyor belt width

200mm

5

Processing thickness

10-50mm

6

Processing speed

0.1-3.0m/min

7

Method of baffle control

By manual

8

Total power

5.6kw

9

Water consumption

100L/min

10

Air consumption

30L/min

11

Size of machine

2.38m*1.1m*1.96m

12

Weight

About1500kg
