Description of YSMP-800 1+8 Stone Flat Edge Polishing Machine

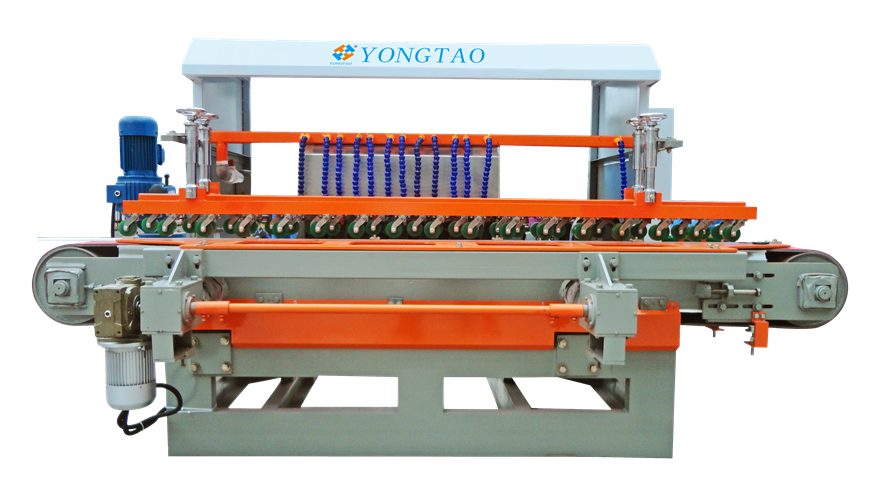

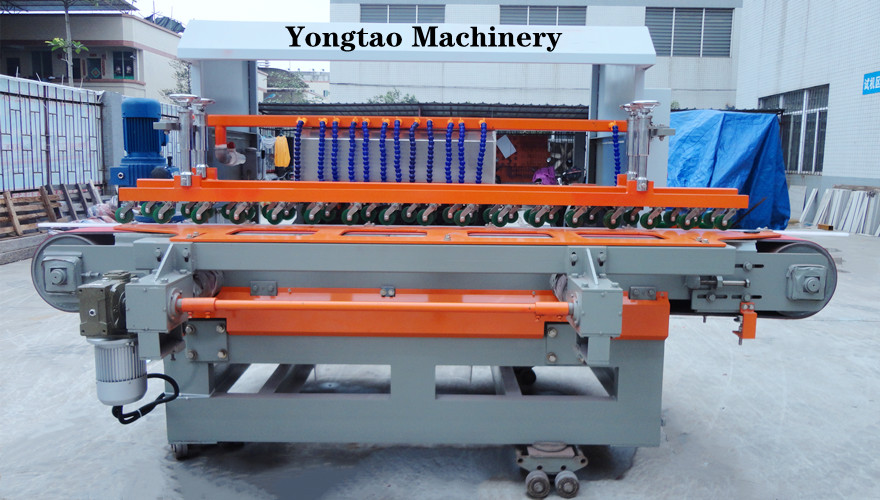

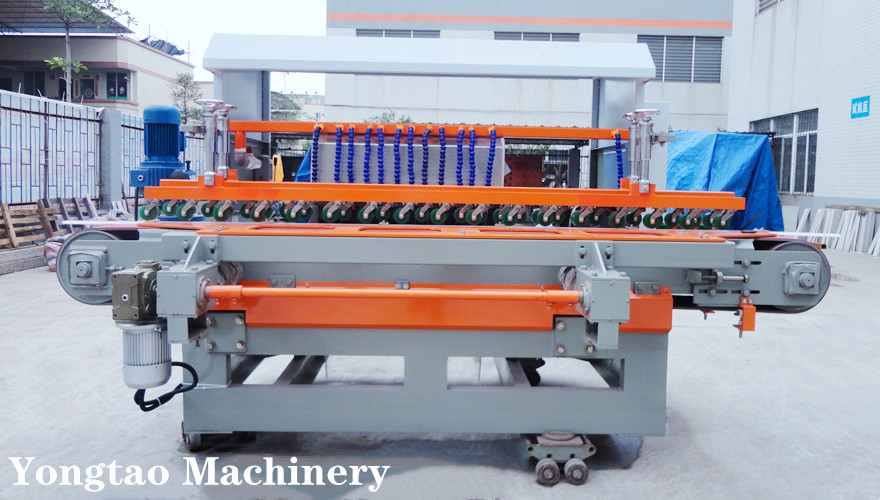

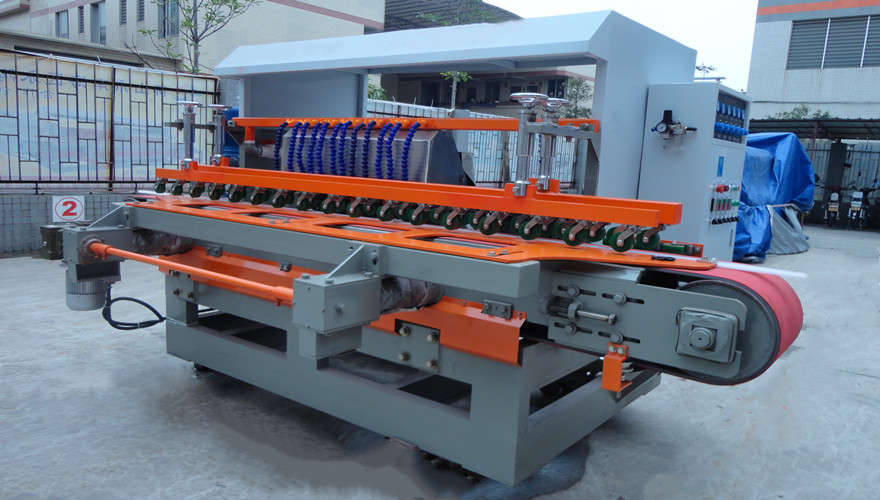

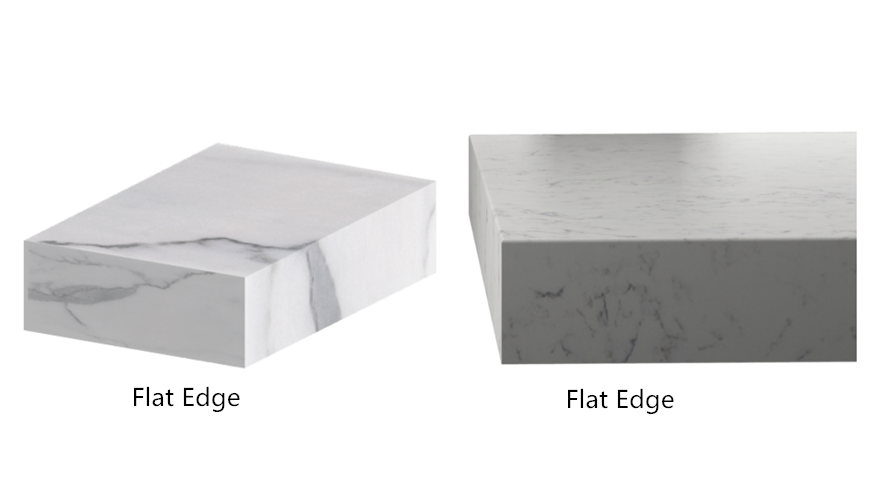

YSMP-800 1+8 Stone Flat Edge Polishing Machine is the latest marble polish machine by Yongtao machinery. The machine has one diamond grinding wheel in the front, which can make squaring to the slab edge if it is over size, and has 8 polishing head at the behind, which can polish the flat edge. The processing materials: stone, marble, granite, artificial stone and other materials of edge grinding process, before the edge grinding, please use infrared bridge stone cutting machine, cutting the slab into a fixed specifications, and then use this polishing machine to process flat edge polishing. The squaring wheel use the diamond wheel, and the polishing wheel use grinding slice or sponge slice. Using these wheels, the polishing effect of flat edge is perfect. The polishing head drive by pneumatic device. So we suggest that prepare a air compressor if the factory didn't have any compressor. The machines have the advantage of reasonable designing, simple operation, easy to maintain, high highly speed of output, are popular by lots of stone processing factory.

Technical Parameter of YSMP-800 1+8 Stone Flat Edge Polishing Machine

No

Name

Parameter

1

Number of squaring head

1pc

2

Squaring motor

3kw

3

Numbers of polishing head

8pc

4

Diameter of polishing disc

125mm

5

Polishing head motor

3kwX4个

7

Processing width

80-800mm

8

Processing thickness

10-60mm

9

Processing speed

1—5.0m/min

10

Total power

17kw

11

Electric consumption

14kw/H

12

Water consumption

350L/min

13

Size of machine

3.50m×2.00m×1.80m

14

weight

2500kg
