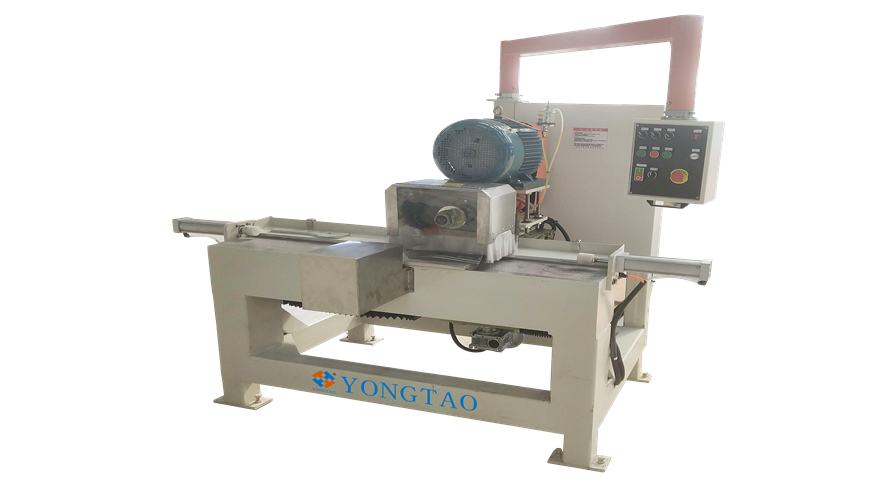

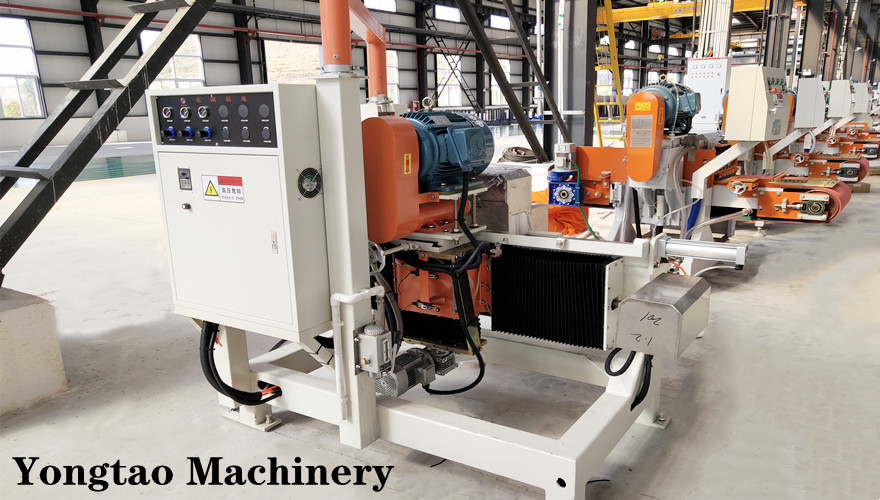

The YSMP-150 stone mosaic profiling machine is designed to form rectangular marble and natural stone strips into consistent curved or irregular profiles. It uses a customized profile wheel to create the required cross-sectional shape before the profiled strip is cut into individual mosaic pieces.
This special-shaped stone mosaic machine is suitable for producing arabesque, lantern, curved and other decorative mosaic designs. It is intended for mosaic manufacturers, stone processing factories and businesses that require stable batch production of identical special-shaped pieces.
The machine combines an 11 kW main motor, two-cylinder workpiece clamping, adjustable profile movement and a rigid casting structure. Its maximum processing width is 150 mm, its processing thickness is 10–70 mm, and its processing speed is 0.8–2 m/min. The actual operating speed depends on the stone, profile depth, wheel specification and required edge quality.

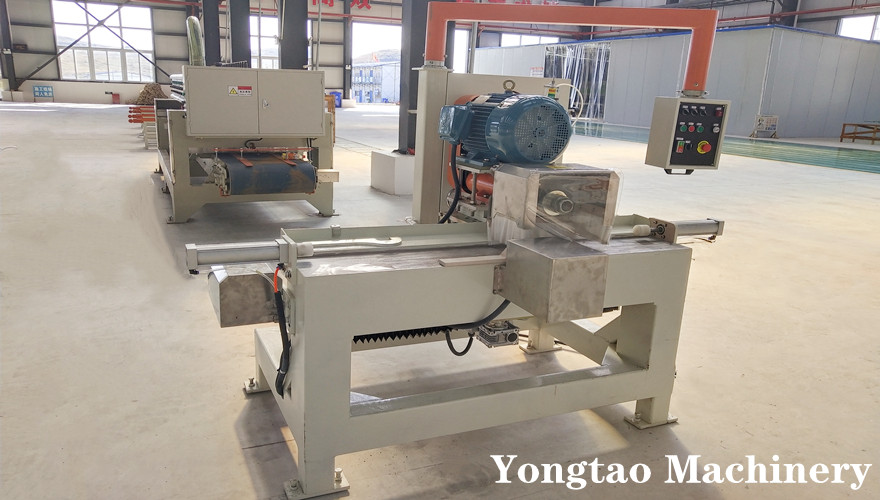

The YSMP-150 is a marble mosaic profiling machine used to shape stone strips before slicing. It does not directly cut a complete mosaic sheet. The machine first forms a continuous profile with a customized wheel. A separate stone mosaic cutting machine then slices the profiled strip into individual pieces for calibrating, arranging and polishing.
The YSMP-150 converts straight stone strips into consistent special-shaped profiles. The operator places the prepared material in the working area and secures it with two cylinders. The profile wheel then travels along the material and removes stone according to the geometry of the wheel.
The finished outline is determined by the profile wheel. Changing the wheel allows the marble mosaic shaping machine to produce different profiles, provided that the stone dimensions and required shape remain within the machine’s processing range.
This production method is suitable for repeated processing because multiple mosaic pieces can be obtained from one profiled strip. After profiling, the strip is cut into slices of the required thickness. The individual pieces can then be calibrated, arranged into the intended pattern and polished according to the required surface finish.

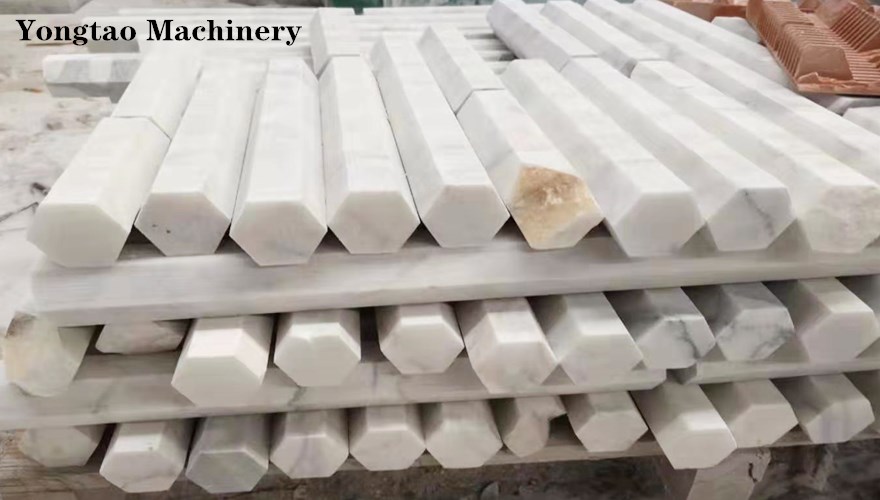

The marble or natural stone is first cut into a straight strip with dimensions suitable for the selected mosaic design. Consistent incoming dimensions help maintain a stable profile during batch processing.
The prepared strip is placed in the working area and secured by two cylinders. Correct positioning is important because material movement during profiling can affect the outline and edge consistency.
A profile wheel matching the approved design is installed. The standard wheel diameter used by the YSMP-150 is Ø200 × 60 mm. Its geometry determines the continuous cross-sectional shape produced on the stone strip.

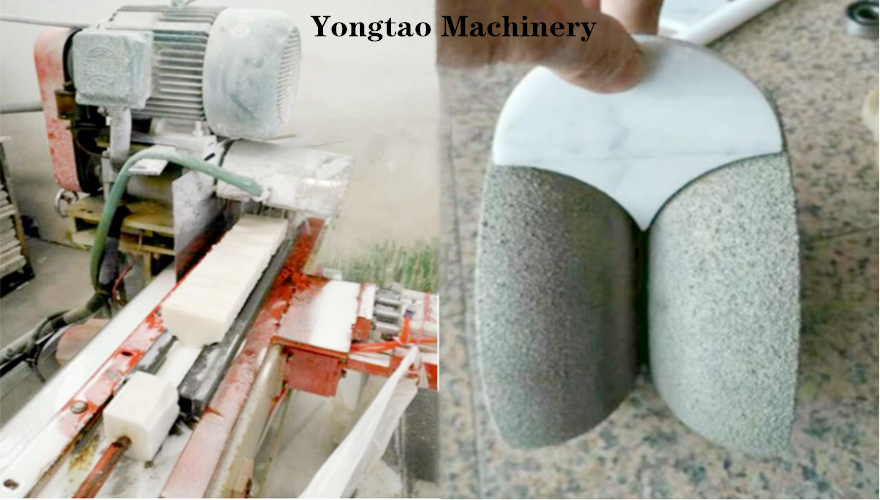

The profile wheel moves along the guide and forms the required outline. Processing speed should be selected according to the stone characteristics, material thickness, profile depth, wheel condition and required finish.
After profiling, a separate stone mosaic cutting machine cuts the formed strip into individual slices. The YSMP-150 performs the shaping operation and does not replace the slicing stage.
The sliced pieces are calibrated when required, arranged into the selected mosaic pattern and processed with a mosaic polishing machine to achieve the specified flatness and surface finish.
The YSMP-150 can be configured for repeated production of custom profiles. Typical applications include:
Arabesque marble mosaic designs
Lantern-shaped marble mosaic pieces
Moroccan lantern mosaic patterns
Baroque-style curved mosaic pieces
Repeated curved or irregular stone profiles
Decorative marble and natural stone mosaics
Custom designs based on an approved drawing or sample
For an arabesque marble mosaic machine application, the requested outline must first be evaluated against the machine’s processing width, material thickness and wheel dimensions. A lantern shape mosaic machine configuration similarly requires a profile wheel designed for the approved lantern outline.
The machine may also be configured as a curved stone mosaic profiling machine or irregular stone mosaic shaping machine when the design can be produced as a continuous profile and subsequently divided into slices.
Not every decorative pattern can be produced with the same wheel. The stone type, strip dimensions, inside curves, outside curves and narrow profile sections should be reviewed before the customized wheel is manufactured.
Customers should provide a dimensioned drawing, desired slice thickness and, when available, a physical finished sample. This information helps determine whether the requested shape is suitable for the YSMP-150.
Profiling the complete strip before slicing provides a practical method for producing repeated mosaic pieces with the same outline. Instead of shaping each small piece separately, the machine forms a continuous profile from which multiple pieces can be cut.
This workflow provides several production advantages:
Repeatable shapes across the same production batch
More stable positioning of the larger stone strip
Efficient production of multiple pieces from one profile
Easier control of the required cross-sectional outline
Flexible shape changes through customized profile wheels
Clear separation between profiling, slicing and polishing
The final accuracy and surface condition depend on the incoming stone, wheel condition, clamping, operating settings and subsequent slicing process. A sample test is recommended before production is confirmed for a new material or profile.
Two cylinders secure the stone strip in the working area. Stable clamping helps reduce material movement while the profile wheel travels along the stone.
The final outline is determined by the profile wheel. Different wheels can be prepared for arabesque, lantern, curved and other approved mosaic designs.
The machine uses a precision screw rod with a protective dust cover. This structure supports controlled movement and helps reduce direct exposure of the screw mechanism to stone-processing residue.

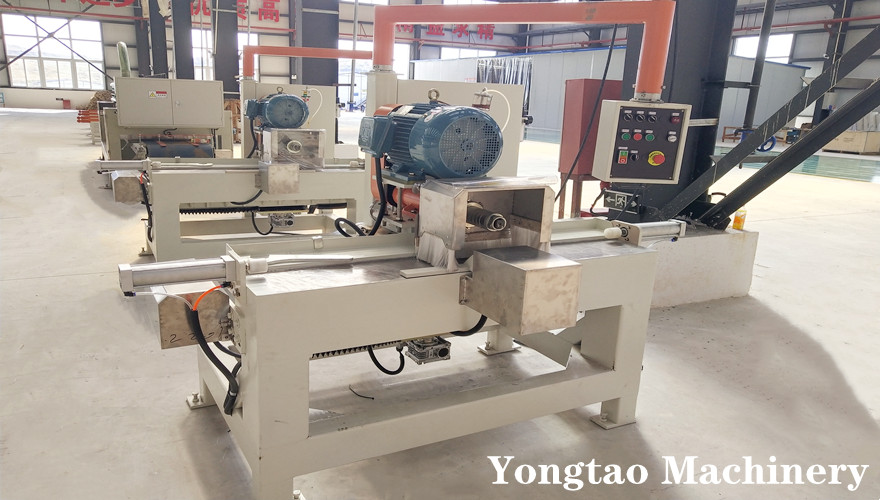

The casting structure provides a stable machine base. Its rigidity helps control vibration during continuous and repeated profiling.
The main motor provides the power required for profile grinding. The appropriate processing speed must still be selected according to the stone and profile geometry.

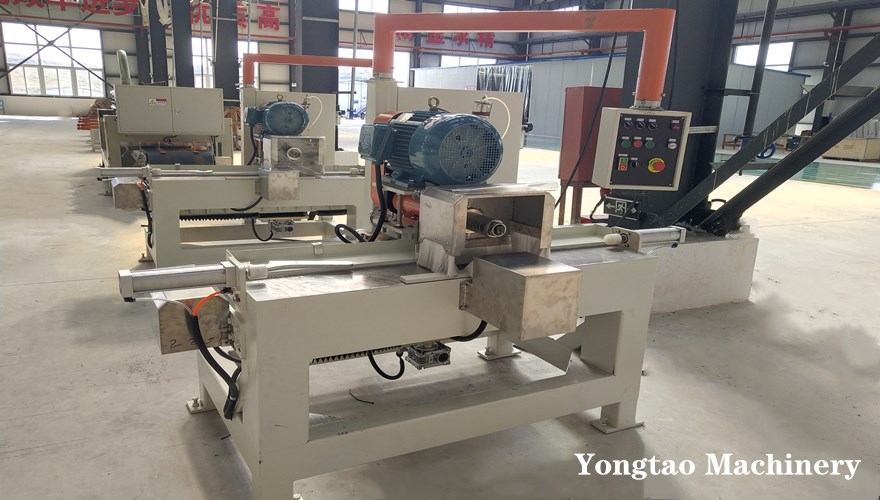

The movable control cabinet allows the operating position to be adjusted according to the workshop layout and production arrangement.
The machine supports material widths up to 150 mm and thicknesses from 10 to 70 mm, allowing it to process different approved mosaic profile specifications.
| Item | Specification |
|---|---|
| Model | YSMP-150 |
| Machine function | Profiling special-shaped marble and natural stone mosaic strips |
| Number of motors | 3 |
| Main motor power | 11 kW |
| Lifting motor power | 0.55 kW |
| Horizontal movement motor power | 0.55 kW |
| Profile movement travel | 1000 mm |
| Profile wheel diameter | Ø200 × 60 mm |
| Lifting height | 65 mm |
| Cylinder travel | 200 mm |
| Baffle travel | 150 mm |
| Maximum processing width | 150 mm |
| Processing thickness | 10–70 mm |
| Processing speed | 0.8–2 m/min |
| Total power | 12.1 kW |
| Machine weight | Approximately 1200 kg |
The specifications above describe the standard YSMP-150 configuration. The final configuration should be confirmed according to the stone, required profile, incoming strip dimensions, finished piece thickness and production requirements.

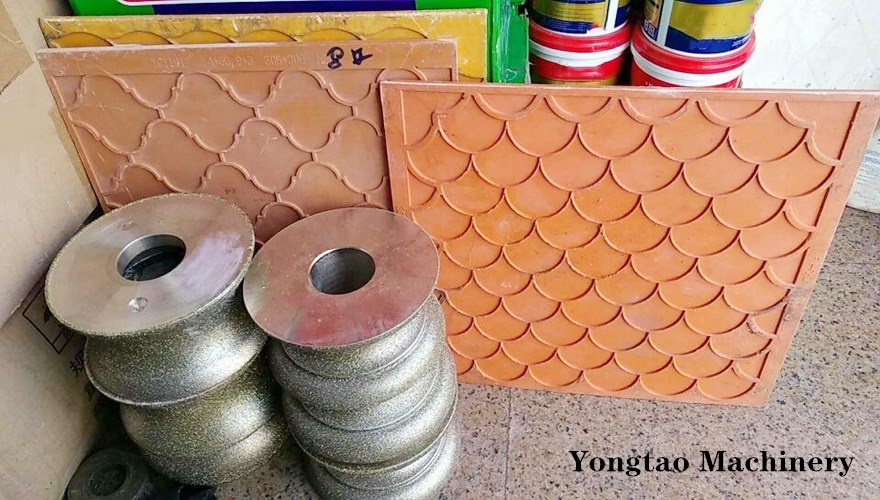

The profile wheel is one of the most important elements in special-shaped mosaic production. The finished stone outline follows the wheel geometry, so the wheel must be designed according to the required product rather than selected only by its outside diameter.
To evaluate a customized profile wheel, customers should provide:
A dimensioned profile drawing
The required processing width and thickness
The intended slice thickness
The stone name or a representative material sample
Photos of the required finished mosaic
The expected production volume
Requirements for the profiled surface and edges
For complex shapes, a test using the actual stone is recommended. Marble and other natural stone can differ in hardness, grain structure, veins and brittleness. Testing helps confirm whether the selected profile, wheel and processing speed can produce an acceptable result.
The YSMP-150 is one item of stone mosaic processing equipment rather than a complete production system by itself. Finished special-shaped mosaics normally require several separate processes, including strip preparation, profiling, slicing, calibrating, arranging and polishing.
A complete set of stone mosaic machinery can be selected according to the starting material and required finished product. Yongtao can supply individual natural stone mosaic processing machines or the equipment required for the complete processing workflow.
Stone mosaic cutting machine for preparing stone strips
YSMP-150 stone mosaic profiling machine for forming the required outline
Stone mosaic cutting machine for slicing the profiled strip
Stone mosaic calibrating machine for controlling thickness and flatness
Mosaic polishing machine for producing the required surface finish
The exact equipment combination depends on whether production starts from stone blocks, slabs, tiles or prepared strips. Customers should confirm the required piece dimensions, surface finish and production capacity before selecting a complete set of stone mosaic machinery.
The YSMP-150 is suitable for:
Marble mosaic manufacturers producing repeated special-shaped pieces
Stone factories adding decorative mosaic products
Natural stone processors requiring customized profiles
Businesses producing arabesque, lantern or curved mosaic patterns
Manufacturers that already have cutting, calibrating or polishing equipment
Buyers establishing a special-shaped stone mosaic processing workflow
This stone mosaic shaping machine is especially suitable when the same profile must be reproduced across a production batch. For projects involving many unrelated shapes in very small quantities, customized wheel cost and changeover requirements should be evaluated before purchase.
To obtain a suitable machine and profile wheel proposal, please provide:
Material name
Material width and thickness
Finished mosaic drawing or sample
Required slice thickness
Expected daily or monthly output
Available power supply
Machines already installed in the production line
Photos or videos of the current production process
These details allow Yongtao to evaluate the machine configuration, profile wheel, supporting stone mosaic processing equipment and production workflow more accurately.
A stone mosaic profiling machine forms straight stone strips into a required continuous outline. The profiled strip is then sliced into individual mosaic pieces. The YSMP-150 uses a customized wheel to produce repeated curved or irregular profiles.
Yes. The machine can be configured for arabesque and lantern-shaped profiles when the requested design is suitable for continuous strip profiling. A corresponding profile wheel must be prepared from the approved drawing or finished sample.
No. The YSMP-150 shapes the complete stone strip. A separate stone mosaic cutting machine is required to cut the profiled strip into individual slices.
Some buyers may describe this type of equipment as a mosaic profile cutting machine, but profiling and slicing are separate operations in the YSMP-150 production process.
Yes. The profile wheel can be designed according to the required outline, dimensions and stone. Customers should provide a dimensioned drawing, material information and preferably a finished sample or clear product photographs.
Provide the stone name, strip width, strip thickness, finished slice thickness and required outline. Because natural stone characteristics vary, a representative sample may be requested before the wheel and operating conditions are confirmed.
No. It is the profiling unit within the complete processing workflow. A complete set normally also includes machines for strip cutting, slicing, calibrating and polishing.
The required natural stone mosaic processing machines depend on the starting material, finished dimensions, surface requirements and production capacity.
The standard processing speed is 0.8–2 m/min. The appropriate operating speed depends on stone hardness, profile depth, strip dimensions, wheel specification, wheel condition and required finish.
The highest available speed is not automatically the correct setting for every material or profile.
Send Yongtao the material information, profile drawing, finished dimensions, required output and power supply. The stone mosaic profiling machine price depends on the confirmed machine configuration, customized profile wheel and any additional equipment required for production.
The YSMP-150 performs the profiling movement after the stone strip has been correctly positioned, clamped and adjusted. Material loading, profile wheel selection and operating setup still require operator involvement.
The required automation level should be confirmed with Yongtao according to the material, profile and production arrangement.
Sample testing can be discussed for a new material or customized profile. Using the actual stone and approved dimensions helps verify the shape, processing method and expected result before the machine and profile wheels are finalized.
Yongtao supplies the YSMP-150 marble mosaic shaping machine together with the related equipment required for cutting, calibrating and polishing. This allows buyers to evaluate the profiling unit as part of the complete production workflow rather than as an isolated machine.
Before recommending a configuration, Yongtao reviews the material, profile drawing, finished dimensions and capacity requirements. Customized profile wheels and sample-based evaluation help match the machine to the intended special-shaped mosaic product.
Send your mosaic drawing, stone information and production requirements to Yongtao for machine configuration, profile wheel evaluation and quotation.
