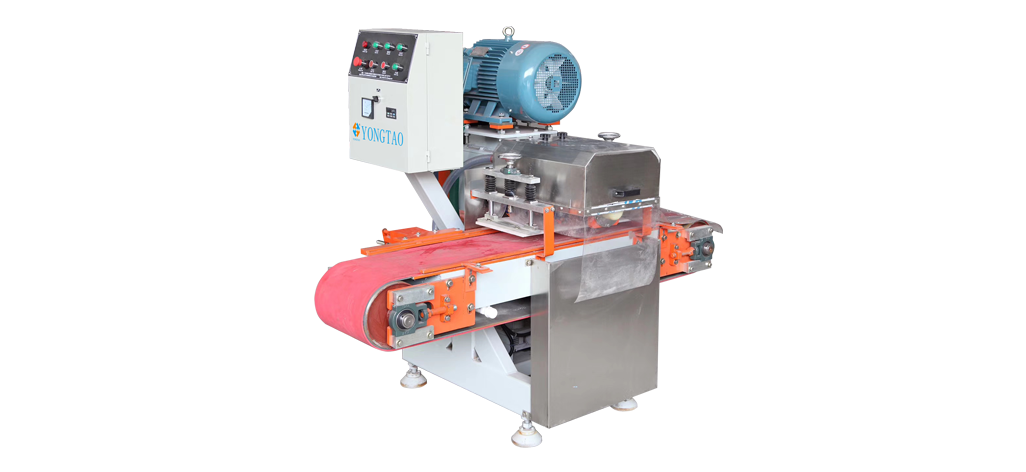

Description of YTQZ-B/1-800 Single Spindle Mosaic Tile Cutters

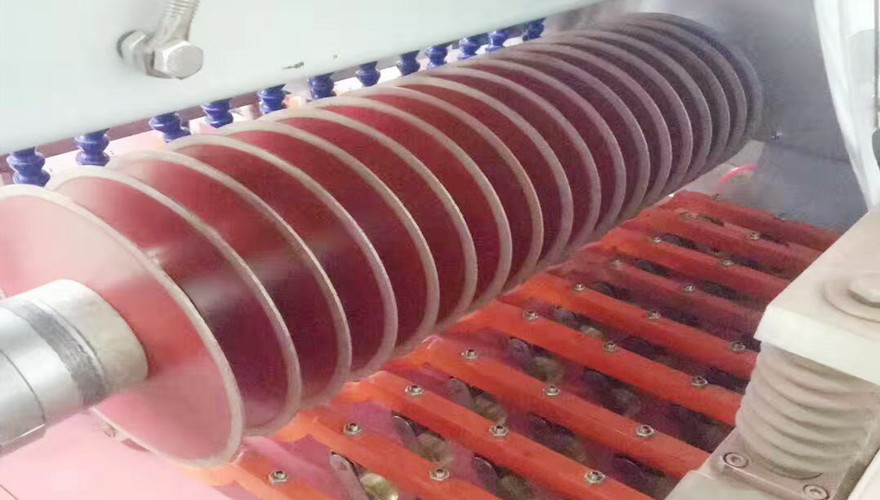

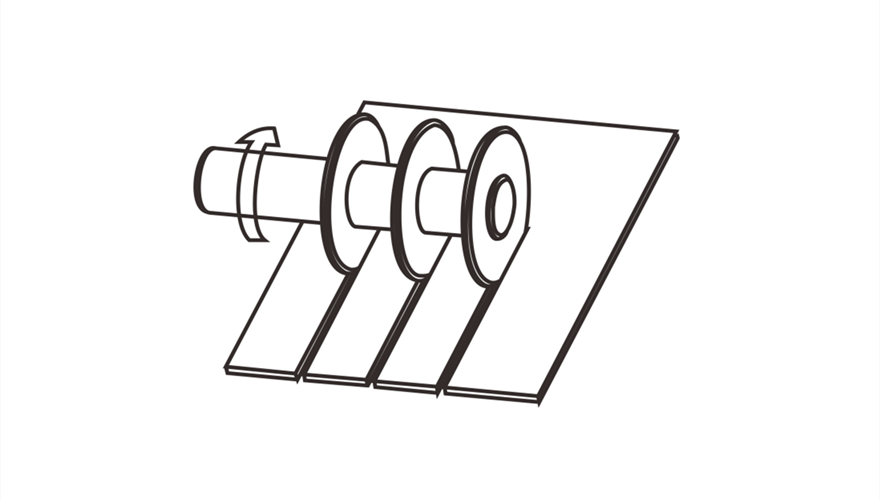

YTQZ-B/1-800 Single Spindle Mosaic Tile Cutters, this is a cutting mosaic tile with tile cutter, it is specialized to cut tile strips or mosaics. It can install 7-8 blades on the spindle, which can cut the tile into several strips in one time. For example, cut 800x800mm tiles, it can install 7pcs of blades, and cut into 10pcs of 98x100 strips. The machine mainly is mainly used to cut strips, the width of strips decided by the distance of blades, which can be adjust by spacer and gasket. We have mosaic tile cutters for sale.

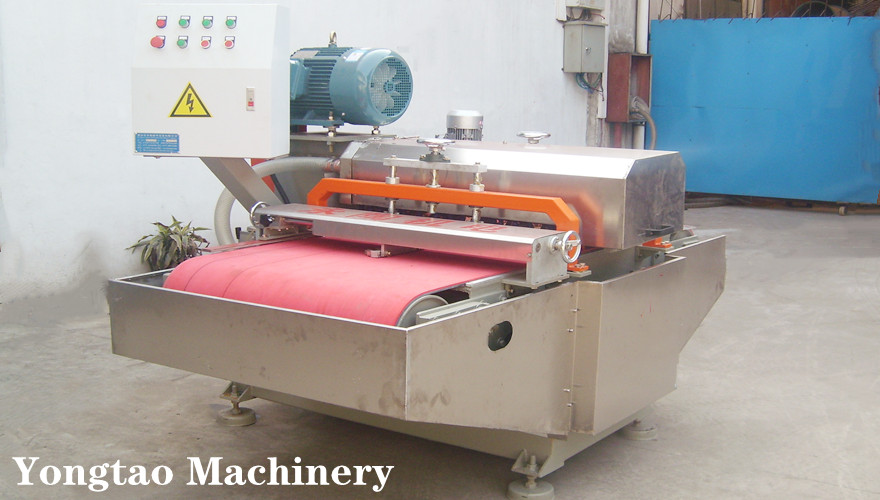

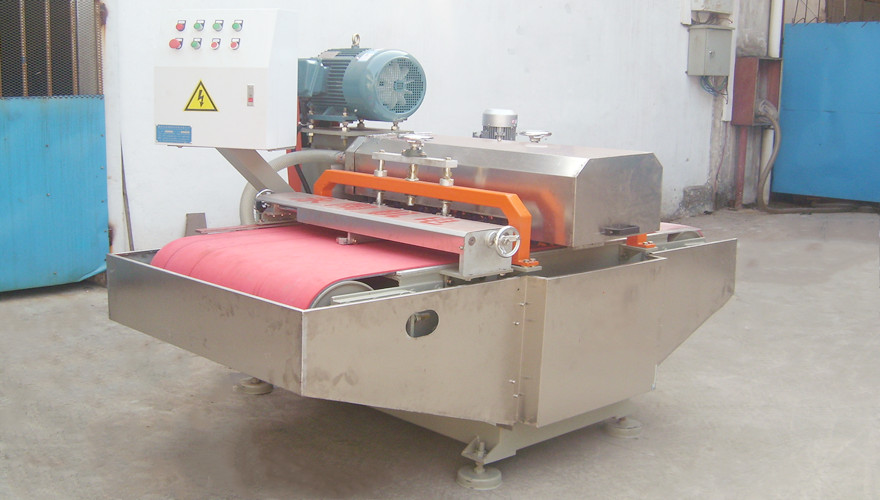

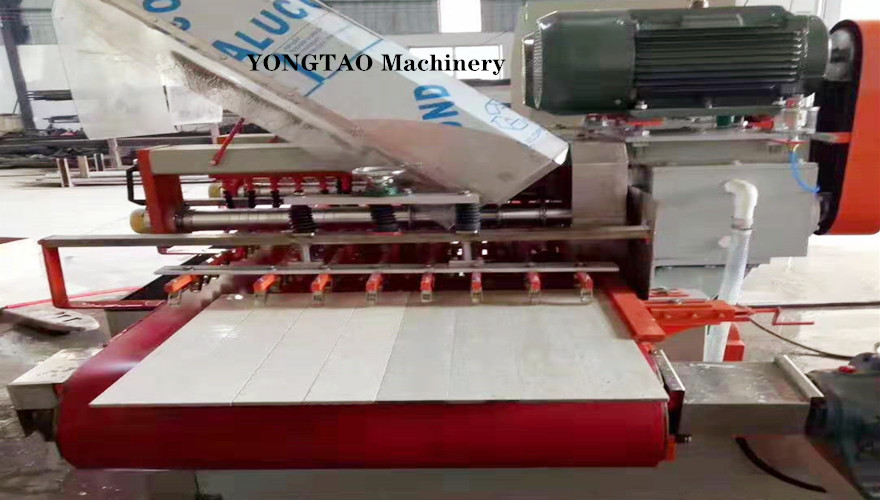

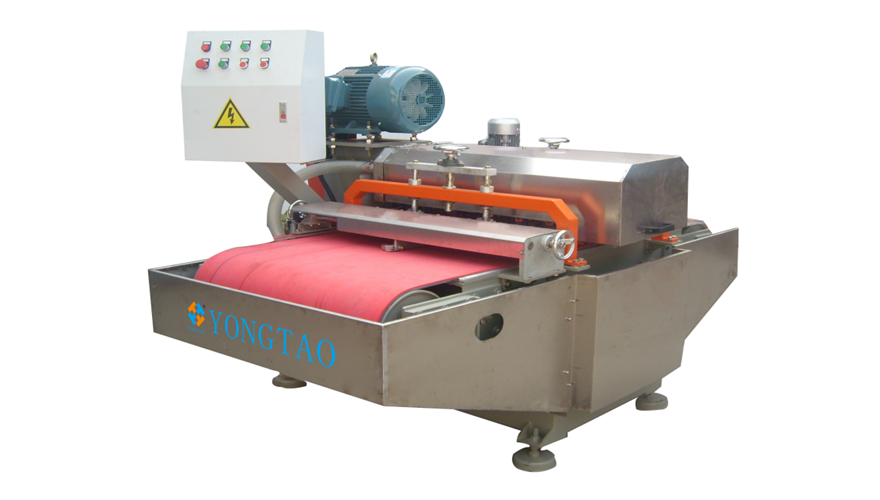

Ceramic Tile Mosaic cutting machine:

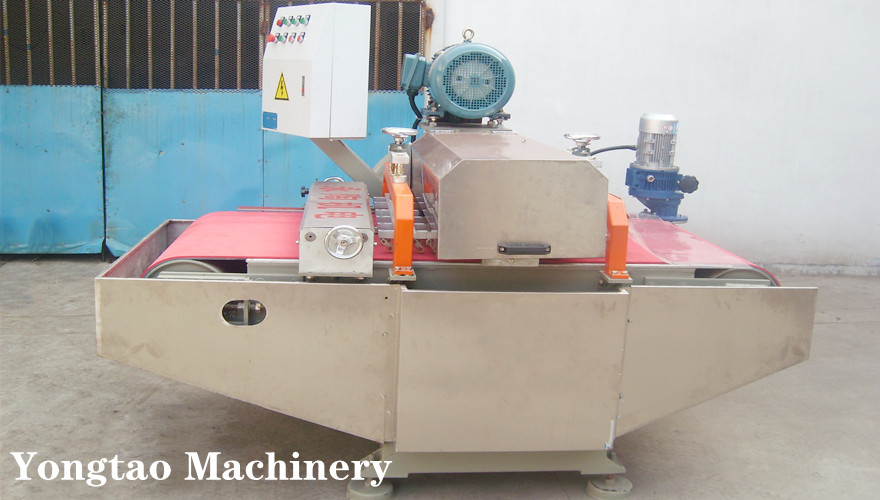

Ceramic Tile Mosaic cutting machine


Parameter of YTQZ-B/1-800 Single Spindle Mosaic Tile Cutters

No.

Name

400

600

800

1

Nos. Of cutting head

1pc

1pc

1pc

2

Width of conveyor belt

420mm

620mm

820mm

3

Dia. Of blade

Φ150-300mm*60mm

Φ150-300mm*60mm

Φ150-300mm*60mm

4

Main motor power

18.5/22kw

18.5/22kw

15/18.5/22/30kw

5

Conveyor motor

0.75kw

0.75kw

0.75kw

6

Speed of conveyor

0.8-4.0m/min

0.8-4.0m/min

0.8-4.0m/min

7

Lifter motor

0.75kw

0.75kw

0.75kw

8

Cutting width

20-400mm

20-600mm

20-800mm

9

Max. Cutting thickness

20mm

20mm

20mm

10

Size of machine

2.11*1.38*1.63m

2.11*1.58*1.63m

2.11*1.78*1.63m

11

Weight

About 1000kg

About 1200kg

About 1500kg

12

Water consumption

200L/min

300L/min

300L/min

13

Application

Mosaic

Mosaic, strips

Mosaic, strips

14

Materials

Stones

Tiles

Tiles
