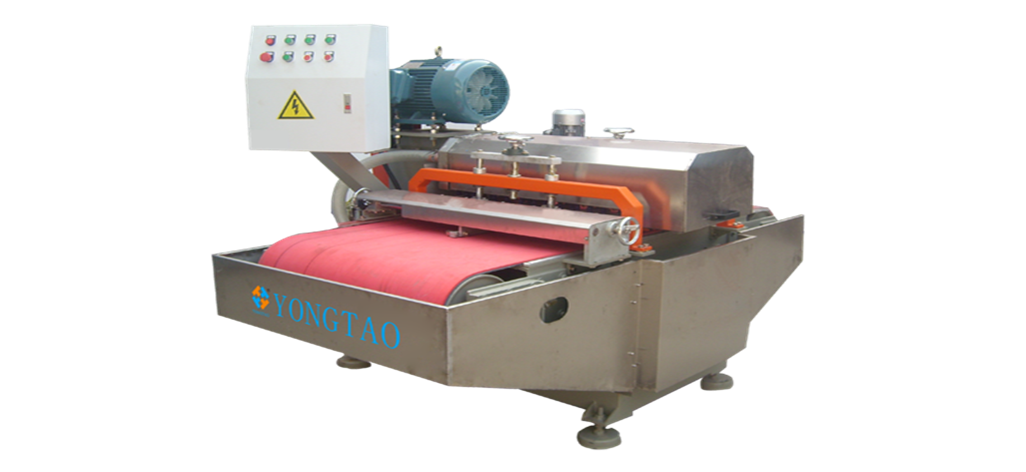

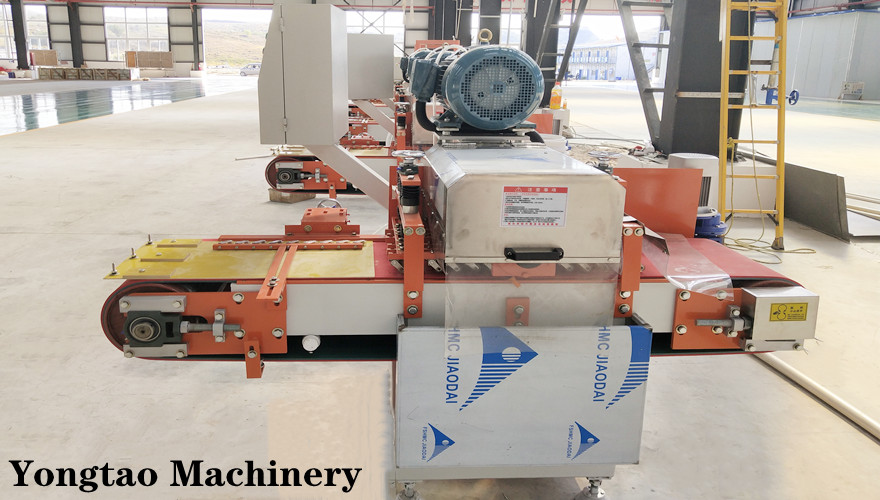

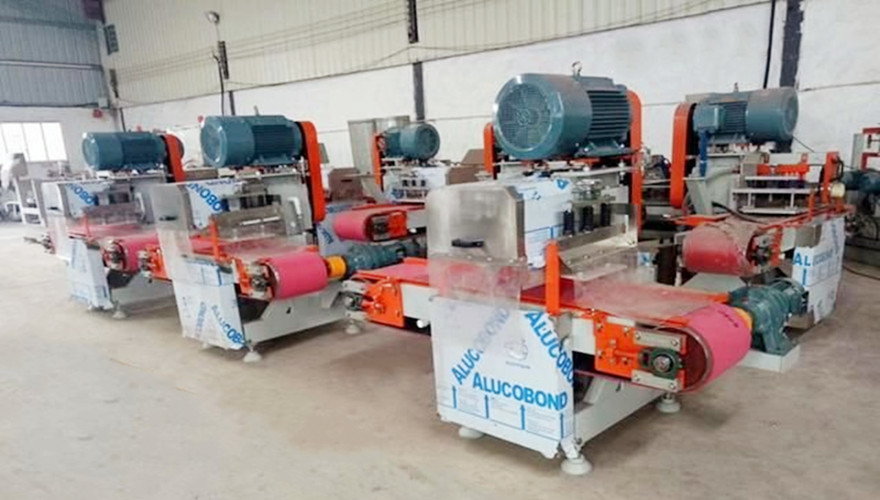

Description of YTQZ-B/1-400 Single Spindle Mosaic Cutting Machine

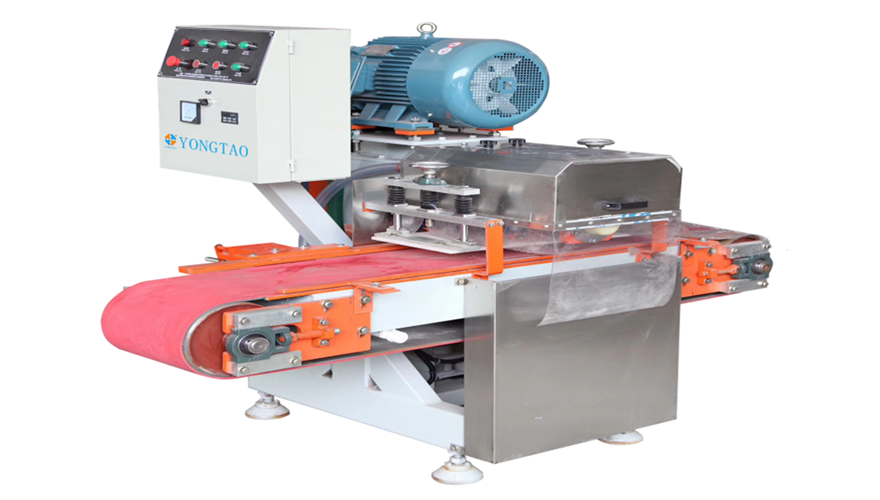

YTQZ-B/1-400 Single Spindle Mosaic Cutting Machine, this is a single pillar stone cutting machine, it is specialized to stone mosaics. It can install 7-8 blades on the spindle. It can cut the mosaic size 15x15mm 20x20mm 25x25mm, 30x30mm.

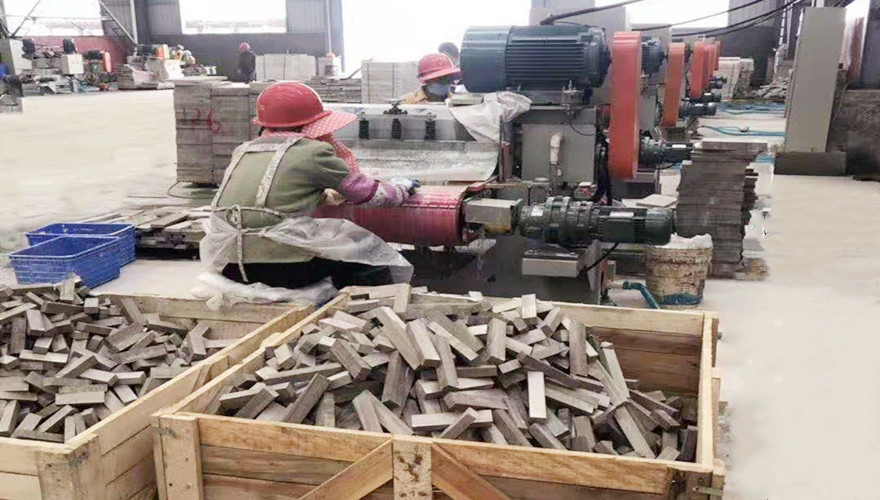

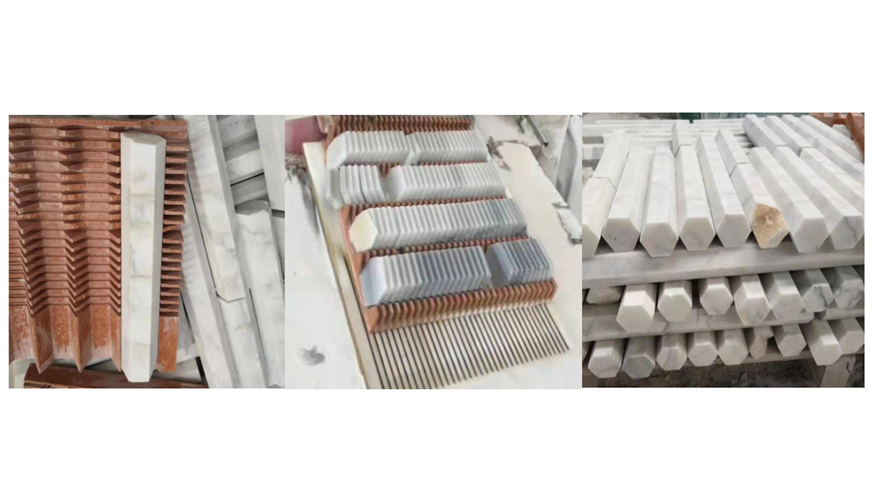

YTQZ-B/1-400 Single Spindle Mosaic Cutting Machine,This is single spindle tile cutting machine, it is specialized to stone mosaics. It can install 7-8 blades on the spindle. It can cut the mosaic size 15x15mm 20x20mm 25x25mm, 30x30mm. For example, to cut 25x25mm marble mosaics, usually cut the 300x300x25mm marble slab into 25x300x25mm strips, and then use the cutting mold to cut the strips into 25x25mm marble mosaics. In this way, the machine can cut the large quantity of marble mosaics.

Parameter of YTQZ-B/1-400 Single Spindle Mosaic Cutting Machine

No.

Name

400

600

800

1

Nos. Of cutting head

1pc

1pc

1pc

2

Width of conveyor belt

420mm

620mm

820mm

3

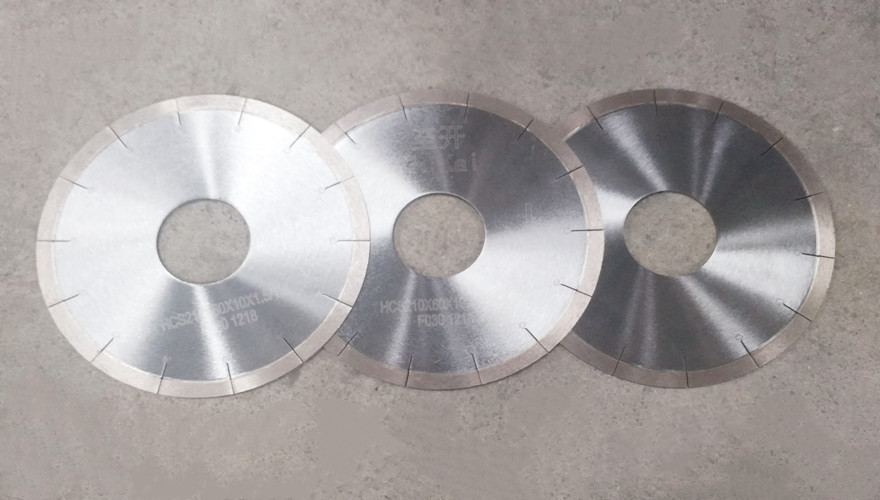

Dia. Of blade

Φ150-300mm*60mm

Φ150-300mm*60mm

Φ150-300mm*60mm

4

Main motor power

18.5/22kw

18.5/22kw

15/18.5/22/30kw

5

Conveyor motor

0.75kw

0.75kw

0.75kw

6

Speed of conveyor

0.8-4.0m/min

0.8-4.0m/min

0.8-4.0m/min

7

Lifter motor

0.75kw

0.75kw

0.75kw

8

Cutting width

20-400mm

20-600mm

20-800mm

9

Max. Cutting thickness

20mm

20mm

20mm

10

Size of machine

2.11*1.38*1.63m

2.11*1.58*1.63m

2.11*1.78*1.63m

11

Weight

About 1000kg

About 1200kg

About 1500kg

12

Water consumption

200L/min

300L/min

300L/min

13

Application

Mosaic

Mosaic, strips

Mosaic, strips

14

Materials

Stones

Tiles

Tiles
