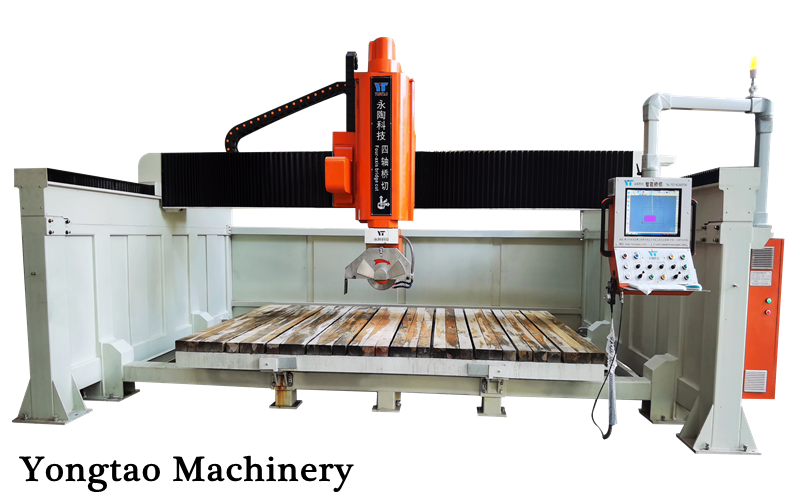

The YSQZ-3200-4L is a 4 axis stone bridge saw developed by Yongtao Machinery for accurate cutting of marble, granite, quartz and sintered stone slabs. It combines CNC control, a rotating cutting head, graphical cutting software and optional camera alignment to complete straight, angled, round, oval and special-shaped cutting tasks.
Designed for stone fabrication workshops and countertop production, this 4 axis CNC bridge saw allows operators to create or select cutting graphics through the control interface without complicated manual programming. Different saw blade specifications can be selected according to the material, slab thickness and required edge quality.
The YSQZ-3200-4L is a CNC bridge saw for stone with four controlled axes: X, Y, Z and C. The X, Y and Z axes control the movement and cutting depth, while the C axis rotates the cutting head to produce cuts in different directions.
Compared with a conventional stone bridge saw machine used mainly for straight cutting, this model offers greater flexibility for processing slabs with different sizes, layouts and finished shapes. Its graphical control system helps operators arrange cutting lines, adjust dimensions and manage production tasks more efficiently.
The machine is suitable for producing rectangular slabs, diagonal components, countertop panels, circular pieces, oval pieces, polygons and other customized stone products. It can be used as a marble bridge saw, granite bridge saw or quartz bridge saw when equipped with a suitable blade and correctly selected cutting parameters.
The YSQZ-3200-4L is designed for stone processors that require more flexibility than a traditional three-axis bridge saw but do not need the additional functions of a five-axis machining system.
It is particularly suitable for:
Marble and granite processing workshops
Quartz and sintered stone fabrication
Stone slab sizing and trimming
Countertop panel production
Round and oval stone cutting
Polygon and special-shaped component production
Small-batch customized stone projects
Factories requiring graphical CNC operation
For buyers comparing a bridge saw for stone, the main advantages of this model are its rotating cutting head, CNC graphic control, multiple cutting-shape capability and optional camera alignment.

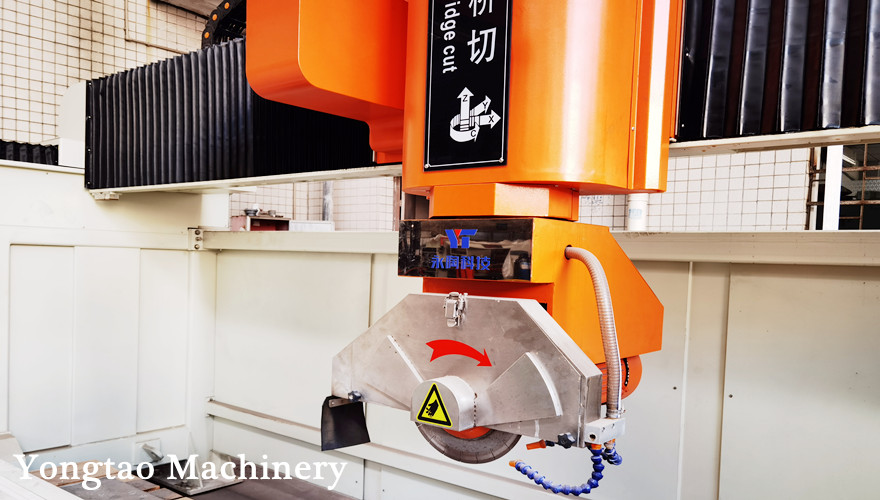

The machine can perform straight cuts in different directions without requiring operators to reposition the slab repeatedly. The rotating cutting head makes it easier to produce rectangular, diagonal and polygonal components while maintaining consistent dimensions.
This function makes the YSQZ-3200-4L suitable as a stone slab cutting machine for standard sizing, slab trimming and customized finished-part production.
The rotating head and CNC motion system allow the machine to follow programmed cutting paths for round and oval components. A stone bridge saw for round cutting can reduce the number of manual positioning steps required for circular stone products.
When used as a stone bridge saw for oval cutting, the machine generates the required path through the software and controls the coordinated movement of the cutting head. Actual cutting quality depends on the material, blade selection, cutting speed and required curvature.
The YSQZ-3200-4L can process diamonds, polygons and other customized profiles supported by its control software. Operators can set dimensions and generate cutting lines through the graphical interface, reducing dependence on complicated manual programming.
As a stone bridge saw for special shaped cutting, it is suitable for workshops producing customized panels, decorative stone components and countertop-related parts in different dimensions.

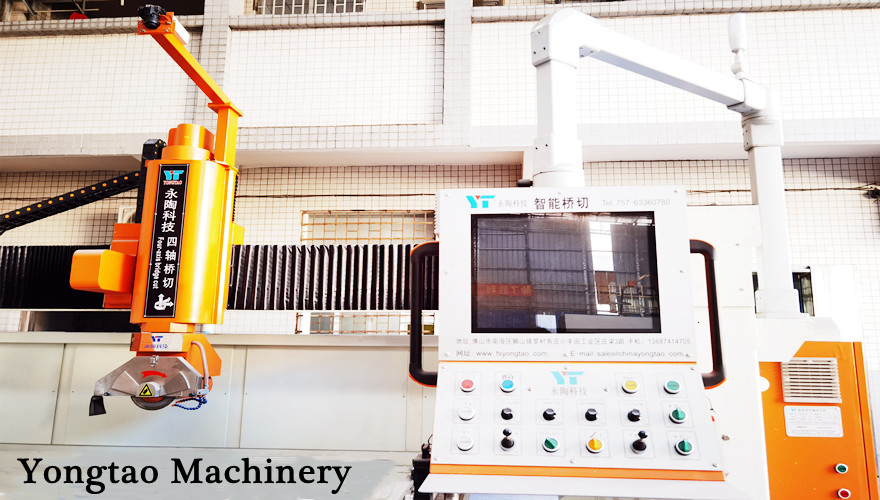

The CNC interface allows operators to create, select and arrange cutting graphics on the display. Cutting dimensions and layouts can be adjusted according to the slab and finished-product requirements.
This graphical workflow helps shorten machine setup time, improves repeatability and makes the CNC bridge saw machine easier to operate for both standard and customized production.
The YSQZ-3200-4L can be equipped as a CNC bridge saw with camera. After the slab is placed on the worktable, the overhead camera captures its position and provides visual information for layout and alignment.
The optional camera system helps the operator position cutting graphics according to the actual slab location. This can reduce manual measurement and alignment work, especially when the slab is not placed perfectly parallel to the machine frame.
A stone bridge saw with camera alignment is useful for:
Checking the position of the slab before cutting
Aligning cutting lines with slab edges
Arranging parts according to usable slab areas
Reducing positioning errors
Improving repeatability between production batches
The photograph function is optional. Buyers should confirm whether the camera, software functions and related accessories are included in the selected machine configuration.
When configured with an appropriate diamond blade and cutting parameters, the YSQZ-3200-4L can be used as a marble bridge saw for slab sizing, diagonal cutting, round components, oval components and customized profiles.
Cutting speed and feed settings should be adjusted according to the marble type, thickness and brittleness to help control edge chipping.
The machine can also operate as a granite bridge saw for cutting granite slabs into standard or customized dimensions. Granite generally requires a suitable blade, stable water cooling and cutting parameters matched to the hardness and thickness of the material.
Its rigid bridge structure and CNC-controlled movement support repeatable cutting for granite fabrication and countertop-related production.
The YSQZ-3200-4L can be configured as a bridge saw for quartz slabs. It is suitable for sizing, trimming and producing countertop-related panels when the correct blade and cutting settings are used.
For quartz processing, operators should select parameters according to slab thickness, composition and required edge quality. Trial cutting is recommended before batch production.
The YSQZ-3200-4L can be used as a CNC bridge saw for countertops when the required process mainly involves slab sizing, perimeter cutting, diagonal cutting and supported special-shaped cutting.
Typical applications include:
Granite countertop panel sizing
Marble countertop component cutting
Quartz slab trimming
Rectangular and diagonal countertop parts
Round and oval stone components
Customized polygons
Decorative stone panels
Special-dimension slab production
As a granite countertop bridge saw, the machine helps workshops produce repeatable slab dimensions and different external profiles. If a project requires internal sink openings, drilling, milling, edge profiling or polishing, buyers should confirm whether additional tools or separate processing equipment are required.
The normal production process consists of five steps.
Place the stone slab securely on the worktable.
Enter the required dimensions or select the cutting graphic through the CNC interface.
Use manual positioning or the optional overhead camera to align the cutting layout with the slab.
Select the appropriate blade, cutting speed and depth according to the material and thickness.
Start the cutting cycle and inspect the finished dimensions, edge quality and shape before batch production.
For customized jobs, customers can provide the slab size, thickness, required finished dimensions and cutting drawing. Yongtao can evaluate the application and recommend a suitable machine and cutting configuration.
| No. | Name | Parameter |
|---|---|---|
| 1 | X-axis working travel | 0–3000 mm |
| 2 | Y-axis working travel | 0–2000 mm |
| 3 | Z-axis working travel | 0–300 mm |
| 4 | C-axis rotation | ±185° |
| 5 | Cutting motor power | 15–18 kW |
| 6 | Spindle speed | 0–3000 rpm |
| 7 | Saw blade diameter | Ø300–450 mm |
| 8 | Control system | Taiwan control system |
| 9 | Servo drive | Yaskawa |
| 10 | Rack and guide components | Taiwan |
| 11 | Vacuum sucker function | Optional |
| 12 | Automatic tool adjustment | Optional |
| 13 | Camera photograph function | Optional |
| 14 | Machine dimensions | 5900 × 3350 × 3380 mm |
| 15 | Total power | 26 kW |
| 16 | Machine weight | Approximately 6000 kg |
The final configuration may vary according to the material, processing requirements and optional functions. Buyers should confirm the technical proposal before ordering.
Before delivery, the YSQZ-3200-4L can be tested according to the confirmed machine configuration and customer processing requirements. The inspection covers axis movement, cutting-head rotation, CNC operation, blade running, safety functions and selected optional equipment.
When material samples or cutting drawings are available, Yongtao can evaluate the required cutting task and arrange a corresponding test where practical. Customers should confirm the test material, finished dimensions and acceptance requirements before production and shipment.
Before purchasing a 4 axis CNC bridge saw for sale, buyers should evaluate the machine according to their actual production requirements rather than comparing only motor power or price.
The following information should be confirmed:
Material type
Maximum slab length and width
Maximum material thickness
Required finished dimensions
Straight, angled, round, oval or special-shaped cutting
Daily production volume
Required blade diameter
Camera alignment requirement
Vacuum sucker requirement
Available workshop space
Local voltage and frequency
Installation and operator-training requirements
Providing this information allows Yongtao to recommend a more suitable blade, motor configuration, software function and optional equipment.
Yongtao Machinery manufactures stone processing equipment for marble, granite, quartz and sintered stone applications. The YSQZ-3200-4L is assembled and configured according to the customer’s slab specifications, processing tasks and workshop conditions.
Customers can provide sample drawings, slab dimensions or required finished shapes before ordering. Yongtao can review the application, confirm whether the four-axis structure is suitable and prepare a corresponding technical configuration.
Support can include:
Machine configuration consultation
Cutting application evaluation
Blade selection guidance
Customized voltage configuration
Machine installation and commissioning
Operator training
Operation and maintenance guidance
Spare-parts support
Remote technical assistance
For buyers looking for a China CNC bridge saw manufacturer or stone bridge saw machine manufacturer, the configuration list should clearly identify the standard equipment, optional camera, vacuum sucker, automatic tool adjustment and other requested functions.
The YSQZ-3200-4L 4 axis stone bridge saw for sale is intended for professional stone workshops that need CNC-controlled slab cutting and flexible shape production.
Before requesting a quotation, customers are encouraged to provide:
Material names and sample photographs
Maximum slab dimensions
Slab thickness range
Required finished shapes
Expected daily output
Local electrical standard
Required optional functions
Destination country or installation location
A detailed quotation for a 4 axis CNC bridge saw for sale should specify the machine configuration, blade range, control system, optional functions, installation requirements and after-sales support.
The machine is designed to cut marble, granite, quartz. Blade selection, cutting speed, water cooling and processing parameters should be matched to the material and thickness.
A traditional bridge saw is generally used mainly for straight slab cutting. The YSQZ-3200-4L adds CNC graphic control and C-axis cutting-head rotation, allowing it to complete straight, angled, round, oval, polygonal and other supported special-shaped cuts.
The camera photograph function is optional. When selected, the overhead camera captures the slab position and assists with cutting-layout alignment. Customers should confirm that the camera hardware and corresponding software functions are included in the quotation.
Yes. It can be used for countertop slab sizing, trimming, diagonal cuts and supported external profiles. Processes such as internal sink openings, drilling, milling, profiling and polishing may require additional tools or separate equipment, depending on the finished design.
Yes. The rotating cutting head and CNC control system allow the machine to follow supported round and oval cutting paths. The achievable result depends on the radius, blade diameter, material and required edge quality.
No. The vacuum sucker function is listed as optional. Customers requiring automatic slab or part handling should confirm the sucker capacity, suitable material surface and included accessories before ordering.
Send Yongtao the material type, slab size, thickness, finished-product dimensions, required cutting shapes, daily production target, electrical standard and optional-function requirements. This information helps prepare an accurate technical configuration and quotation.
A four-axis machine is suitable when production focuses on straight, angled, round, oval and supported special-shaped slab cutting. A five-axis model may be more appropriate when the application requires additional head movement, more complex angled processing or broader machining capability. The final choice should be based on actual products rather than axis count alone.
