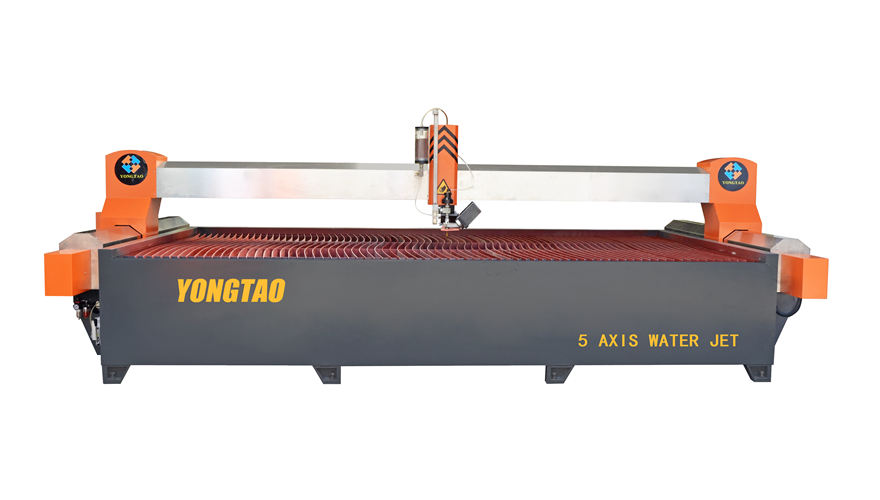

YJ-4020-5L 5 Axis CNC Water Jet Cutting Machine

YJ-4020-5L CNC Water Jet Cutting Machine

Product model name :YJ-4020-5L CNC Water Jet Cutting Machine

Processing materials: marble, granite, glass, metal, quartz stone, rock slab, steel plate, stainless steel, ceramic board, ceramic tile  porcelain large format tiles, and other architectural decoration materials
Brand name :Yongtao
Origin: Foshan, Guangdong, China

Characteristic of YJ-4020-5L CNC Water Jet Cutting Machine

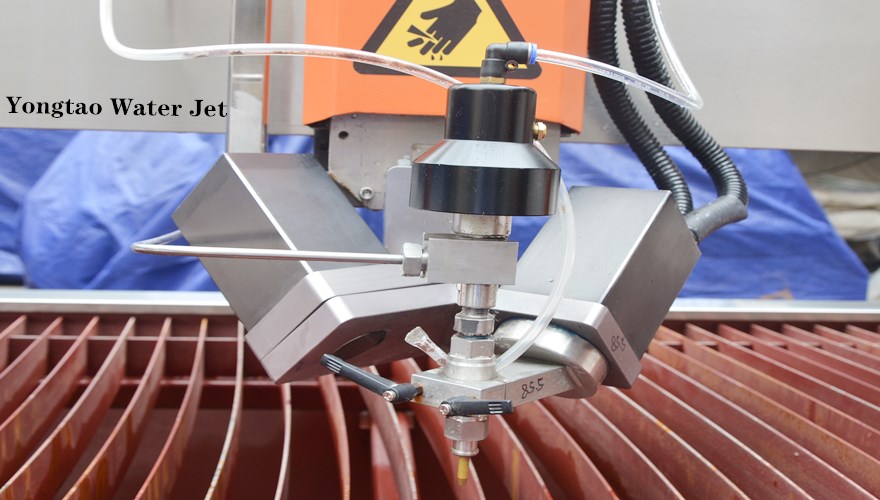

Yongtao 4020 cnc water jet cutting machine working principle is based on the 3 axis water jet cutting platform to increase the two axis of rotation, namely A axis and B axis. It can make the cutting head can swing in any direction, cutting angle of 0 to 10 degrees, can cut any 2D curve. It controlled by computer for cutting shape, processing speed, cutting size, etc. Using the CAD software in advance to set the graphics, as well as the inside of the computer software real-time computation of cutting paths, and then according to the amended by cutting the work piece material, thickness, in the process of cutting an oscillating 5 axis cutting head. The whole intelligent systems and control, completely human-computer interaction technology, three-dimensional continuous consumption ability, 5 axis dynamic cutting.In the process of using,it can achieve perfect effect for cutting out the artifact product, compared with the 3 axis water jet cutting machine, cutting efficiency is higher, faster and more smooth cutting edge, cutting small slits. After cutting it does not need to be polished, can meet the processing requirements. Yongtao AB axis water jet cutting machine achieve the X, Y, Z, A and B 5 axis linkage, can be cut to a variety of materials processing. The main parts of machine adopt imported precision CNC machine tool processing, can effectively guarantee the accuracy of mechanical, can make it to meet various processing requirements of users. Yongtao water jet cutting machine has been widely used in various industries. Yongtao cnc water jet cutting machine is selected to achieve higher machining accuracy, better stability and better customer satisfaction.

cnc water jet cutter:

The complete set of water jet cutting configuration includes the following components:
1. water jet cutting table
2. CNC water jet control system

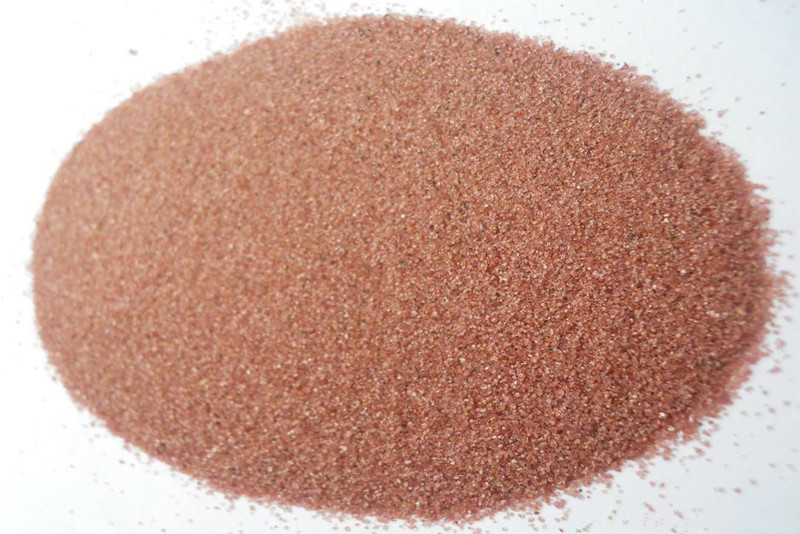

3. Abrasive supply system
4. Water jet ultra-high pressure supercharger
5. Circulating cooling tower

Package size of water jet cutting machine：YJ-4020-5L CNC Water Jet

Package size of 5 axis water jet cutting table: 5.1m*3.2m*1.65m
Package size of water jet ultra-high pressure supercharger: 1.3m*0.95m*1.25m
Package size of water jet abrasive supply system: 0.6m*0.6m*0.95m
Package size of CNC water jet control system: 0.65m*0.65m*1.67m

Water jet cutting machine parameters：YJ-4020-5L cnc water jet machine

Maximum cutting thickness of metal: 40mm
Maximum cutting thickness of ceramic tile, stone, glass, marble, granite, stainless steel, quartz stone: 50mm
Maximum cutting size: 4000mm*2000mm
Machining accuracy :±0.1mm
Gem nozzle diameter: 0.33mm

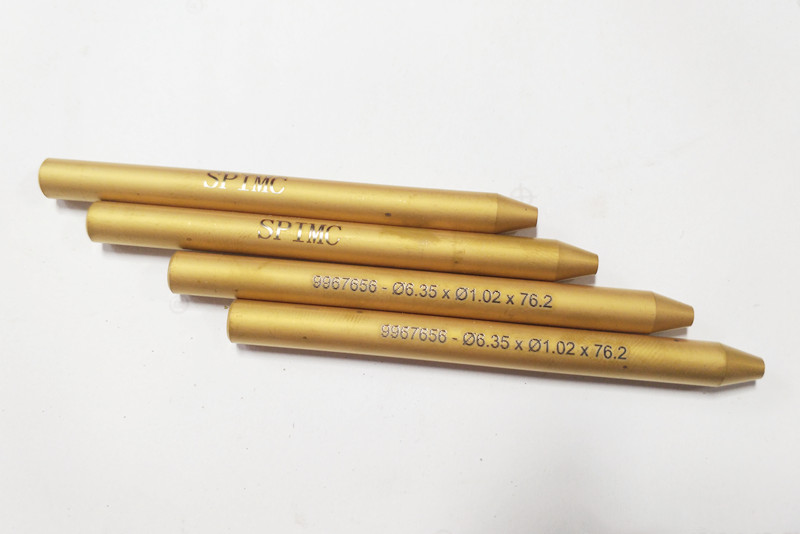

Nozzle size of sand pipe: 1.0mm
Maximum displacement: 11.1L /min
Maximum sand usage: 190g/min
Maximum stroke: 60 strokes /min
Hydraulic oil: no.46 or no.68 (Great Wall hydraulic oil)
Power supply :220V/380V/415V, 50/60hz
Computer drawing software: Auto CAD drawing software
Operating system: Windows XP
Z-axis travel: 130mm
Maximum pressure: 420Mpa
Working pressure: 300-380mpa
Main motor power: 30kw
Total power: 37kw

Parameter of YJ-4020-5L water jet cnc machine
