YJ-4020-5L AC 5 axis CNC Water Jet Cutting Machine

YJ-4020-5L AC 5 axis CNC Water Jet Cutting Machine

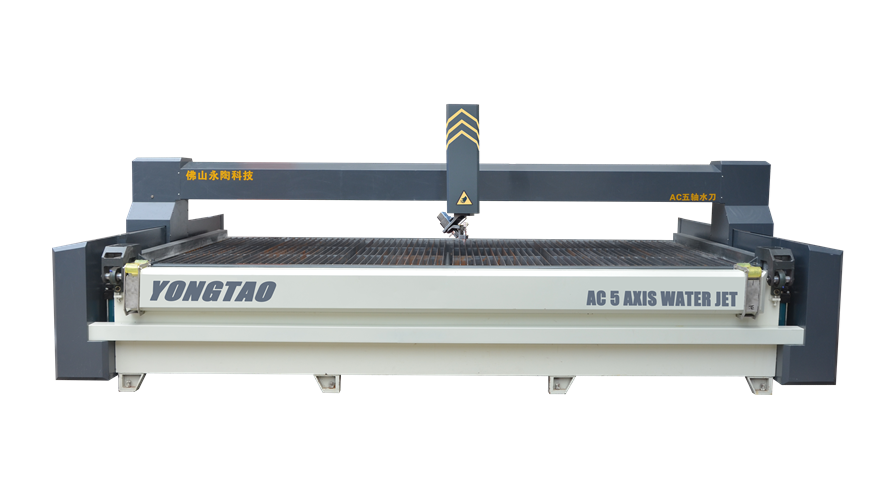

Model No: YJ-4020-5L
Product Name: AC 5 axis CNC Water Jet Cutting Machine
Origin: Foshan, Guangdong, China
Brand name: YONGTAO
Processing material: Ceramic tile, stone, sintered stone, quartz, marble, granite, metal, glass, aluminum plate, stainless steel and other materials.
Structure: Bridge type
Mode of transport: Sea, railway (container transport)
Mechanical construction: cantilever construction.

Brief introduction of 45 Degree CNC water jet cutter:

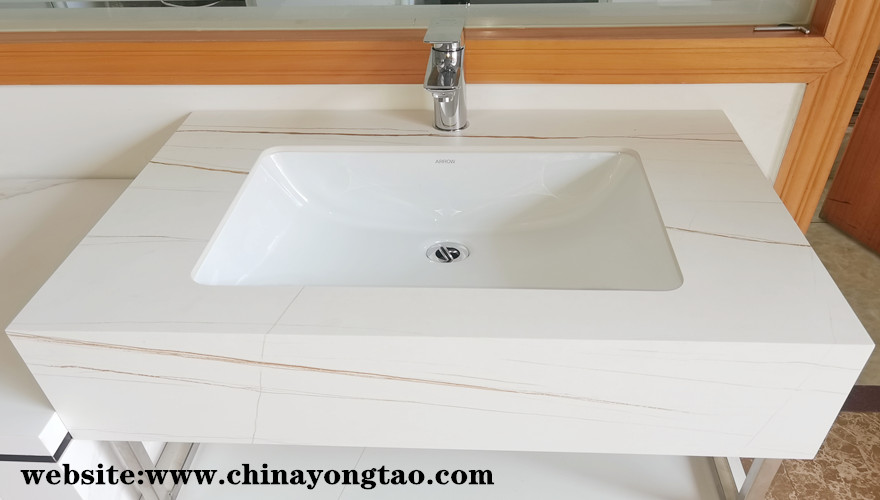

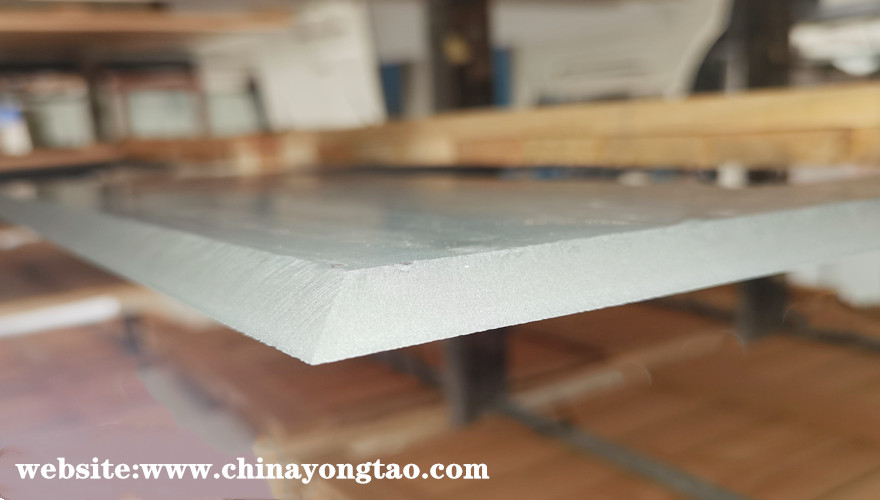

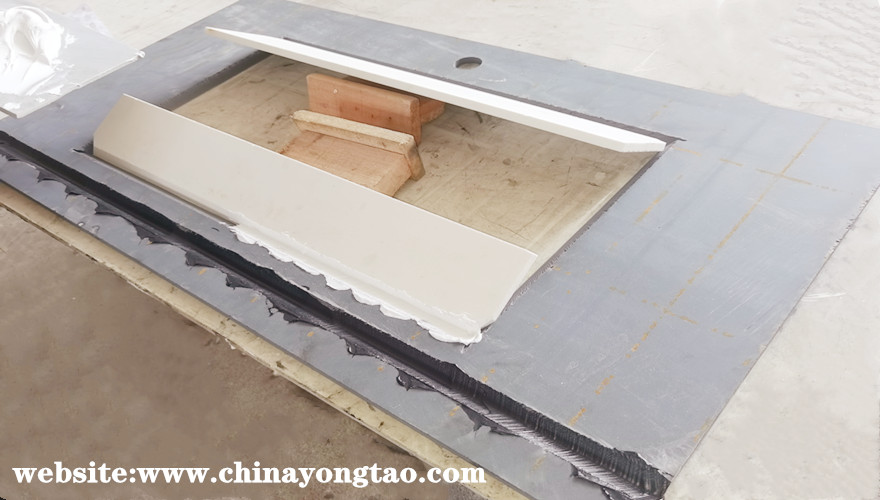

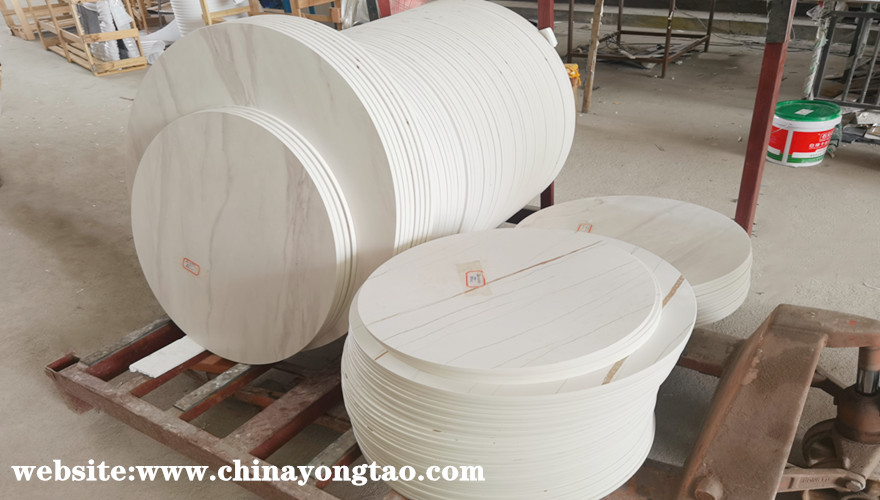

YONGTAO AC 5 axis water jet cutting machine is the earliest research and production of China Yongtao machinery, specially designed for the processing of sintered stone.The swing Angle of cutting tool head is 45-50 degrees, which is very different from AB 5 axis water jet cutter. This 45 degree sintered stone water jet cutting machine cuts 45 degrees for splicing, which can be used for various products of sintered stone. For example: sinter stone lavabo, sinter stone tea table, sinter stone TV cabinet, sinter stone cupboard mesa, sinter stone bar and other products made by sinter stone. At the same time, it can cut the sintered stone table in a straight line. With the use of Yongtao sintered stone horse-belly edge shaped chamfering machine, it can process more than 120 pieces of sintered stone table in 8 hours, which is deeply loved by customers at home and abroad. Yong tao AC 5 axis 45 degrees cnc water jet cutter, with high cutting precision, processing speed and other characteristics, can be of any shape of the curve of cutting, only need to know the CAD drawing to operation, full English control, also can switch to other languages, the 5 axis water jet cutter is characterized by simple operation, good stability, convenient maintenance, accessories international general, is the first choice for processing all kinds of large size sheet you models.

Features of 45 degree 5 axis waterjet cutting machine:
1, water jet cutting with universal cutting function, can be cut for any plane curve.
2. The X and Y axes are lubricated by immersion oil. The protective water cover is waterproof and anti-fouling.

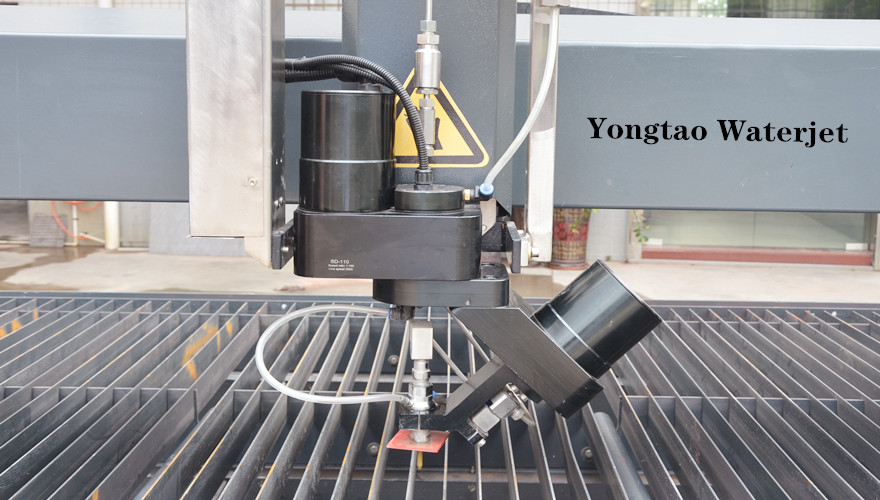

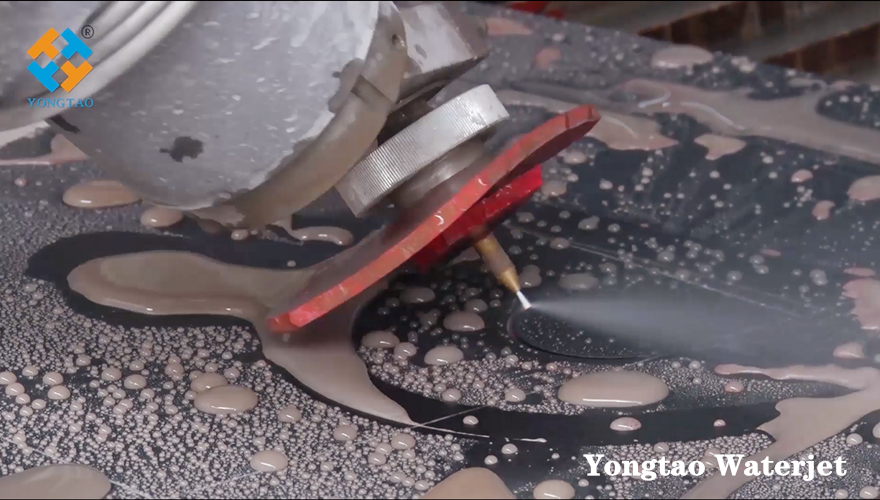

3. Cutting tool head is equipped with unique pneumatic high-pressure water switch, which can effectively improve efficiency.
4. The swing Angle of AC five-axis water jet cutting is 0-55 degrees, and the swing Angle in normal processing is about 45 degrees.
5, unique sand valve structure design, transparent visible sand tube, you can clearly see the pomegranate sand more and less, so that the sand valve more smooth.

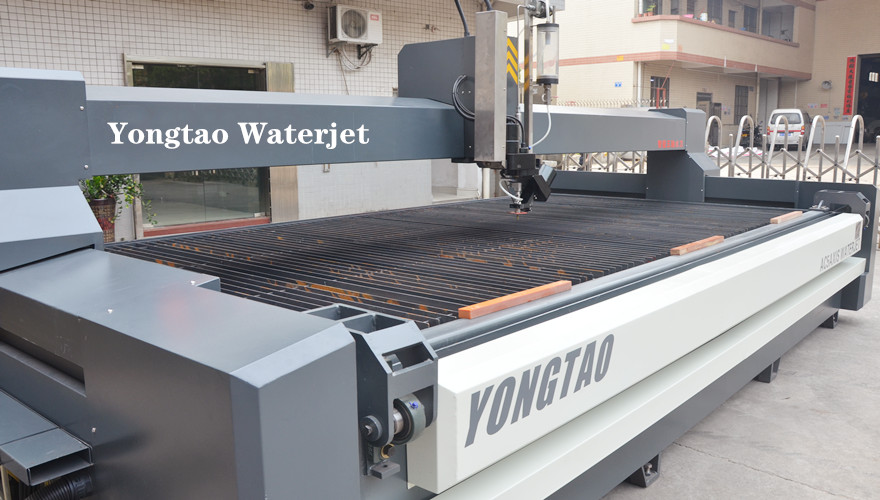

6. The working platform adopts bridge structure, the beam is made of cast iron, the two ends of the machine are supported, and the NUMERICAL control system is controlled by stepping motor and AC servo system, which can effectively guarantee the machining accuracy.
7, 45 degrees CNC water jet cutting has many advantages such as clean environmental protection, no gas, cold cutting, no heat effect, fast cutting speed and so on.
8. Due to the CAD drawing software and Windows operating system used for five-axis water jet cutting, all countries in the world can skillfully operate and use it with simple operation.
9. AC five-axis structure design is adopted to realize five-axis linkage of X, Y, Z, A and C.

Sizes of full set of 45 degree 5 axis water jet :

No.	Packing size of water jet cutting machine
1	YJ-4020-5L AC water jet cutting table：5.3m*2.95m*1.65m
2	Supercharger system：1.3m*0.95m*1.25m
3	Abrasive system：0.6m*0.6m*0.95m
4	CNC control system：0.65m*0.65m*1.67m
5	Water cooling system: 1.0m*1.0m*1.6m

All component of 45 degree water jet cnc machine:

No.	Full set of 45 degree cnc 5 axis water jet cutting machine
1	Water jet cutting table 1set
2	CNC control system 1set
3	Abrasive system 1set
4	Supercharger system 1set
5	Water cooling system 1set

Main parameter of 45 degree CNC water jet cutting machine:

Max cutting thickness for metal：40mm	Glass, stone, tile, marble, granite thickness：50mm
Max cutting size：4000mm*2000mm	Cutting precision:±0.1mm
Dia. of gem：0.33mm	Dia. of water jet nozzle：1.0mm
Flew rate：3.7L/min	Max consumption of sand：190g/min
Oil：#46/#68(Great Wall hydraulic oil)	Voltage:220V/380V/415V、50/60HZ
Drawing tools: Auto CAD	Operation system：Windows XP
Z-axis strip：130mm	Max. Water pressure：420Mpa
Working pressure：300-380Mpa	Main motor power：30kw
Total power：37kw	Cutting head：AC 5 axis water jet
