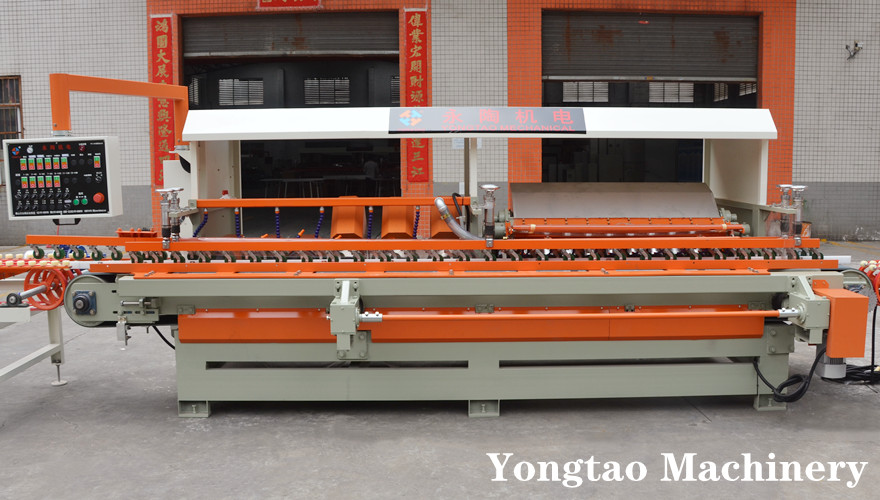

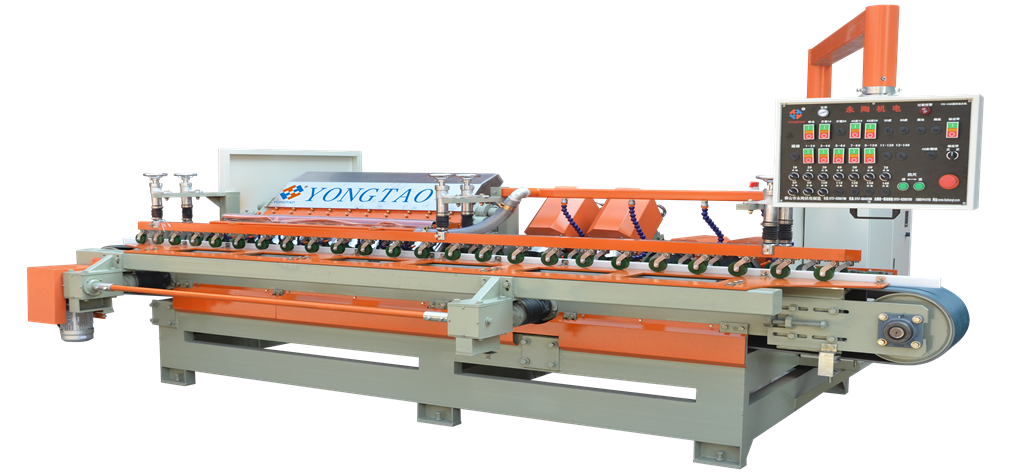

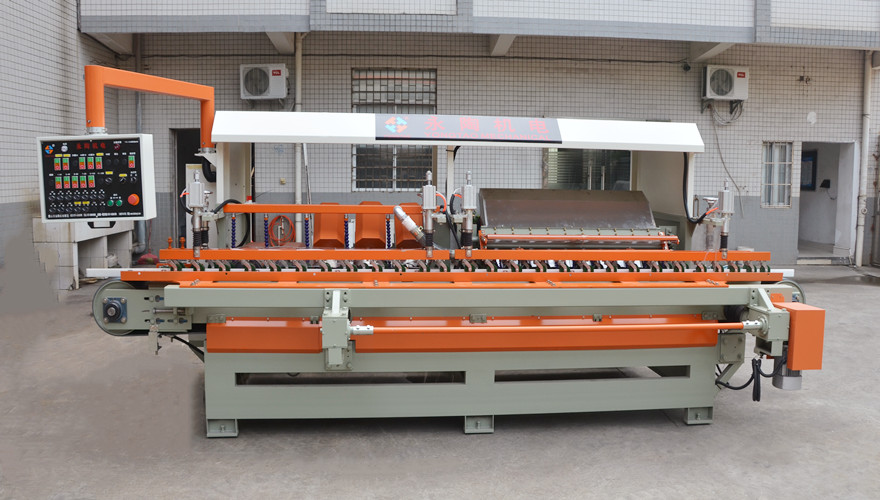

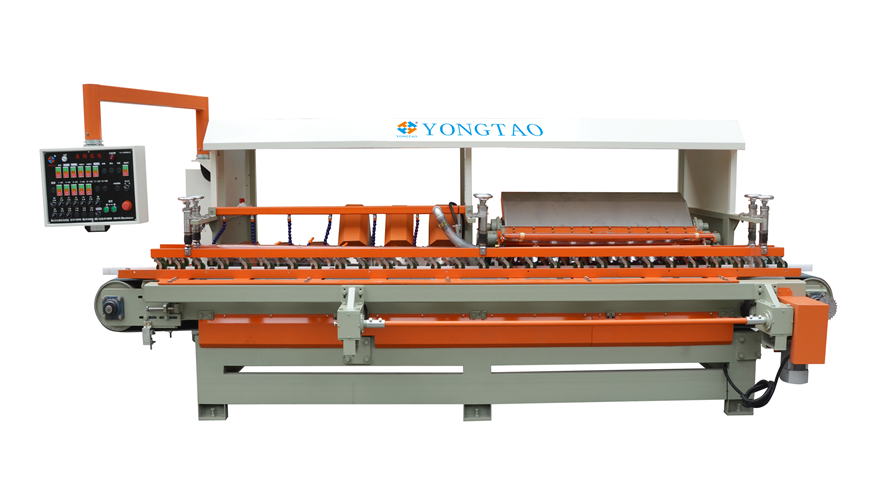

Description of YTMDP-1200/3+3+10 45 Degree Edge Porcelain Tile Polishing Machine

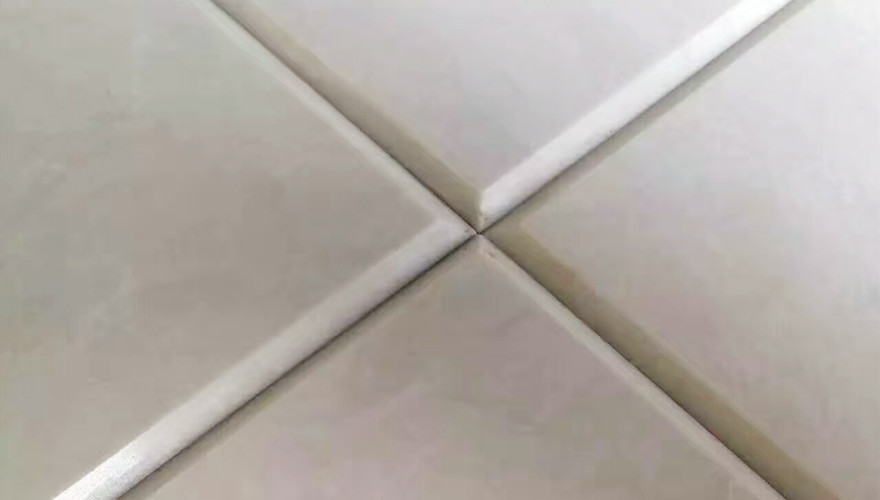

YTMDP-1200/3+3+10 45 Degree Edge Porcelain Tile Polishing Machine is specialized to deal 45 degree chamfer and polishing,it has three heads for squaring, three heads for chamfering,and 10 heads for chamfer polishing.The machine suit for large quantity output of ceramic tile edge grinding and 45 chamfer. It has many types, such as porcelain tile polishing machine, ceramic wheel polishing machine, alloy wheel ceramic polishing machine and so on. We can provide best cheap tile cutter for you.

Parameter of YTMDP-1200/3+3+10 45 Degree Edge Porcelain Tile Polishing Machine

No.

Name

Parameter

1

Conveyor belt

300mm

2

Nos. of squaring head

3pc

3

Diameter of squaring wheel

Φ200mm

4

Nos. of chamfering head

3pc (45 degree)

5

Power of chamfering motor

2.2kw

6

Diameter of chamfering wheel

Φ200mm

7

Nos. of polishing head

10c

8

Diameter of polishing wheel

95mm

9

Power of polishing motor

1.5kw

10

Workable width

80-1200mm

11

Power of conveyor belt

2.2kw

12

Polishing speed

4-8m/min

13

Thickness of tile

6-20mm

14

Power of baffle motor

0.75kw

15

Total power

26.05kw

16

Air consumption

40L/min

17

Water consumption

300L/min

18

Dimension of machine

4.8m*2.0m*1.8m

19

Weight

About4000 kg
