Ceramic Tile Mosaic Cutting Machine
To cut ceramic tile mosaic, YONGTAO brand ceramic tile mosaic cutting machine is a good choice. Here let me introduce how to use ceramic tile mosaic cutting machine:

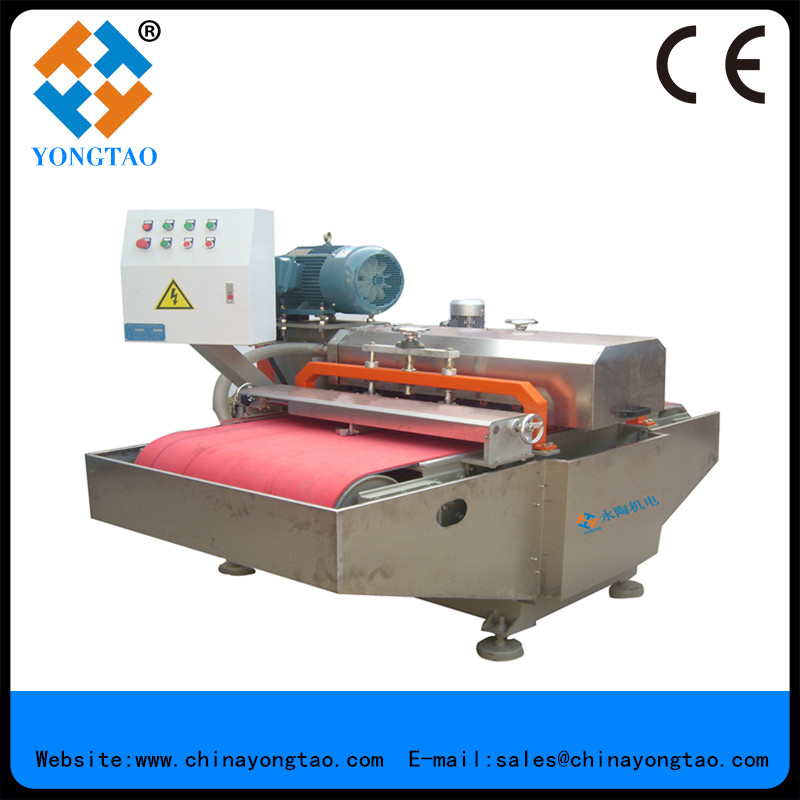

Single shaft blades continuous cutting machine usage:
1. If cut ceramic tile, use the blades with gap. If groove ceramic tile, please use the blades without gap (whole round blade)
2. The machine can install 5 pcs of blades on the shaft, can produce 6 pcs of strip shaped brick in one time.
3. If make groove for ceramic tile mosaic, the machine can make than a dozen of slot, but the ceramic tile should fixed on the mosaic cutting mould base
4. The resistance is very large when the machine cutting ceramic tile, so it cann’t install blades too much, since the cut off finished in one time. Generally install five blades enough.
5. Due to the cut off finished in one time, the tile edge will have a little chipping, but the rate of chipping very few.
6. Compared with the two blades series cnc cutting machine, this machine power is 16kw, the speed is little slower than the two blades series cnc cutting machine, also the cost of blades and electric consumption are higher than that machine. But two blades series cnc cutting machine can only cut two piece, while single shaft blades cutting machine are able to cut 5-6 pcs of brick. So if you want to cut multi strip brick, the single shaft blades cutting machine is a good choice.

mosaic cutting machine

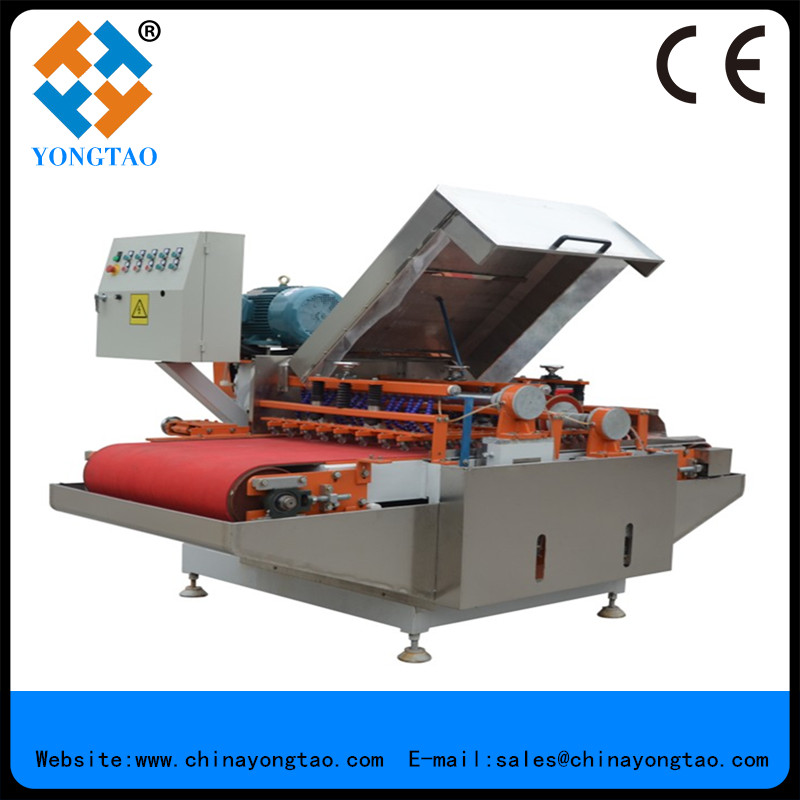

Double shaft blades continuous cutting machine usage:
1. If cut ceramic tile, use the blades with gap. If groove ceramic tile, please use the blades without gap (whole round blade)
2. The machine can install 10-20 pcs of blades, can produce 11-21 pcs of strip shaped brick.
3. Adjustment: install the first shaft blades at first, and then install the second shaft blades. The number of both shaft blades are the same, and each blade between first shaft and second shaft installed in a line. So that the edge of brick will be smooth without step.
If the blades did not align at a line, the cutting brick will have several problem as below:
(1) the brick will come out step
(2) The size of brick are not the same
(3) Easily get stuck during cutting
(4) Brick damaged
(5) The machine over loading
4. The machine suit for large quantity cutting brick, the more quantity, the high cost-effective is. If small quantity, the machine can not be fully used, electric consumption large, so the cost-effective very low. Also the cost of blades is high. If the quantity is large, the machine have high cost-effective.
5. This machine have a function of pre-cutting, the second shaft blades will cut off the brick, so this machine cut brick with fast speed and good effect.

Ceramic Tile Cutting Machine

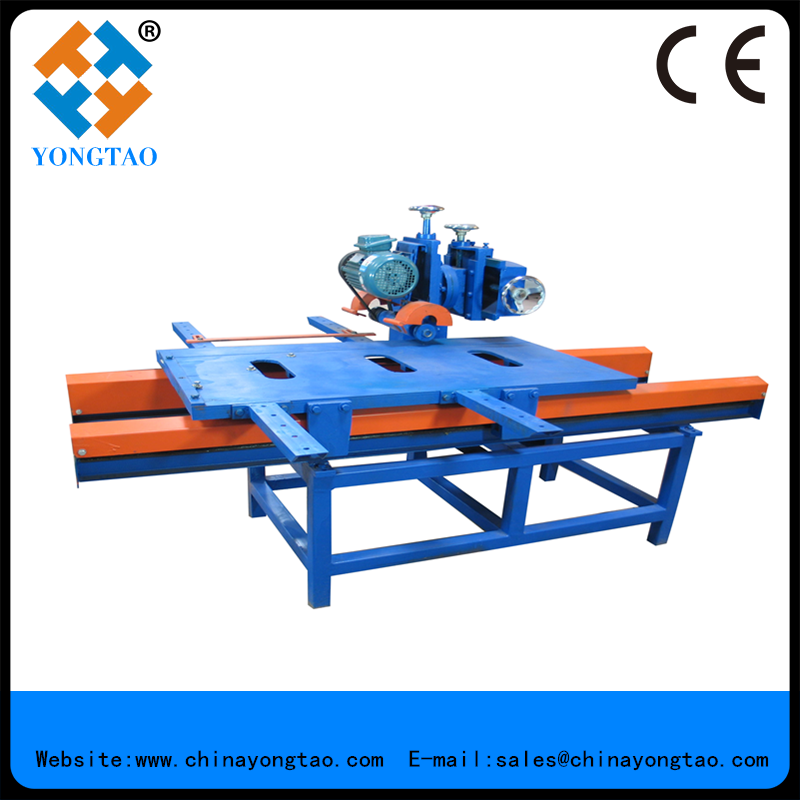

Other ceramic tile cutting machines:Multifunction ceramic tile cutting machine

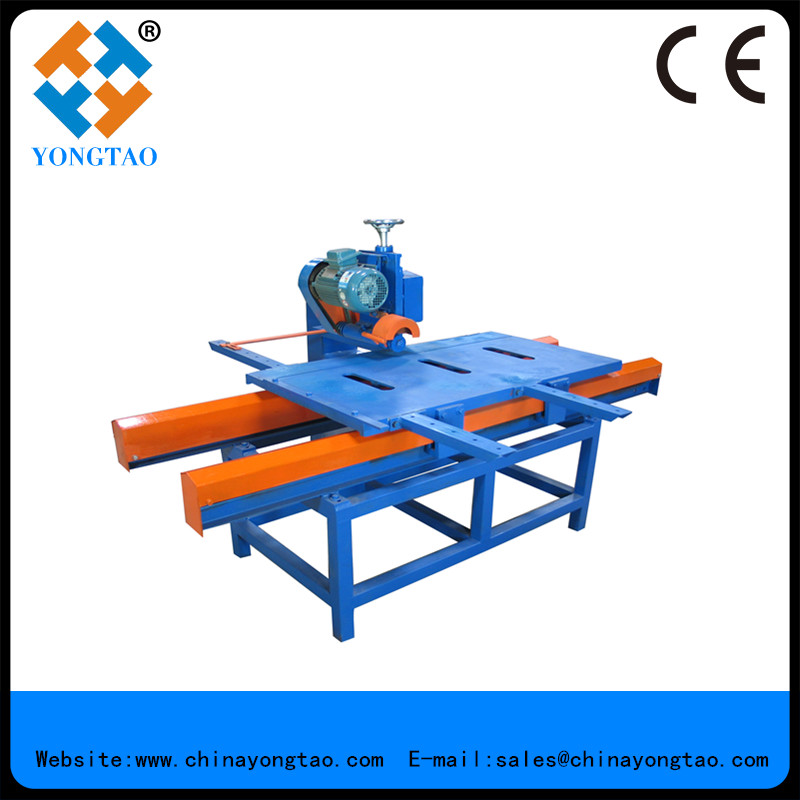

Manual Multifunctional Ceramic Cutting Machine
