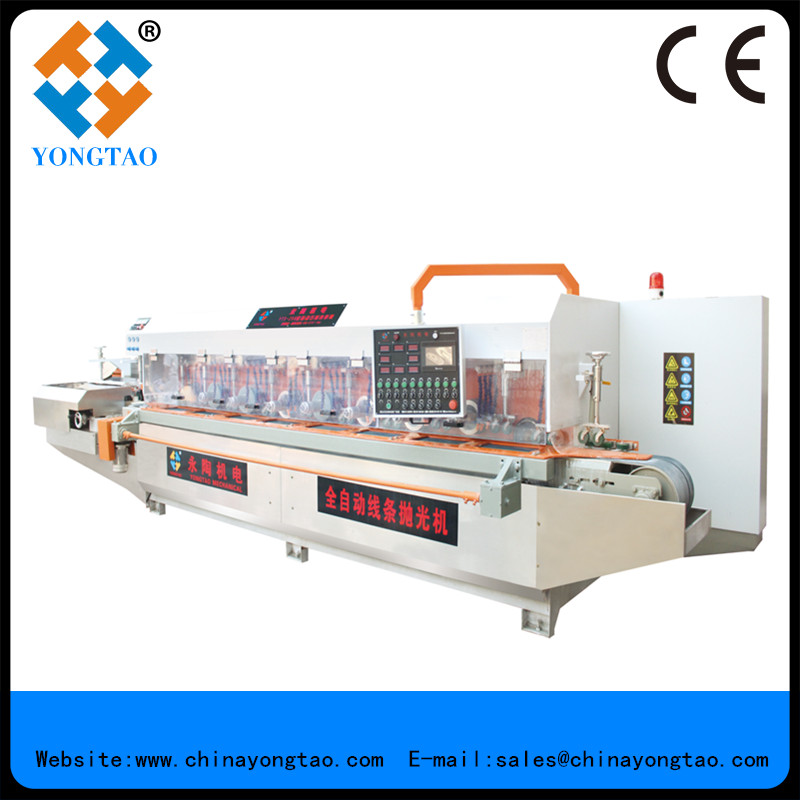

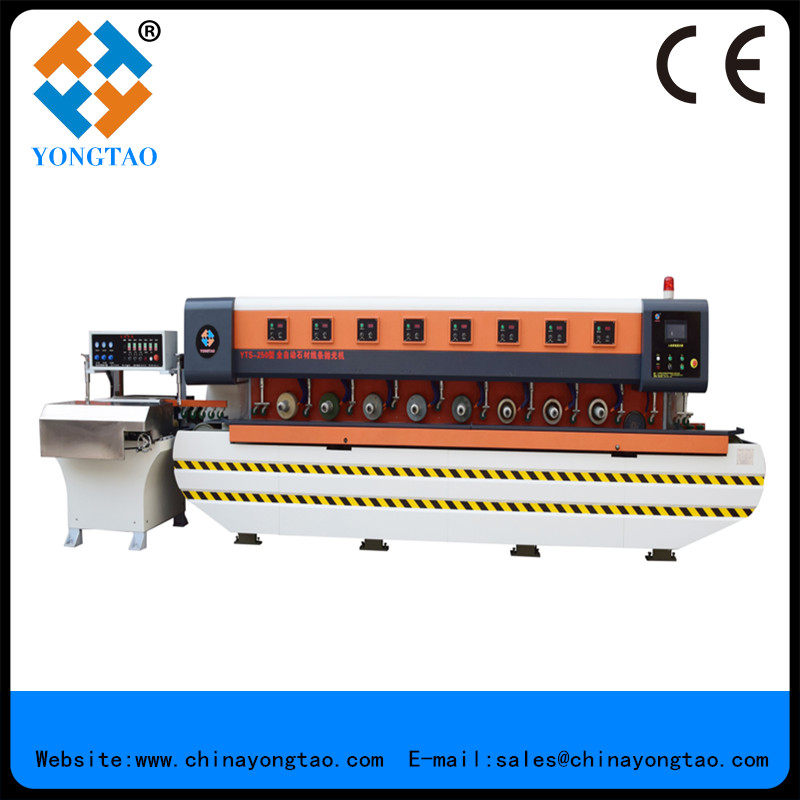

YSXP-250 8 Heads Full Automatic Stone Moulding Machine

YSXP-250 8 Heads Full Automatic Stone Moulding Machine
(3+5) 8 Heads Full Automatic Stone Moulding Machine have three forming wheels and five polishing wheels, at both ends of machine connect with the stone line excessive frame, also the machine can connect the stone Moulding polishing machine at end to polish both sides. The forming parts controlled by manual adjust. The polishing parts adjusted by automatic control, and the wheels wear will be automatic compensated by electric control during processing. The machine is applied to process stone door frame, window frame, TV background frame etc all kinds of stone line shape. The shape of wheels are able to customized.Processing characteristic: fast speed, high brightness, high product efficiency, low labor cost, automatically, suit for large quantity processing factory.Grinding wheel material: plating wheels are used to make forming, resin polishing wheels are used to make rough polishing, the sponge polishing wheels are used to improve the brightness of surfaceProcessing materials: ceramic, stone, marble, granite, artificial stone, stone lineProcessing brightness: 90-120 degree, smooth no need waxing, can be reached mirror brightProcessing speed: 200-250m per 8 hours, different thickness and deep of the materials, the speed is different.Specification of stone line: 60mm, 80mm, 100mm, 120mm, 150mm

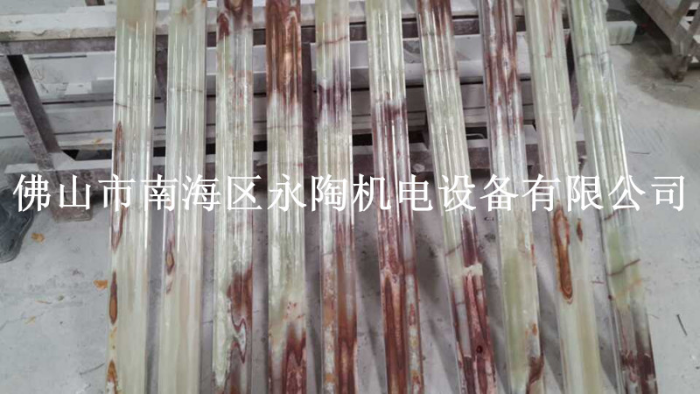

Natural jade stone processed by 8 heads full automatic stone Profiling Machine：

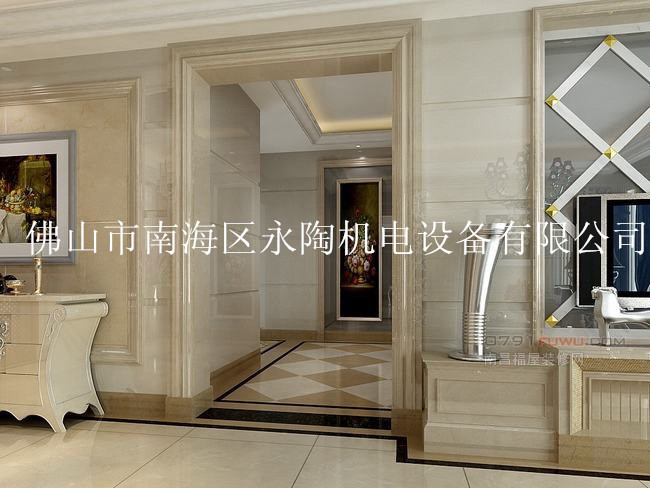

Decoration effect

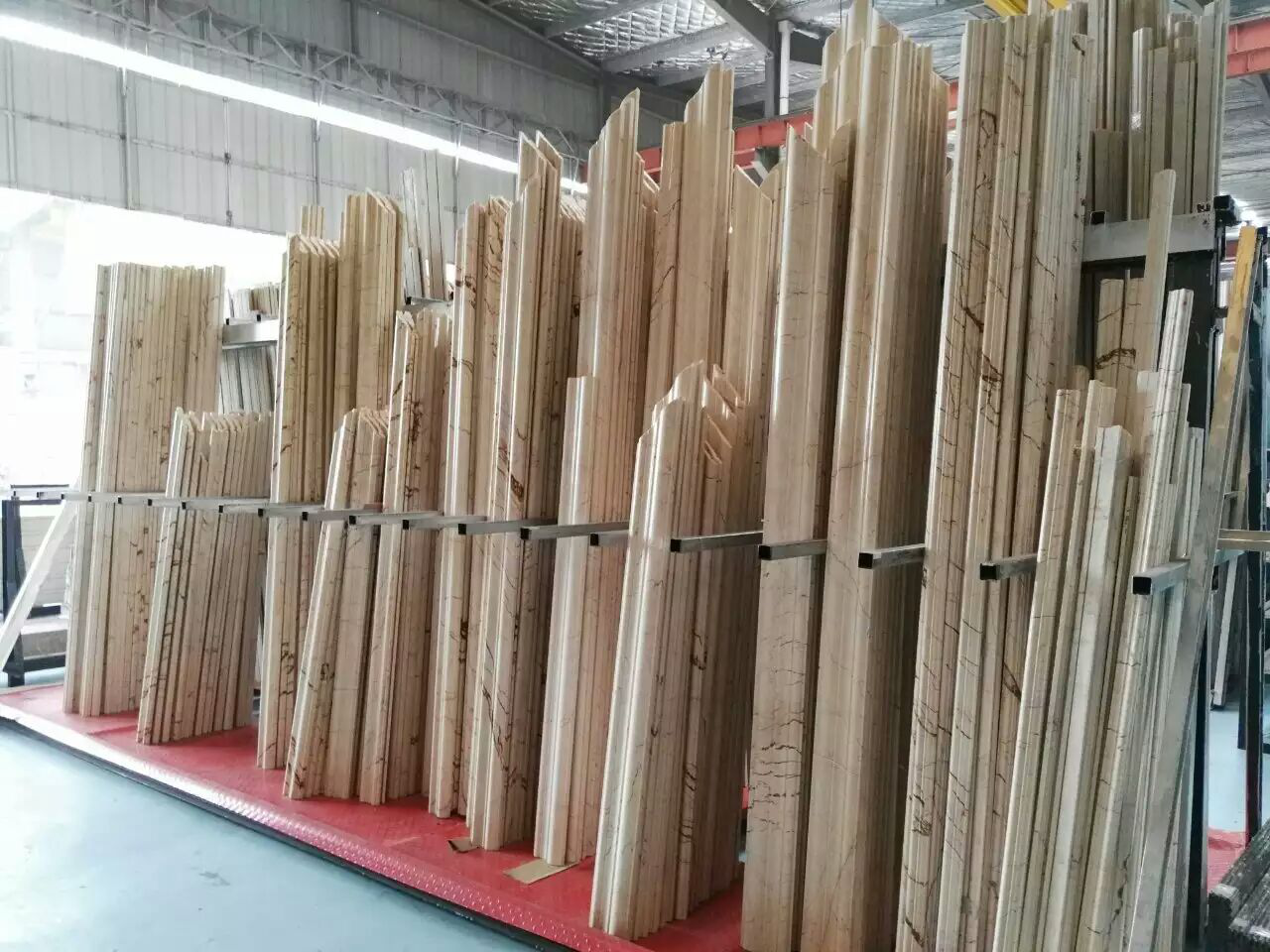

Natrual marble processed by YONGTAO brand automatic stone profiling Polishing machine


Technical parameters:

NO.	Name	Unit	Parameters
1	Numbers of forming wheels	个	3
2	Motor power of forming wheel	Kw	7.5
3	Diameter of forming wheel	mm	180-200
4	Numbers of polishing wheel	个	5
5	Motor power of polishing wheel	Kw	5.5
6	Diameter of polishing wheel	mm	150-220
7	Max workable size	mm	250
8	Processing width	mm	30-400
9	Processing thickness	mm	10-70
10	Processing speed	m/min	0.3—3.0
11	Total power	Kw	58.63
12	Power consumption	Kw	50
13	Water consumption	L/min	500
14	Size of machine	L*W*H(m)	10.30×2.00×1.80
15	weight	kgs	5000

Foshan Nanhai Yongtao Machinery and Electric Equipment Co., Ltd speciallized in producing stone line polishing machine, marble line polishing machine, artificial stone line polishing machine, stone line edge grinding machine, stone line edge polishing machine, stone line straight edge polishing machine, stone line 45 degree polishing and bottom chamfering machine, stone line straight edge 45 degree polishing machine, stone line side edge processing machine, stone line cross cutting machine, stone surface polishing machine, stone grooving and polishing machine, stone dry hang grooving machine, stone edge grinding machine, marble edge grinding machine, granite edge grinding machine, stone processing machinery, stone arc line polishing machine, stone line processing machinery, stone cutting machin etc all kinds of stone processing machinery.

Mobile：0086-18665475362   Web site：www.chinayongtao.com Email：sales@chinayongtao.com
