Multi Purpose Ceramic Cutting Machine

  Mar 05-2019

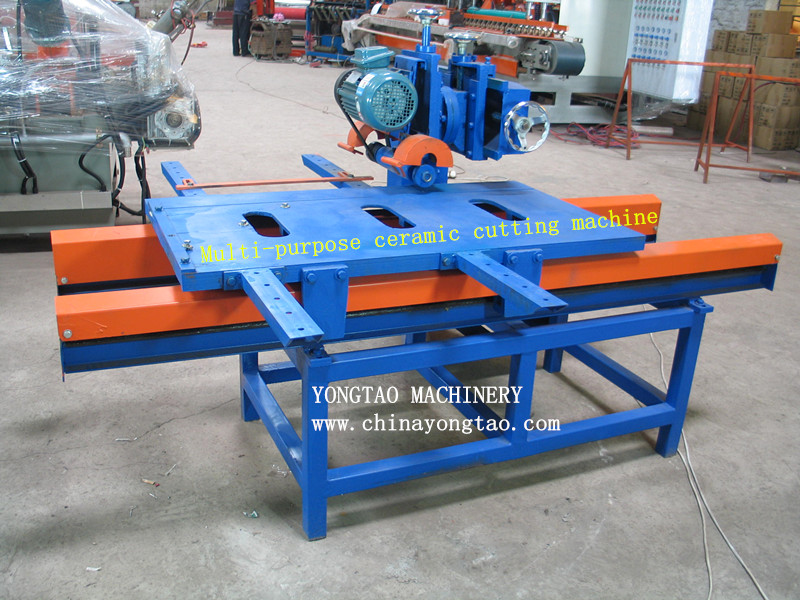

Multi Purpose Ceramic Cutting Machine
Multi-functional ceramic tile cutting machine accessories
The manual CNC ceramic cutting machine has the following models:
1. YT800 type manual CNC ceramic cutting machine
2. YT1200 type manual CNC ceramic cutting machine.

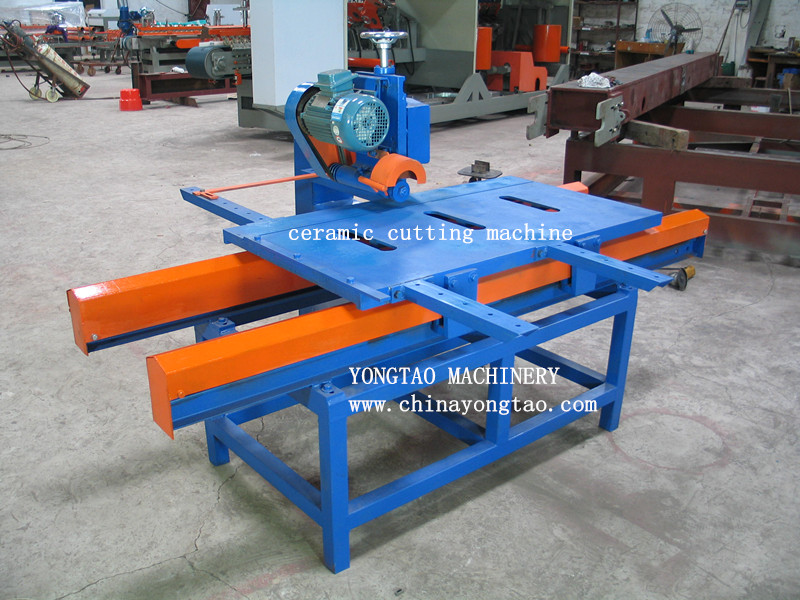

ceramic cutting machine

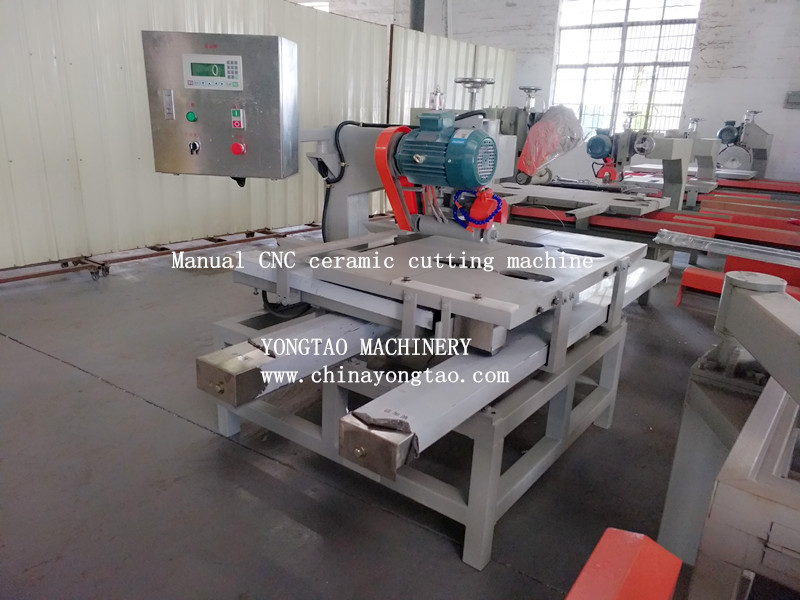

Manual CNC ceramic cutting machine
Type 800: the maximum machining 800mm ceramic tile,
Type 1200: maximum machining of 1.2m tiles

tile cutting machine
Installation of blade size for manual ceramic cutting machine:(diameter 120-130mm)* (inner hole 20mm)*2.0

CNC ceramic cutting machine

Size of 800 machine: 1500mm*1300mm*1400mm;Size: 2200mm*1400mm*1400mm;Machine voltage standard configuration: 380v,It can also be customized for 220v motors;Electric motor power standard configuration: 2.2kw,You can also customize the 3kw motor;Machine weight:Model 800:200 kg,Model 1200:250 kg.

The full complement of multi-functional ceramic cutter is the following:
1. Multi-functional desktop tile cutter blade 1
2. Ceramic open groove (anti-slip groove) 4 pieces (5mm)
3. 1 diamond chamfering wheel
4. 1 resin chamfering wheel
5. Diamond round corner wheel 1
6. Resin round corner wheel 1

Ceramic cutting machine accessories
The following is the use of multi-functional tile cutting machine accessories:
1. Diamond round corner wheel: grinding ceramic tile with circular grinding
2. Resin round corner wheel: fine grinding of ceramic tile
3. Diamond chamfering wheel: 45 degrees of grinding of polished tile
4. Resin chamfering wheel: polished tile 45 degrees fine grinding
5. Resin grooves: used in anti-slip grooves
6. Multi-functional ceramic tile cutter blade: used for cutting tiles

Usage of rotary disk of multi-functional tile cutter:
The rotary disk of the manual multi-purpose ceramic cutter can rotate 360 degrees, so as long as the front and back two screws are loose, you can rotate freely and then adjust the Angle you want to fix an Angle Degrees, you can reverse the Angle, and the motor can move right or left.

Foshan nanhai yongtao electromechanical equipment co., LTD specializes in the production of ceramic multi-function cutting machine, ceramic automatic cutting machine, small ceramic cutting machine, CNC ceramic cutting machine, and desktop ceramic cutting Machine, ceramic hand cutting machine, multi-functional ceramic cutting machine, manual ceramic cutting machine, 45 degree ceramic cutting machine, manual tile cutting machine, hand push tile cutting machine, hand push tile cutting machine, porcelain Brick table cutting machine, tile hand push cutter, electric tile cutting machine, manual floor tile cutting machine.

Mobile:0086-18665475362   Web site:www.chinayongtao.com Email:sales@chinayongtao.com
