Small stone cutting machine
YTYP-1200/7+14 Porcelain Tile Bullnose Machine

Small stone cutting machine

  Mar 05-2019

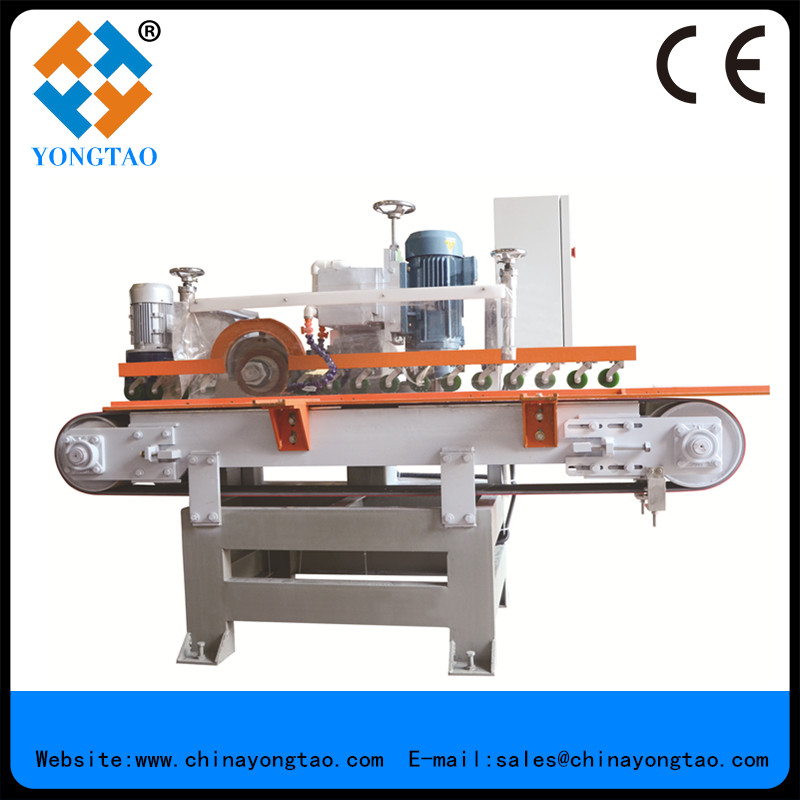

Small stone cutting machine
This machine is applied to cut stone corner line, stone yang horn line. Use stone cutting machine or infrared bridge cutting machine to cut the big slab, and then use stone cross cutting machine to cut a small piece. Put the small piece on full automatic stone line polishing machine for grinding. Notice that must set the small piece on the mould base. One mould base can make several corner line at one time, the daily output over 1000m.Processing material: artificial stone, agglomerated stone;Processing shape: yang horn line, corner line;Processing way: transverse and vertical cutting, cut off a small piece.

Technical Parameter:
Power of conveyor motor 0.75kw Power of cutting machine 5.5kw*2
Diameter of blade Φ200-250mm Width of conveyor belt 200mm
Size of machine 2.4m*1.1m*1.65m Weight 600kgs
Diameter of principal axis 60mm Voltage 380v

Small stone cutting machine

stone cutting machine

Product effect:

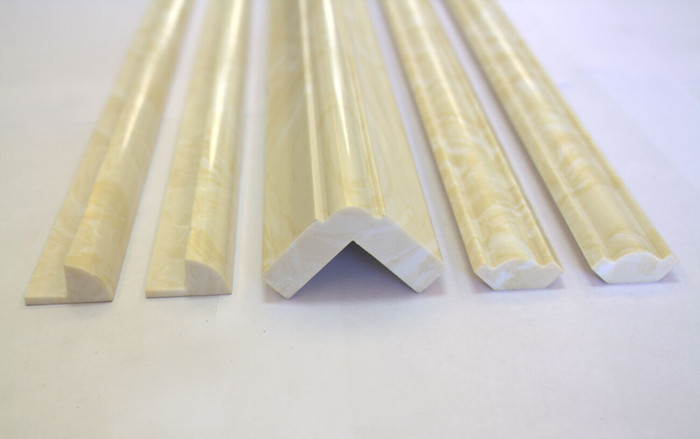

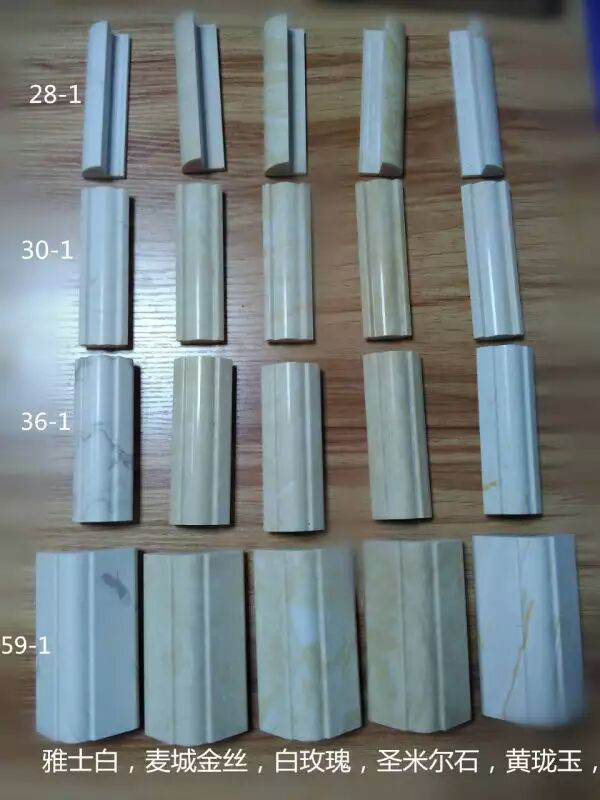

Stone decorative line

Stone Bullnose Ogee Moldings

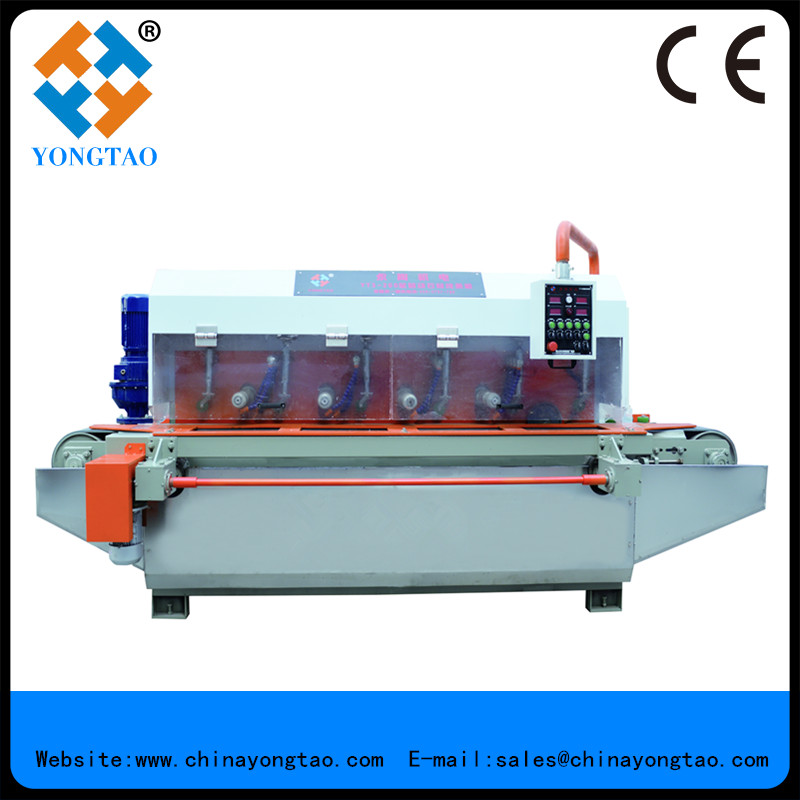

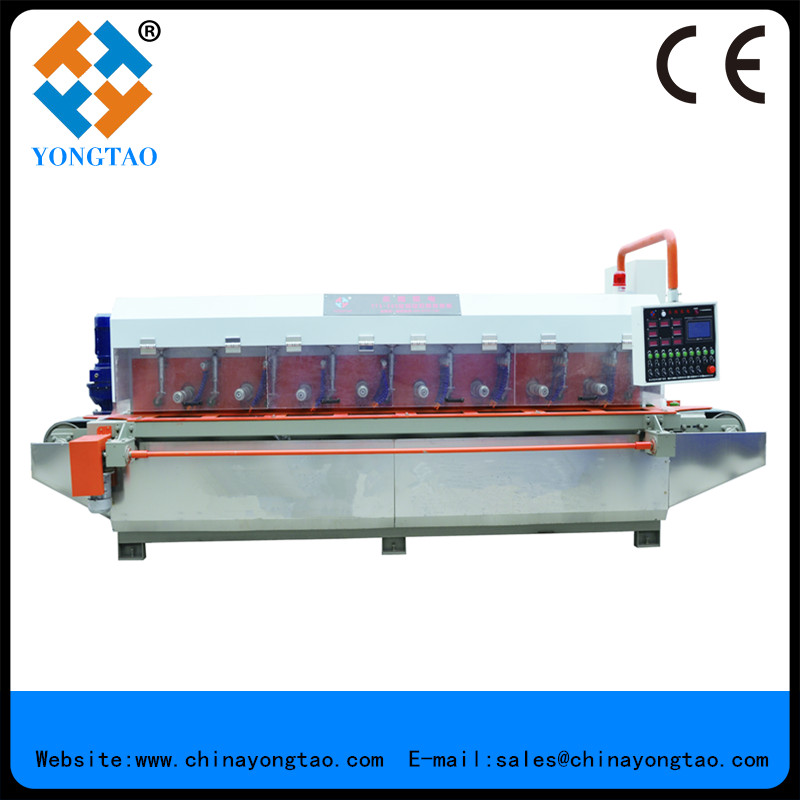

Stone yang horn line grinding machine (Full automatic stone line polishing machine)
Marble Molding Machine

Stone Profiling Machine

Foshan Nanhai Yongtao Machinery and Electric Equipment Co., Ltd specialized in producing stone edge grinding machine, marble edge grinding machine, stone line edge polishing machine, stone edge chamfering machine, stone line processing machinery, stone door frame produce machinery, stone window frame produce machinery, marble door frame produce machinery, marble window frame produce machinery, stone yang horn line produce machinery, stone corner line produce machinery, etc all kinds of stone processing machinery.For more detail, please feel free to contact us.

Mobile:0086-18665475362   Web site:www.chinayongtao.com Email:sales@chinayongtao.com
